Description
Cat bolts form a matched system with mating hardened washers and nuts to produce consistent, high clamping force
Specifications
| Locking Feature | None |
|---|---|
| Thread Size | 0.500 mm (0.02 in) |
| Thread Direction | RH |
| Class or Grade | SAE J429 Grade 8 (150 ksi) |
| Thread Size (Diameter × Pitch) | 1/2×13 mm |
| Bolt Length | 152.4 mm (6 in) |

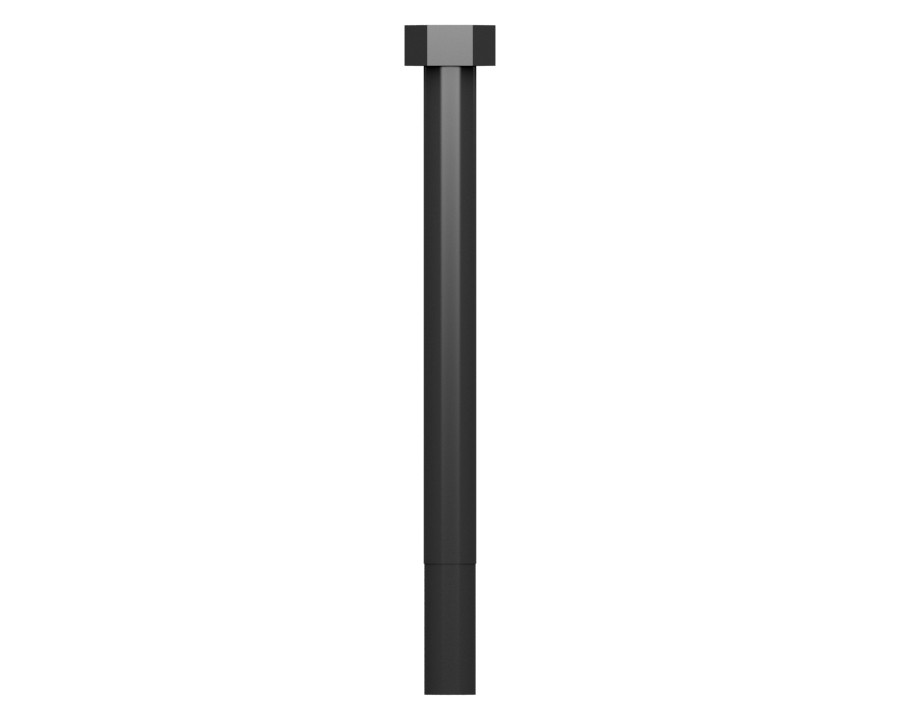

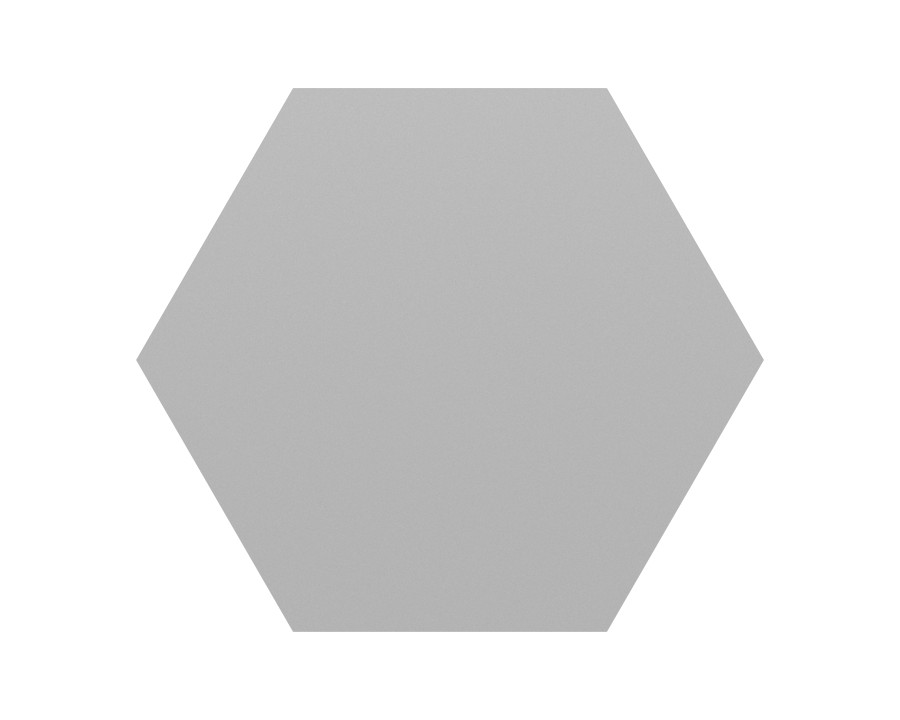

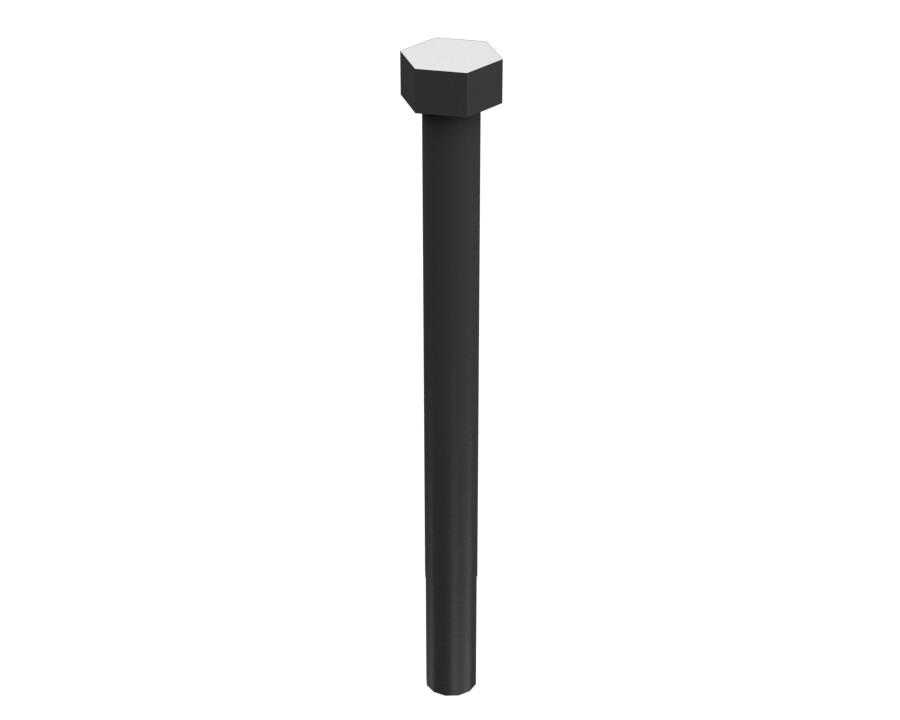

| Bolt Type | Hex Head Bolt |
| Coating | Zinc Phosphate and Oil |
| Handle Length | 120.65 mm (4.75 in) |
| Material | Alloy Zinc |
Compatible Equipment
- Generator Sets: 3516C, 3512B, 3512E, G3516, C4.4
- Track Loaders: 963, 824C, 995, 992, 994K
- Compactors: 815, 814, 816
- Engines: C7, C18
- Excavators: 3126, 3516B, 3512C, 3516E, 3508B, 330 L, 330B, 637E, 350 L, 637G
- Asphalt Pavers: AD45
- Skid Steer Loaders: 3126B
- Motor Graders: 16, 140G, 120, 16H, 3606
- Dozers: D7G, D9L, D4E, D7H, D8L, D11R, D11N, D10
- Wheel Loaders: 950, 980, 834, R1300G, R1700 II, R1700G, 966F, 992C, 992D, 938K, 924K, RM500B, 926M, 938M, R1600H
- Off-Highway Trucks: 785D, 789, 793D, 773, 772G, 771D, 777, 740B, 789D, 770G, 740, 793, 777D, 785, 735, 777E
Additional information
| Machine Model | 120, 140G, 16, 16H, 3126, 3126B, 330 L, 330B, 350 L, 3508B, 3512B, 3512C, 3512E, 3516B, 3516C, 3516E, 3606, 637E, 637G, 735, 740, 740B, 770G, 771D, 772G, 773, 777, 777D, 777E, 785, 785D, 789, 789D, 793, 793D, 814, 815, 816, 824C, 834, 924K, 926M, 938K, 938M, 950, 963, 966F, 980, 992, 992C, 992D, 994K, 995, AD45, C18, C4.4, C7, D10, D11N, D11R, D4E, D7G, D7H, D8L, D9L, G3516, R1300G, R1600H, R1700 II, R1700G, RM500B |
|---|---|
| Equipment Type | Excavators, Wheel Loaders, Track Loaders, Skid Steer Loaders, Dozers, Motor Graders, Off-Highway Trucks, Compactors, Asphalt Pavers, Engines, Generator Sets |
| Part Source | Genuine OEM |
