Description
Cat bolts form a matched system with mating hardened washers and nuts to produce consistent, high clamping force
Specifications
| Locking Feature | None |
|---|---|
| Thread Size | 0.3125 mm (0.012 in) |
| Thread Direction | RH |
| Class or Grade | SAE J429 Grade 8 (150 ksi) |
| Thread Size (Diameter × Pitch) | 5/16×18 mm |
| Bolt Length | 34.92 mm (1 3/8 in) |

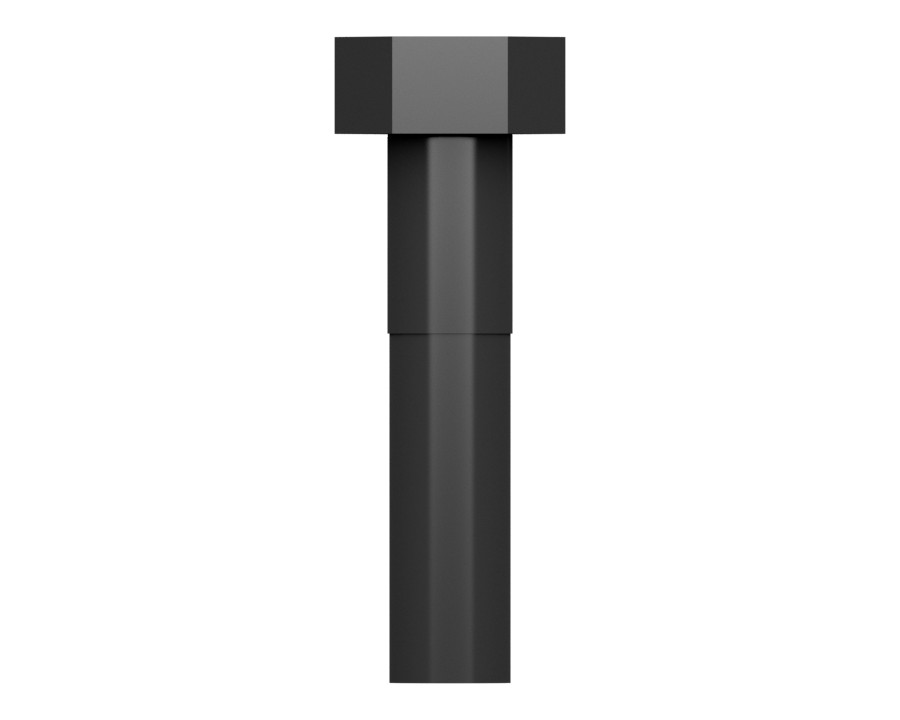

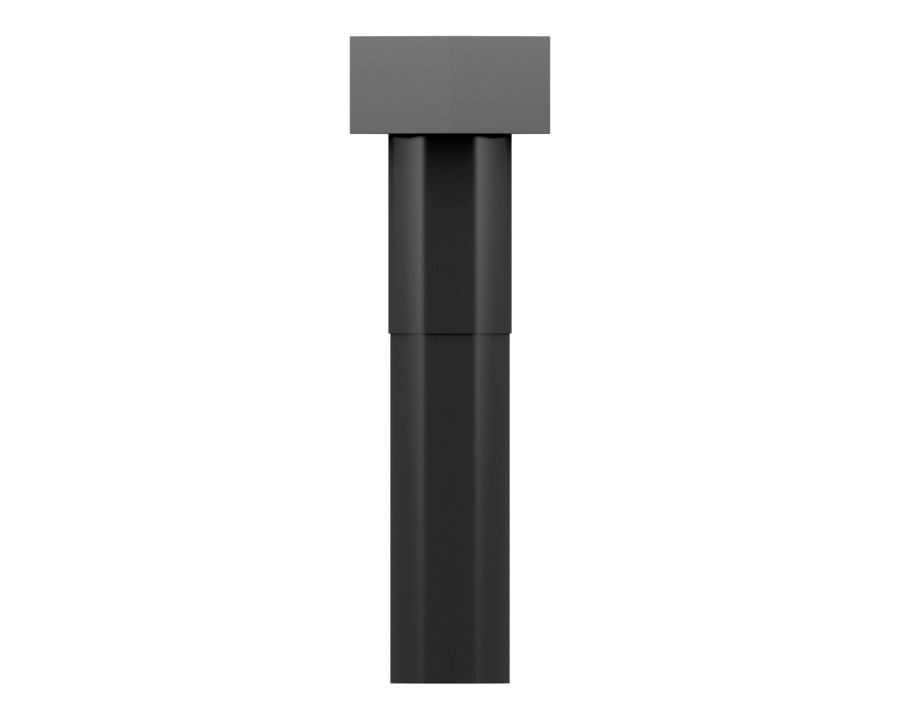

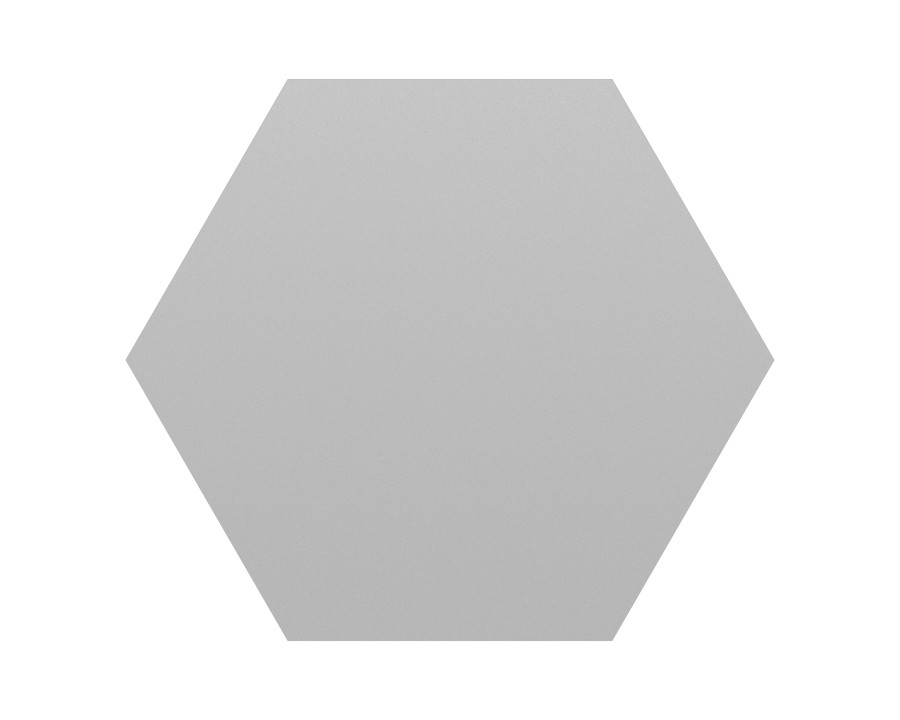

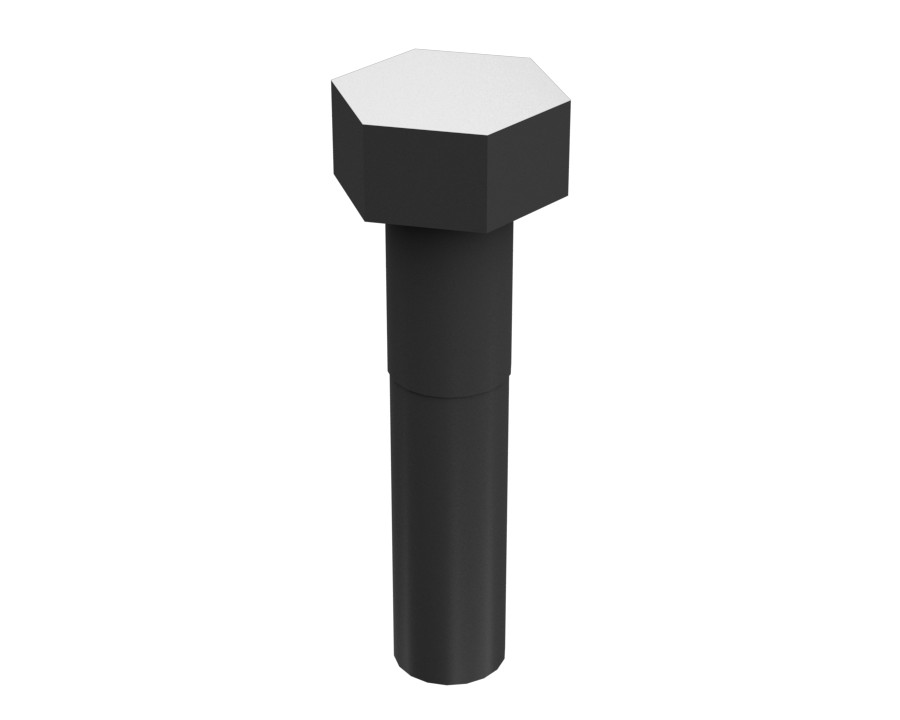

| Bolt Type | Hex Head Bolt |
| Coating | Zinc Phosphate and Oil |
| Handle Length | 12.7 mm (0.5 in) |
| Material | Steel |
Compatible Equipment
- Generator Sets: 3516C, C7.1, 3512B, C9, 3512E, 3406C, G3516, G3516C, 3406B, C4.4
- Track Loaders: 826H, 993, 826K, 824C, 824G, 834H, 953, 995, 963, 990K, 826G, 992, 816F, 994K
- Cold Planers: PL83, PM622, PM620, PL87
- Compactors: 814, 816, 815, 834K, 824K, 825K, C-15
- Engines: C15, C32, C13, C27, C11, C7, C18, C12
- Excavators: 3126, 390F L, 3456, 374F, 374, 3516B, 3512C, 3516E, 3508B, 395, 6040, 637E, 637K, 390F, 6020B, 6060, 6015B, 637G, 6015, 6030, 350 L, 374F L, 330B, 330 L
- Asphalt Pavers: AD63, AD45
- Skid Steer Loaders: 236D3, 232D, 249D3, 239D3, 232D3, 226D3, 3126B, 24
- Motor Graders: 3606, 120, 16, 140H, 140G, 12H
- Wheel Excavators: MD6310, MD6200, MD6250
- Dozers: D9R, D7G, D5H, D8L, D8N, D6R, D4E, D7R, D7H, D8T, D9N, D6G2 XL, D8R, D8, D10, D10T, D11R, D10R, D6G2 LGP, D9L, D7G2, D9, D11T, D11N, D10N, D11, D9T, D10T2, D6G
- Wheel Loaders: 988H, 988G, 972G, 834, R2900 XE, 950 GC, 988K, 950G, 980, 950, 980H, 950H, 966F, 966H, 910, 992C, R1300G, R1700 II, R2900G, 980G, 836, 962G, RM500B, R3000H, 972H, 988F, 986H, 992D
- Off-Highway Trucks: 777D, 797F, 773, 785D, 777, 789, 777E, 771D, 793F, 789D, 793D, 773D, 773E, 740B, 785, 775G, 793, 735, 740, 772G, 745, 770G, 740 GC, 745C
