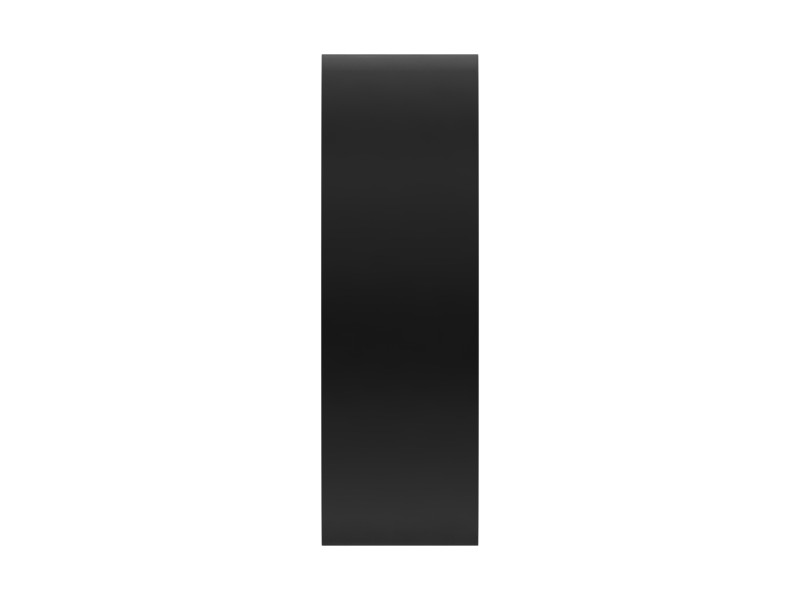

Description
Cat® sleeve bearings and bushings support rotating, oscillating and linear motion between machine systems. These bearings may include lubrication features such as internal and external grooves and cross holes for continuous, effective lubrication of components.
Specifications
| Rod Diameter | 105.00 mm (4.13 in) |
|---|---|
| Groove Outside Diameter – B | 110.00 mm (4.33 in) |
| Groove Width – A | 35.00 mm (1.38 in) |
| Ferrule Inside Diameter | 105.06 mm (4.136 in) |
| Unique Features | No |
| Ferrule Outside Diameter | 110 mm (4.331 in) |
| Type | Straight Sleeve |
| Material | Steel-backed Bronze PTFE Filled |
| Inside Diameter | 105 mm (4.13 in) |
| Outside Diameter | 110 mm (4.33 in) |
| Overall Length | 35 mm (1.38 in) |
| Internal Groove | None |
| External Groove | None |
| Cross Hole | None |
Compatible Equipment
- Generator Sets: 3512B
- Excavators: 320C, 320, 328D LCR, 325D L, 329E L, 320D2 L, 320D L, 323, 325C L, 330C L, 330D2 L, 325C, 325B L, 330D2, 329E, 325, 329D L, 333, 330 GC, 325B, 330GC, 320D2 GC, 325D, 323D2 L, 335F LCR, 320B, 320D FM, 323 GX, 320D2, 329D2 L, 330, 320D, 329D, 329D2
Additional information
| Machine Model | 320, 320B, 320C, 320D, 320D FM, 320D L, 320D2, 320D2 GC, 320D2 L, 323, 323 GX, 323D2 L, 325, 325B, 325B L, 325C, 325C L, 325D, 325D L, 328D LCR, 329D, 329D L, 329D2, 329D2 L, 329E, 329E L, 330, 330 GC, 330C L, 330D2, 330D2 L, 330GC, 333, 335F LCR, 3512B |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
