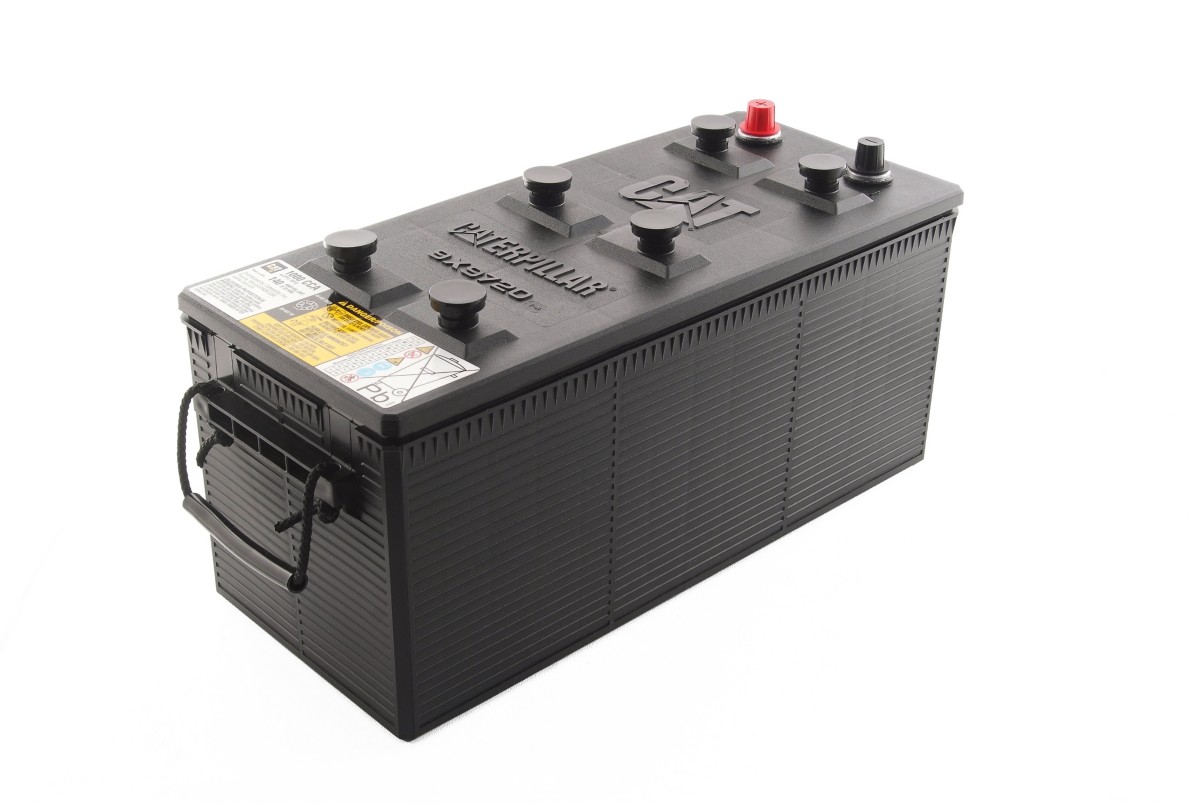

9X-9720 12V Premium Low Maintenance Battery
Cat® Premium High-Output Low-Maintenance Serviceable Dry Battery. (12 Volt, 1000 CCA, 4D BCI)
Description
This Cat low-maintenance, serviceable, premium high-output battery is specifically designed to withstand the most severe environmental conditions, with three times the run time of conventional batteries. It features a vibration-resistant design and charges quickly. It provides the starting power needed for a wide range of applications, especially in cold climates. Cat batteries meet higher standards than competitors in 100+ different performance tests, ensuring unmatched power. This is a dry-charged battery that must be activated by adding approximately 17 liters (18 quarts) of locally sourced electrolyte. This is a dry-charged battery that requires electrolyte to be added for activation.
Features
● 1000 Cold Cranking Amps
● 275 minutes reserve capacity
● 140 Amp-hour capacity
● Group 4D
● Forged SAE terminals
● Removable cover
● Reinforced housing
● Flame arrestor safety vents
Applications
● Heavy-duty applications
● Electric power
● Machines
● On-highway trucks and buses
Specifications
| CA | 1200 |
|---|---|
| Nominal Acid Volume to Fill | 15.9 QT |
| Nominal Acid Volume to Fill | 15 L |
| Grid Type | Hybrid Construction |
| Material | Polypropylene Plastic |
| Equipment Type | Truck |
| Voltage | 12 Volts |
| Cold Cranking Amps | 1000 CCA |
| Group Specifications | 4D |
| Battery Type | Dry |
| Maintenance Type | Low Maintenance |
| Terminal | SAE Post |
| Amp-Hour Capacity | 140 20 Hours |
| Reserve Capacity | 275 Minutes |
| Length | 496 mm (19.5 in) |
| Width | 218 mm (8.6 in) |
| Height | 223 (Post Bottom) mm (8.8 (Post Bottom) in) |
Compatible Equipment
- Generator Sets: 3406C, G3516, G3516C, 3406B, 3516C, 3512B, 3512E, C9
- Motor Graders: 3606, 140G
- Track Loaders: 963, 816F, 824C
- Engines: C15, C27, C32, C13, C7, C11, C18, C12
- Compactors: C-9, C-15
- Dozers: D7H, D7R, D7R II, D6M, D7G
- Excavators: 3512C, 637E, 3516B, 3508B, 3516E, 3456
- Off-Highway Trucks: 740, 735
Additional information
| Machine Model | 140G, 3406B, 3406C, 3456, 3508B, 3512B, 3512C, 3512E, 3516B, 3516C, 3516E, 3606, 637E, 735, 740, 816F, 824C, 963, C-15, C-9, C11, C12, C13, C15, C18, C27, C32, C7, C9, D6M, D7G, D7H, D7R, D7R II, G3516, G3516C |
|---|---|
| Equipment Type | Excavators, Track Loaders, Dozers, Motor Graders, Off-Highway Trucks, Compactors, Engines, Generator Sets |
| Part Source | Genuine OEM |
