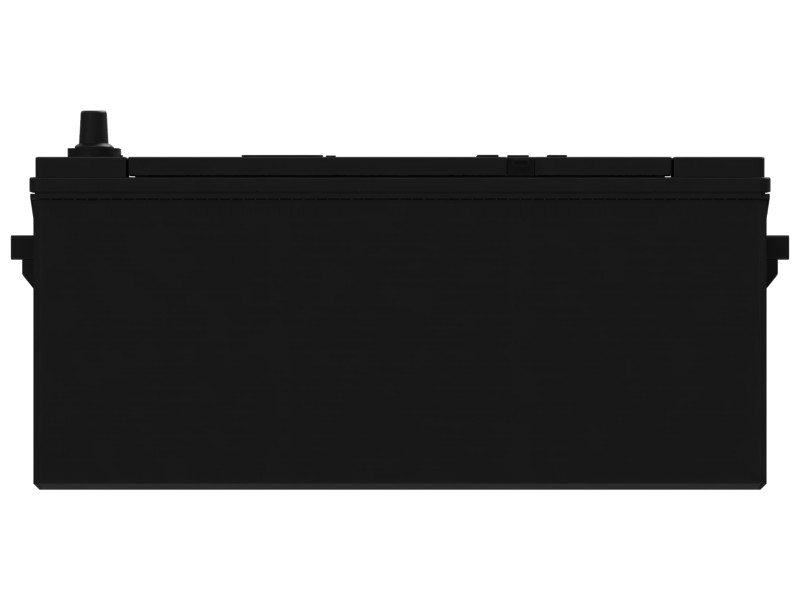

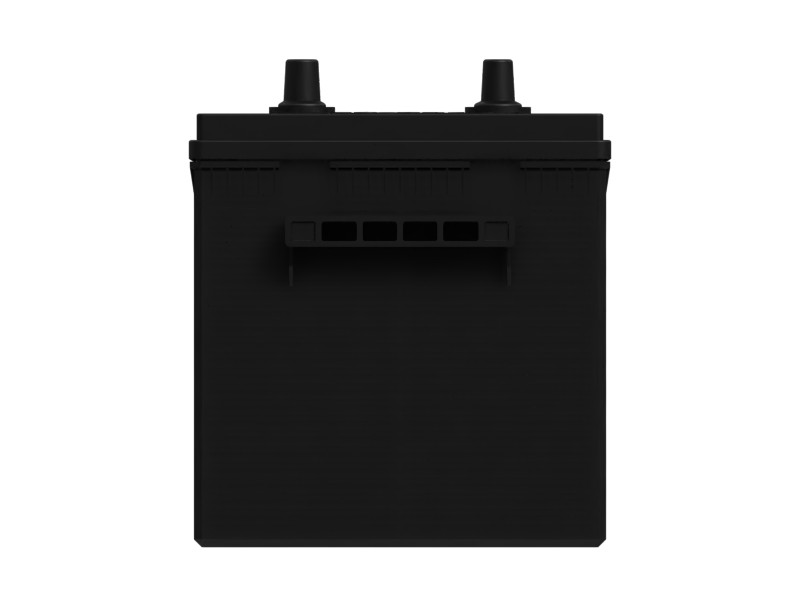

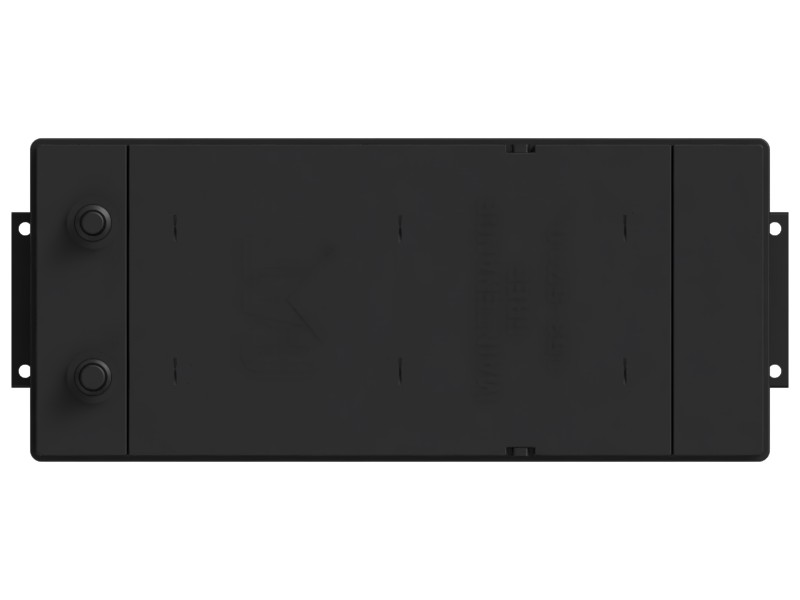

153-5710 12V Heavy-Duty Maintenance-Free Battery
Cat® part 153-5710 is a 12 volt 4D BCI heavy-duty maintenance-free serviceable wet battery with 1400 CCA capacity that delivers premium high output power in extremely harsh environments.
Description
This Cat maintenance-free heavy-duty battery is designed to handle the harshest environments and lasts three times longer than an ordinary battery. It features a vibration-resistant design and can be charged quickly. It provides the starting power needed for a wide range of applications, especially in cold climates. Cat batteries are held to a higher standard than competing brands and undergo 100 different performance tests to help ensure best-in-class power.
Features
- 1400 Cold Cranking Amps
- 425 Minute Reserve Capacity
- 200 Amp-Hour Capacity
- Group 4D
- Forged SAE terminals
- Removable cover
- Reinforced housing
- Flame arrestor safety vents
Applications
- Construction and mining
- Electric power
- Machine
- On-highway trucks and buses
Specifications
| Grid Type | Calcium-Lead Alloy Grid Design |
|---|---|
| Serviceable Vent Caps | Serviceable Vent Caps |
| Material | Polypropylene Plastic |
| Application | Oil Resistance |
| Equipment Type | Industrial |
| Voltage | 12 Volts |
| Cold Cranking Amps | 1400 CCA |
| Group Specifications | 4D |
| Battery Type | Wet |
| Maintenance Type | Maintenance-Free |
| Terminal | SAE Post |
| Amp-Hour Capacity | 200 20 Hours |
| Reserve Capacity | 425 Minutes |
| Length | 489 mm (19.3 in) |
| Width | 218 mm (8.6 in) |
| Height | 252 (Top of Post) mm (9.9 (Top of Post) in) |
Compatible Equipment
- Generator Sets: 3512B, 3516C, G3516, 3512E, 3406C, G3516C, C7.1, 3406B, C9, C4.4
- Track Loaders: 972, 973K, 982, 992, 824C, 993
- Cold Planers: PM620, PM622
- Engines: C7, C11, C32, C15, C13, C27, C18, C12
- Excavators: 3456, 390D L, 390F L, 374F, 374D L, 374, 3512C, 3516B, 395, 6015, 3516E, 3508B, 120 GC, 385C L, 390F, 385C FS, 374F L, 385C, 365C, 365C L, 6015B, 390D, 3101
- Asphalt Pavers: AD63, AD45, AD30
- Skid Steer Loaders: 24
- Motor Graders: 140 GC, 140K, 16H, 120, 16M, 12K, 12H, 14M, 18, 140H, 160K, 14, 16, 16M3
- Wheel Excavators: MD6200
- Compactors: C-15, C-9
- Dozers: D11, D9, D10, D6T, D11T, D6T LGP, D10T2, D10R, D10T, D6R III, D9T, D6N, D6R II, D9R, D7R, D7E, D7R II, D6R, D7G2, D6R XL, D6R LGP, D7G
- Wheel Loaders: 950 GC, 980, RM500B, 980L, 950H, 966H, 962L, 950L, 990H, 972L, 966K, 972H, 966L, 950, RM400, 966, R2900G, R3000H, R1700 XE
- Off-Highway Trucks: 735, 730, 777, 740, 772G, 770G, 775G, 773F, 777D, 773E, 725, 771D, 773D, 777E, 740B, 773
