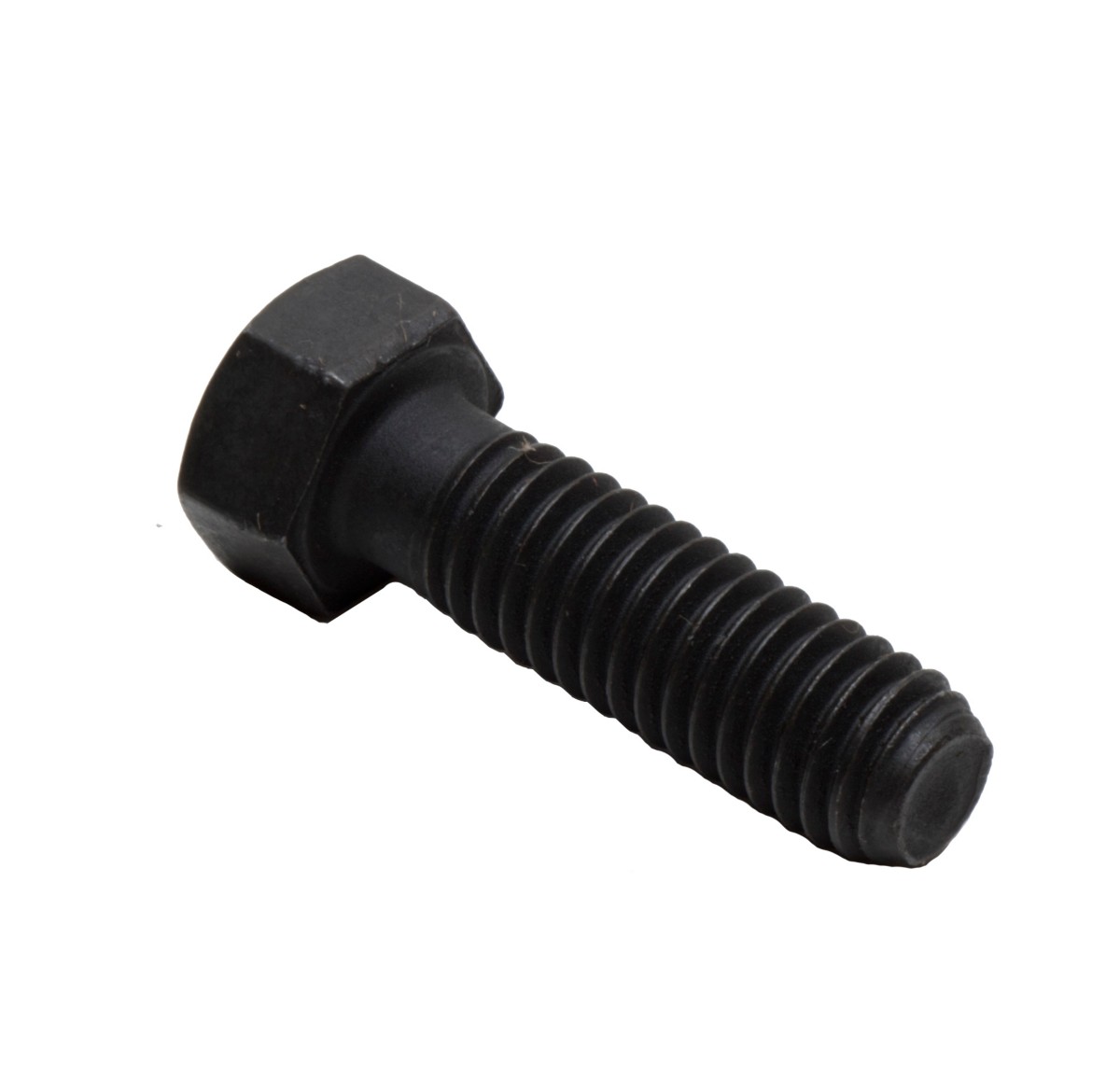

Description
Cat bolts form a matched system with mating hardened washers and nuts to produce sustained high clamping force
Specifications
| Surface Finish | Phosphate and Oil Coating |
|---|---|
| Head Width – 5 | 0.94 in |
| Head Height – 4 | 0.48 in |
| Bolt Overall Length – 3 | 2 in |
| Handle Length – 2 | 0.50 in |
| Thread Size (Diameter × Pitch) | 5/8×11 mm |
| Class or Grade | SAE J429 Grade 8 (150 ksi) |
| Thread Direction | RH |
| Thread Size | 0.625 mm (0.025 in) |
| Locking Feature | None |
| Material | Carbon Steel |
| Bolt Length | 50.8 mm (2 in) |
| Bolt Type | Hex Head Bolt |
| Coating | Zinc Phosphate + Oil |
| Handle Length | 12.7 mm (0.5 in) |
| Thread | Coarse Thread UNC |
| Thread Size (in – TPI) | 5/8 – 11 in |
Compatible Equipment
- Generator Sets: 3512B, 3516C, 3406C, G3516, G3516C, 3406B
- Motor Graders: 160K, 12H, 120H, 140H, 140K, 140G, 12K, 3606
- Compactors: C13B, CS-533C
- Engines: C32, C15, C11, C27, C13, C18
- Dozers: D11T, D10T, D10R, D11R, D7G
- Excavators: 3516B, 3508B, 3512C, 3456
- Wheel Loaders: R1700 II, R1700G
- Off-Highway Trucks: 740, 777D, 773D, 773E, 735
- Asphalt Pavers: AD45
Additional information
| Machine Model | 120H, 12H, 12K, 140G, 140H, 140K, 160K, 3406B, 3406C, 3456, 3508B, 3512B, 3512C, 3516B, 3516C, 3606, 735, 740, 773D, 773E, 777D, AD45, C11, C13, C13B, C15, C18, C27, C32, CS-533C, D10R, D10T, D11R, D11T, D7G, G3516, G3516C, R1700 II, R1700G |
|---|---|
| Equipment Type | Excavators, Wheel Loaders, Dozers, Motor Graders, Off-Highway Trucks, Compactors, Asphalt Pavers, Engines, Generator Sets |
| Part Source | Genuine OEM |
