Description

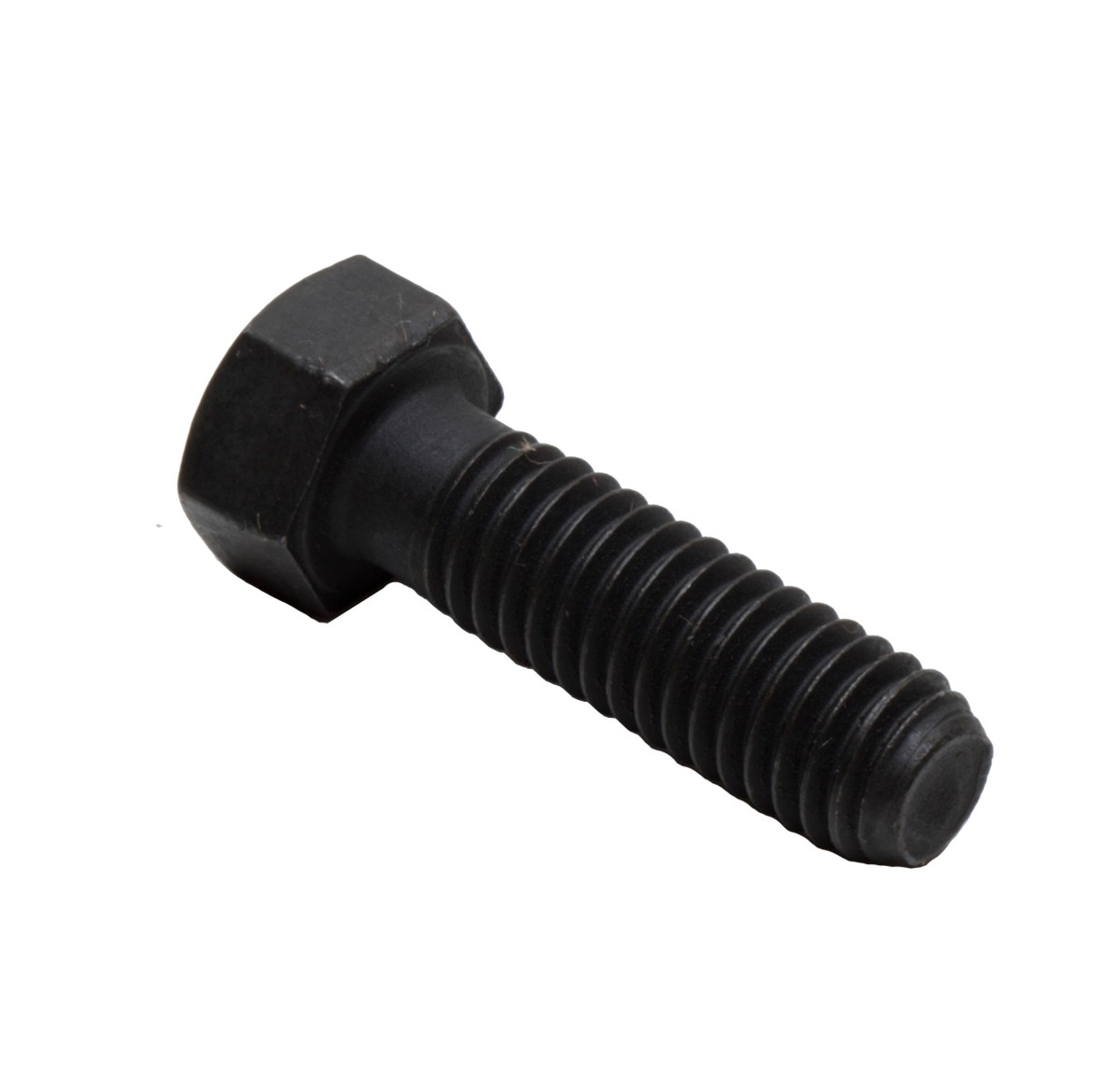

Cat bolts form a matched system with mating hardened washers and nuts to produce sustained high clamping force
Specifications
| Thread Size | 0.500 mm (0.02 in) |
|---|---|
| Thread Direction | RH |
| Thread Size (Diameter × Pitch) | 1/2×13 mm |
| Class or Grade | SAE J429 Grade 8 (150 ksi) |
| Locking Feature | None |
| Head Height – 4 | 0.39 in |
| Head Width – 5 | 0.75 in |
| Handle Length – 2 | 2.25 in |
| Bolt Overall Length – 3 | 3 1/2 in |
| Surface Finish | Phosphate and Oil Coating |
| Bolt Length | 88.9 mm (3.5 in) |
| Bolt Type | Hex Head Bolt |
| Coating | Zinc Phosphate + Oil |
| Handle Length | 57.15 mm (2.25 in) |
| Thread | Coarse Thread UNC |
| Thread Size (in – TPI) | 1/2 – 13 in |
Compatible Equipment
- Generator Sets: 3406C, 3516C, G3516, 3512B, 3406B
- Track Loaders: 992, 993, 990K, 826H, 834H, 824C, 826G, 824G
- Compactors: C9.3B, C-15
- Engines: C15, C27, C32, C18
- Excavators: 3456, 390F L, 3512C, 395, 6015, 6030, 3516B, 6040, 3508B, 390F, 6015B, 6020B, 3516E, 3101
- Asphalt Pavers: AD63
- Skid Steer Loaders: 24
- Motor Graders: 12H, 140G, 140H, 120H, 140K, 160K
- Wheel Excavators: MD6250, MD6310
- Dozers: D10, D10R, D6T, D11R, D11T, D10T2, D10T, D11, D10N, D7H, D9N, D8N
- Wheel Loaders: 980G, 836, 980H, 988H, 988F, 988G, R2900G, 990H
- Off-Highway Trucks: 789D, 777, 773, 785D, 777D, 735, 773F, 777E, 740, 793D, 785, 789, 775G, 745C, 740 GC, 745
Additional information
| Machine Model | 120H, 12H, 140G, 140H, 140K, 160K, 24, 3101, 3406B, 3406C, 3456, 3508B, 3512B, 3512C, 3516B, 3516C, 3516E, 390F, 390F L, 395, 6015, 6015B, 6020B, 6030, 6040, 735, 740, 740 GC, 745, 745C, 773, 773F, 775G, 777, 777D, 777E, 785, 785D, 789, 789D, 793D, 824C, 824G, 826G, 826H, 834H, 836, 980G, 980H, 988F, 988G, 988H, 990H, 990K, 992, 993, AD63, C-15, C15, C18, C27, C32, C9.3B, D10, D10N, D10R, D10T, D10T2, D11, D11R, D11T, D6T, D7H, D8N, D9N, G3516, MD6250, MD6310, R2900G |
|---|---|
| Equipment Type | Excavators, Wheel Excavators, Wheel Loaders, Track Loaders, Skid Steer Loaders, Dozers, Motor Graders, Off-Highway Trucks, Compactors, Asphalt Pavers, Engines, Generator Sets |
| Part Source | Genuine OEM |
