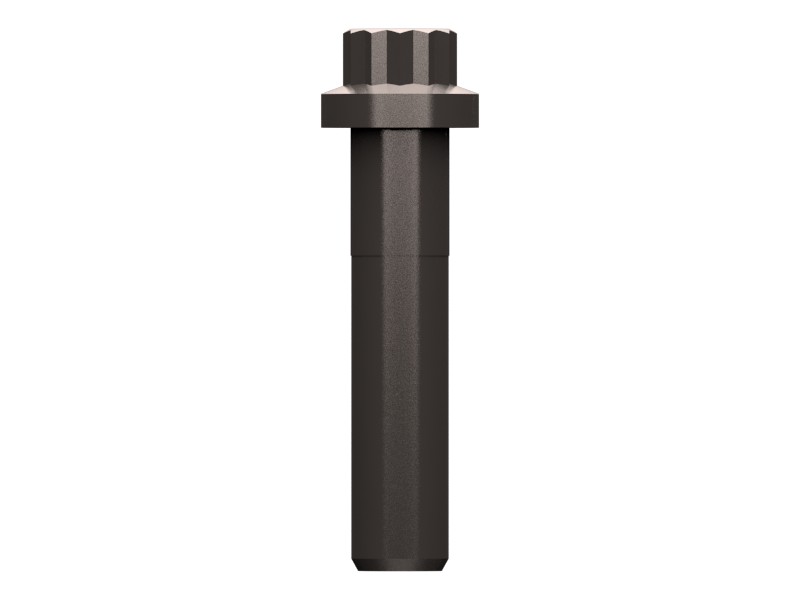

9X-8271 12-Point Head Bolt
Wholesale only · Full payment before shipment · Send your machine nameplate to confirm fitment
Description
Cat® fastener parts are designed for specific applications based on size, strength, clamp load and past performance, information other manufacturers do not have. They are carefully selected to last until machine rebuild or end of life. Non-Cat hardware and fasteners may appear to fit your machine, but no one else knows your equipment the way we do.
These bolts are commonly used in engines and driveline. 12-point head bolts have high fatigue performance and fit designs that do not have enough clearance for hex head bolts.
Features
- Cat fasteners are manufactured to precise technical specifications for durability, reliable performance, and high efficiency
- Strength and Quality – Fasteners meet or exceed ISO, ASTM, ASME, and SAE requirements.
- Cat bolts, nuts, and washers are specially designed to work together as a system to maximize clamping force.
- Coatings meet the special requirements of different applications (RoHS compliant).
Applications
Cat bolts form a high-performance system with mating hardened washers and nuts to produce consistent, high clamping force. You can trust Cat fasteners to help you build, maintain or rebuild in most machine and shop applications worldwide.
Specifications
| Locking Feature | None |
|---|---|
| Thread Direction | RH |
| Bolt Size | M10 mm (0.3937 in) |
| Class or Grade | Cat/ISO 898-1 Class 11.9 |
| Thread Size | M10 mm (0 in) |
| Type | 12-Point Head Bolt |
| Bolt Length | 45 mm (1.772 in) |
| Bolt Type | 12 Point Head |
| Coating | Zinc Flake |
| Thread Size (Diameter × Pitch) | M10X1.5 mm |
| Handle Length | 13 mm (0.512 in) |
| Flange Diameter | 16 mm |
Compatible Equipment
- Motor Graders: 160K, 120, 140K, 12K, 140 GC
- Generator Sets: 3512E, 3516C
- Track Loaders: 963, 953
- Cold Planers: TH55-E70
- Compactors: C9.3B
- Engines: C175-16
- Dozers: D6N, D6R III, D5H, D6M, D10
- Excavators: 120 GC
- Wheel Loaders: R1700K
- Off-Highway Trucks: 796 AC, 797F, 793F, 798 AC, 745, 794 AC, 740, 793, 773, 740 GC
Additional information
| Machine Model | 120, 120 GC, 12K, 140 GC, 140K, 160K, 3512E, 3516C, 740, 740 GC, 745, 773, 793, 793F, 794 AC, 796 AC, 797F, 798 AC, 953, 963, C175-16, C9.3B, D10, D5H, D6M, D6N, D6R III, R1700K, TH55-E70 |
|---|---|
| Equipment Type | Excavators, Wheel Loaders, Track Loaders, Dozers, Motor Graders, Off-Highway Trucks, Compactors, Cold Planers, Engines, Generator Sets |
| Part Source | Genuine OEM |
