Description

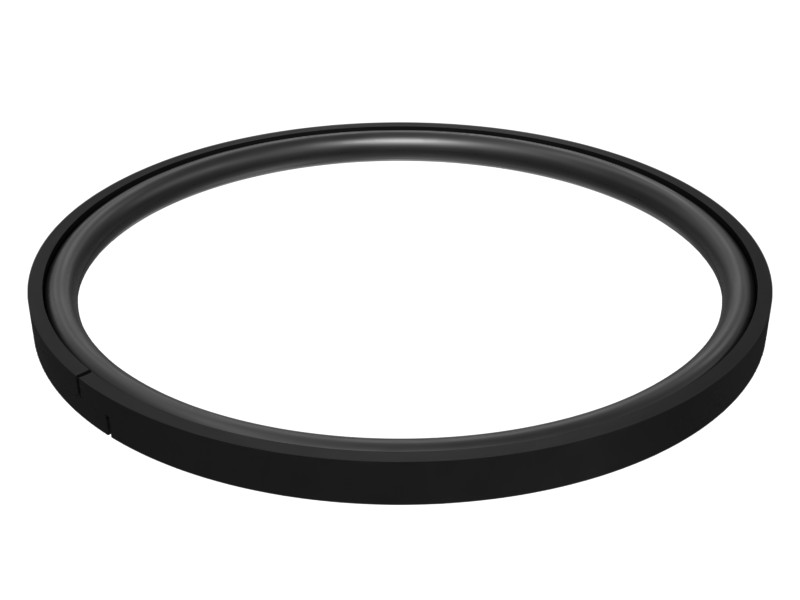

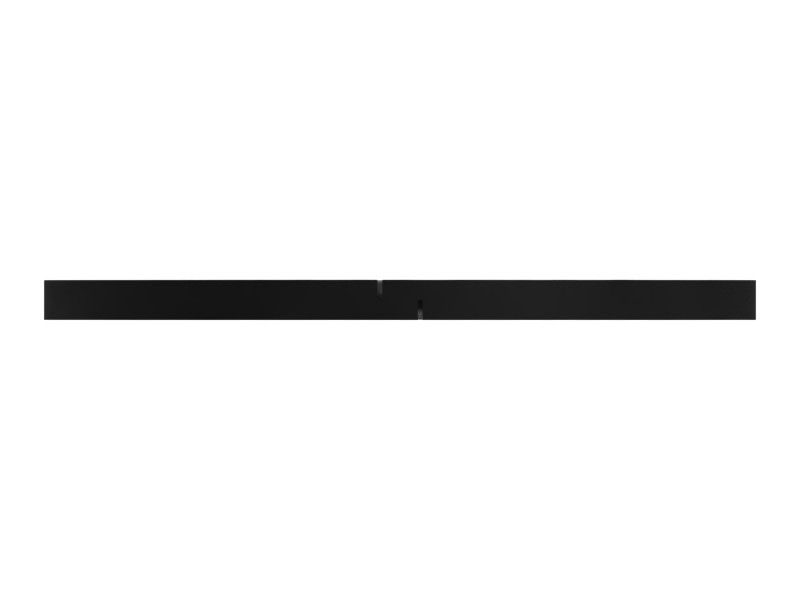

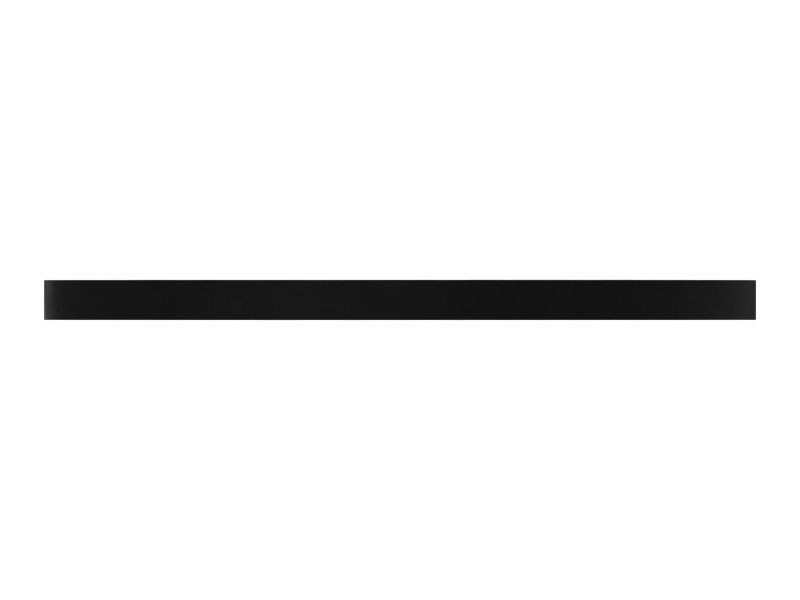

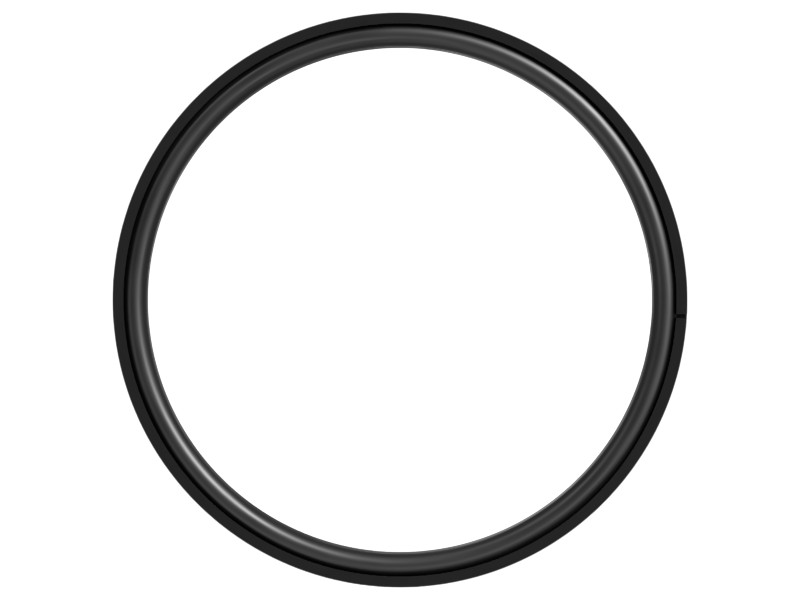

A two-piece seal consisting of a piston ring and an expander, used to prevent oil from flowing between the rod end and the cover end of the cylinder. The piston seal ring is usually made of Teflon, and nylon material can be selected when the pressure is greater than 3000 psi (20670 kPa). Expanders of various shapes are made of nitrile rubber.
Specifications
| Groove Diameter – B (+/- 0.0762 mm) | 150.62 mm |
|---|---|
| Hole Diameter | 170.00 mm (6.69 in) |
| Groove Width – A (+/- 0.0508 mm) | 9.63 mm |
| Groove Diameter – B (+/- 0.003 in) | 5.93 in |
| Groove Width – A (+/- 0.002 in) | 0.38 in |
| Seal Shape | Type 3 |
Compatible Equipment
- Track Loaders: 972, 834H
- Wheel Excavators: M320, M322D
- Excavators: 330D L, 349F L, 325D L, 336D L, 330D, 325D, 330 L, 324D L, 325B L, 336E, 336E L, 330C L, 336D2 L, 330B, 330C, 325C, 324D, 336E LN, 329D L, 336E LH, 328D LCR, 345C, 349D L, 350 L, 345B, 349E L, 345D L, 349E L VG, 345C L, 349E, 385C, 345D, 340D L, 340D2 L, 385C L, 336D, 336D2, 349D2 L, 349D2, 349D
- Wheel Loaders: 966 GC, 966M, 972M, 980M
Additional information
| Machine Model | 324D, 324D L, 325B L, 325C, 325D, 325D L, 328D LCR, 329D L, 330 L, 330B, 330C, 330C L, 330D, 330D L, 336D, 336D L, 336D2, 336D2 L, 336E, 336E L, 336E LH, 336E LN, 340D L, 340D2 L, 345B, 345C, 345C L, 345D, 345D L, 349D, 349D L, 349D2, 349D2 L, 349E, 349E L, 349E L VG, 349F L, 350 L, 385C, 385C L, 834H, 966 GC, 966M, 972, 972M, 980M, M320, M322D |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
