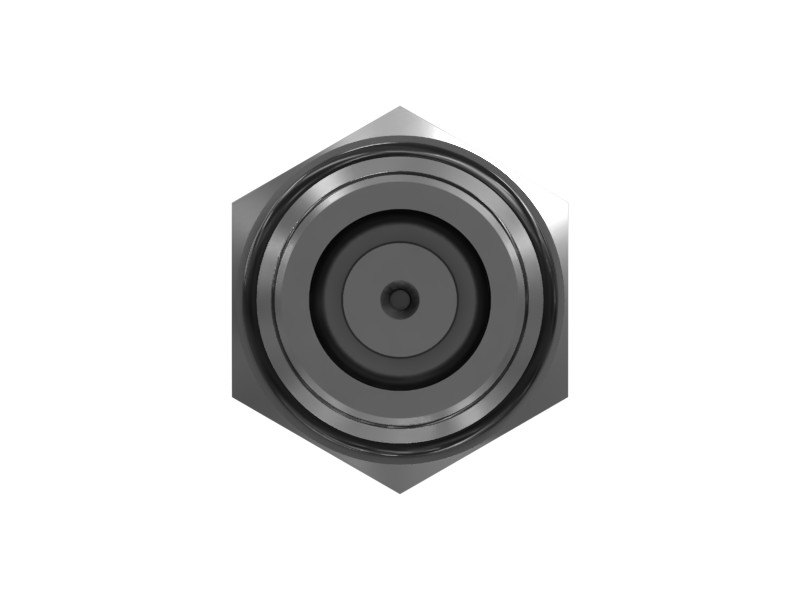

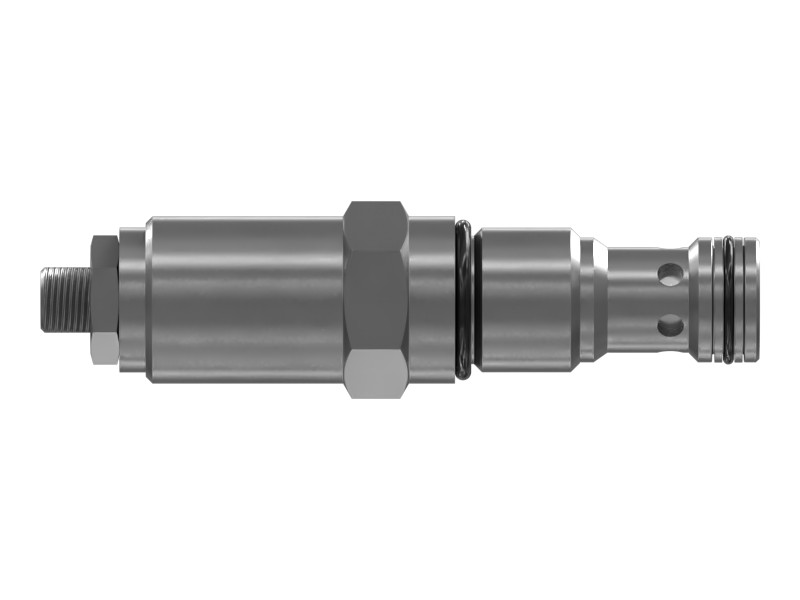

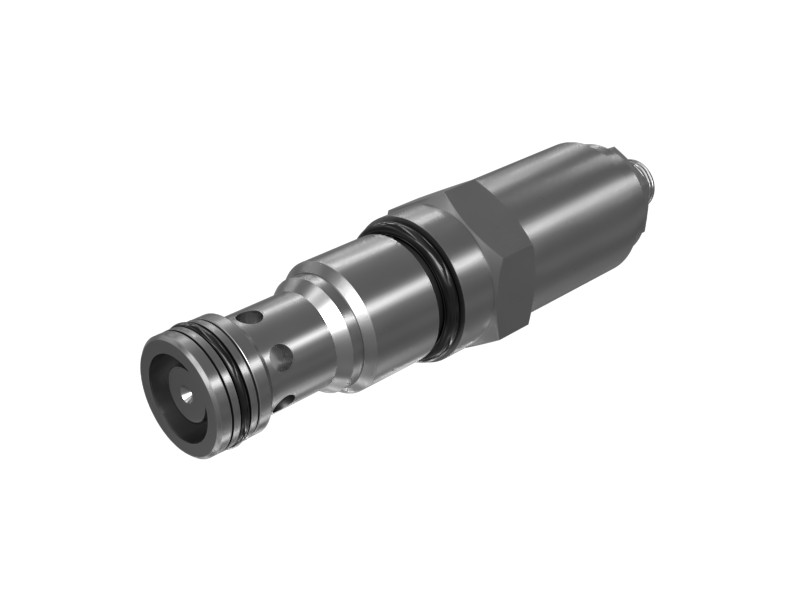

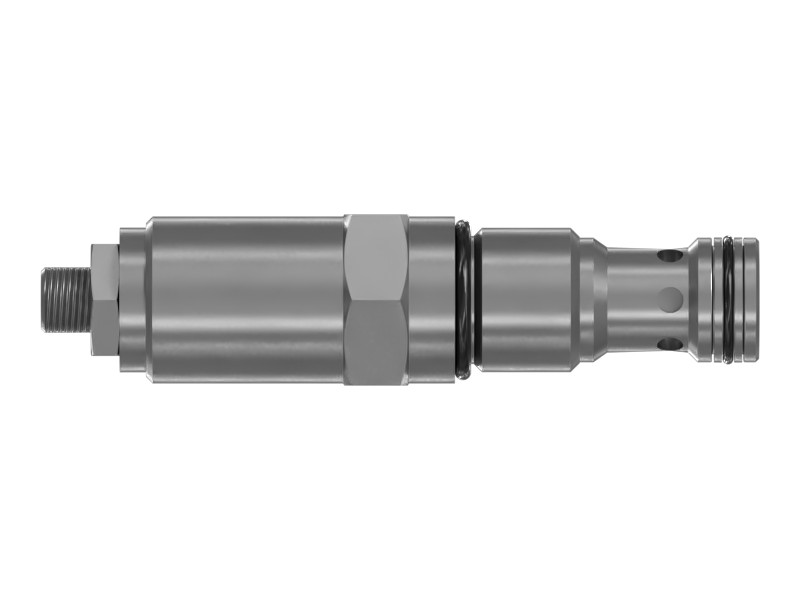

9T-7419 Relief Valve Assembly
Cat® Relief Valve Assembly (Direct Acting) (Steering Cylinder Crossover)
Description
The Cat relief valve assembly releases fluid when a safety threshold is reached to prevent excessive pressure buildup.
Features
- Relief valve with seals and backup rings
- Direct acting
- Valve Material: Steel
- Flow Rate: 21 L/min
- Pressure: 29100 kPa
- Thread Size: 7/8-14
- External Hex Size: 26 mm (1.02 in)
Applications
Steering valve assembly for Cat machines. Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Material | Carbon Steel |
|---|---|
| Material Description | Steel |
| Length | 117 mm (4.6 in) |
| Hex Size | 26 mm (1.02 in) |
| Thread Size | 7/8-14 in |
Compatible Equipment
- Track Loaders: 834H, 826K, 826G, 824G, 826H
- Compactors: 825K, 824K, 816, 815, 814
- Wheel Loaders: 980G, 980H, 988H, 988G
