Description

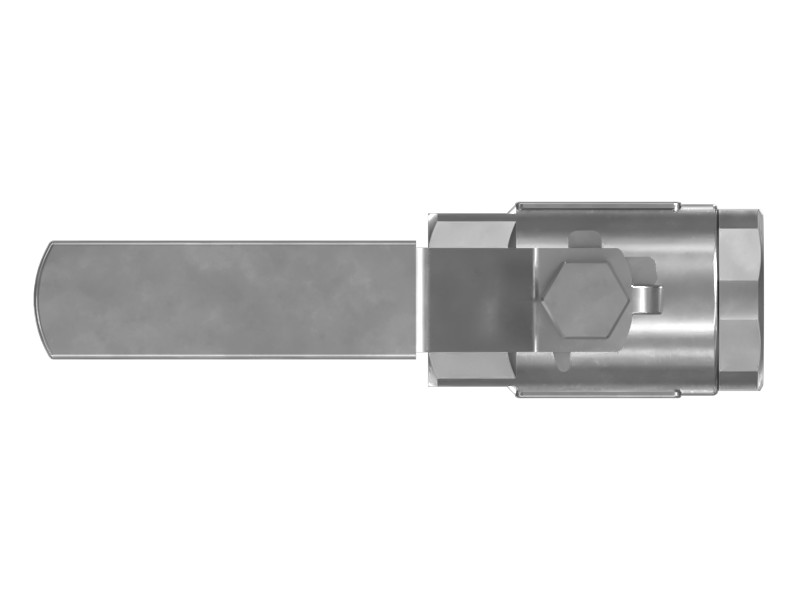

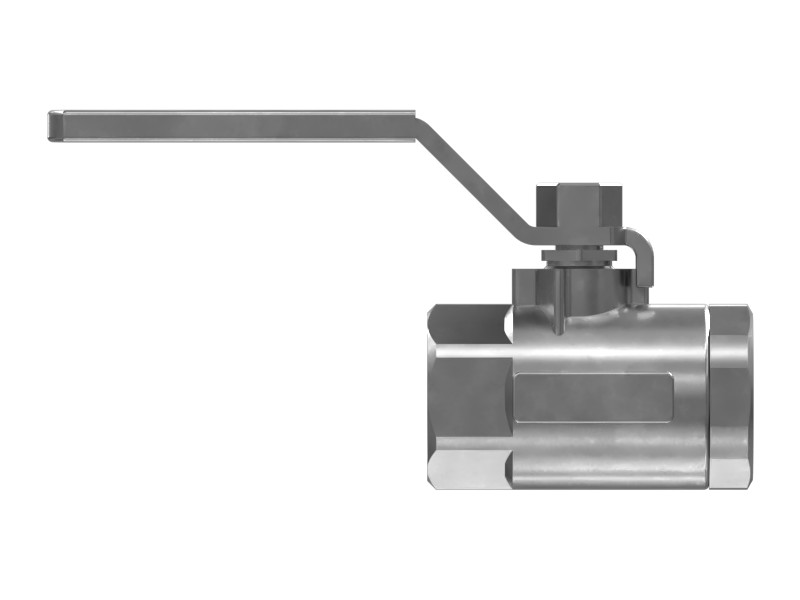

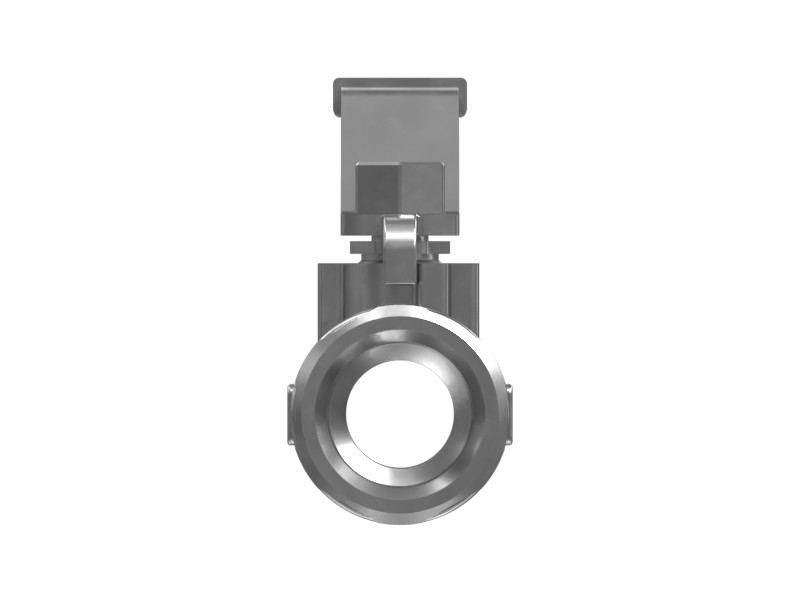

A ball valve is an in-line component that can manually shut off fluid flow when the handle is turned a quarter turn.
Features
- Manually operated ball valve
- Steel valve body
- Thread size: 3/4-14 PTF-extra short (2X)
- Maximum Operating Pressure: 600 psi (4137 kPa)
- Operating Temperature Range: -17°C to 176°C (0°F to 350°F)
Applications
Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Length | 62 (Body) mm (2.42 (Body) in) |
|---|---|
| Thread Size | 3/4-14 NPT (2X) in |
Compatible Equipment
- Generator Sets: 3406C, G3516C, G3516, 3406B, 3512B
- Cold Planers: PL61
- Engines: C15, C32, C27, C18
- Dozers: D7E
- Excavators: 3516B, 3508B, 3456
