Description
Cat® fastener parts are designed for specific applications based on size, strength, clamp load and past performance, information other manufacturers do not have. They are carefully selected to last until machine rebuild or end of life. Non-Cat hardware and fasteners may appear to fit your machine, but no one else knows your equipment the way we do.
These screws can create their own threads. Plastic thread-forming screws form the thread shape without cracking the plastic joint nut. There are several types of metal thread forming, ranging from screws used for sheet metal to screws capable of making threads in structural steel.
Features
- Cat fasteners are manufactured to precise specifications for durability, reliability and high efficiency
- Strength and Quality – Fasteners meet or exceed ISO, ASTM, ASME and SAE requirements.
- Cat bolts, nuts and washers are specifically designed to work together as a system to maximize clamping force.
- Coating meets the special requirements of different applications (RoHS compliant).
Applications
Cat bolts form a high-performance system with mating hardened washers and nuts to produce consistent, high clamping force. You can trust Cat fasteners to help you build, maintain or rebuild in most machine and shop applications worldwide.
Specifications
| Material | Corrosion Preventative Fluid |
|---|---|
| Screw Length – A | 25 mm (0.98 in) |
| Head Height | 3 mm (0.12 in) |

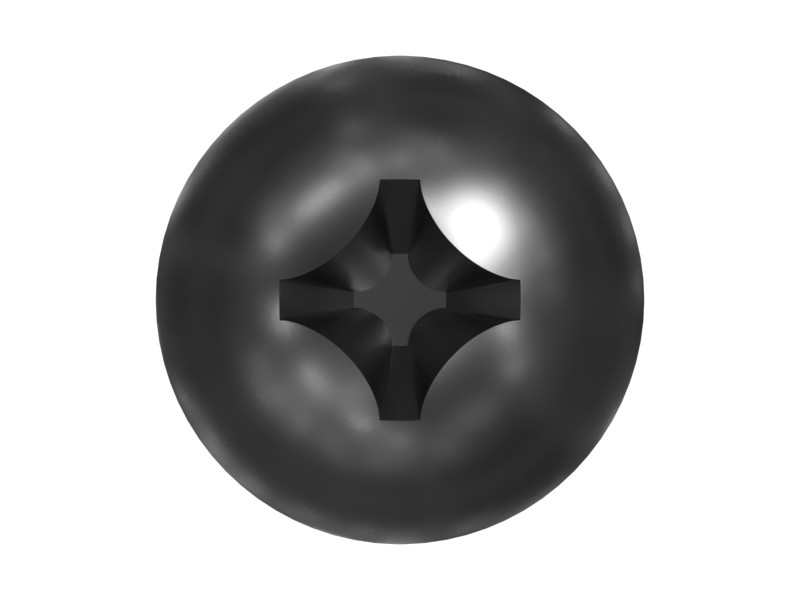

| Groove Type | Phillips |
| Head Diameter | 8 mm (0.32 in) |
| Material Description | Steel |
| Screw Type | Self-Tapping Screw – Pan Head |
| Drive Chain | #2 in |
| Coating | Zinc Flake |
| Thread Size | #8 in |
Compatible Equipment
- Motor Graders: 16M, 14, 14M, 16, 18, 16M3
- Generator Sets: C4.4
- Track Loaders: 824C, 992
- Compactors: CB1.8, CB1.7, 814, CB-335D, CB-34B, CB-334D, CB-44B, CS-533C, CS-583D, CB-14, CB-24B, CC-34B, CB2.9, CB-66B, CB2.7, CB-36B, CB2.5, CB2.5 GC, CC2.7 GC, CB2.7 GC, CB-64B
- Dozers: D10R
- Excavators: 416E, 621H
- Wheel Loaders: 924K, 938K, 836, 926M, 938M, 950, 992C, R1700 II
- Off-Highway Trucks: 797F, 772G, 793F, 770G, 775G, 773F
- Asphalt Pavers: AP300F, AP355F
- Skid Steer Loaders: 24
Additional information
| Machine Model | 14, 14M, 16, 16M, 16M3, 18, 24, 416E, 621H, 770G, 772G, 773F, 775G, 793F, 797F, 814, 824C, 836, 924K, 926M, 938K, 938M, 950, 992, 992C, AP300F, AP355F, C4.4, CB-14, CB-24B, CB-334D, CB-335D, CB-34B, CB-36B, CB-44B, CB-64B, CB-66B, CB1.7, CB1.8, CB2.5, CB2.5 GC, CB2.7, CB2.7 GC, CB2.9, CC-34B, CC2.7 GC, CS-533C, CS-583D, D10R, R1700 II |
|---|---|
| Equipment Type | Excavators, Wheel Loaders, Track Loaders, Skid Steer Loaders, Dozers, Motor Graders, Off-Highway Trucks, Compactors, Asphalt Pavers, Generator Sets |
| Part Source | Genuine OEM |
