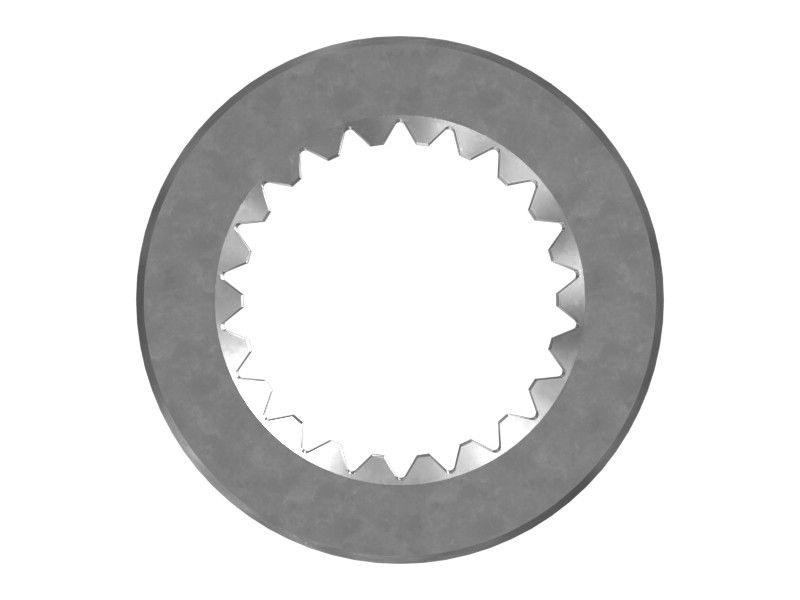

115-0591 37.05 mm OD Bushing
Cat® 21.87 mm ID, 22-tooth internal spline steel bushing for use in auxiliary drives
Description
The bushing is used with the compressor drive shaft on Cat machines.
Features
- Material: Steel
- Number of Internal Spline Teeth: 22
- Outside Diameter: 37.05 mm (1.4586 in)
- Inside Diameter: 21.87 mm (0.861 in)
- Length: 40 mm (1.5748 in)
Applications
Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Material | — |
|---|---|
| Ferrule Outside Diameter | 36 mm (1.417 in) |
| Ferrule Inside Diameter | 26 mm (1.024 in) |
| Cross Hole | Yes |
| Overall Length | 40 mm (1.575 in) |
| Length | 40 mm (1.5748 in) |
| Outside Diameter | 37.05 mm (1.4586 in) |
| Inside Diameter | 21.87 mm (0.861 in) |
Compatible Equipment
- Generator Sets: G3516C, 3516C, 3512B
- Excavators: 3516E, 3512C, 3516B
- Off-Highway Trucks: 785, 789, 797F, 785D, 789D, 793F, 777D, 777, 793D, 793
