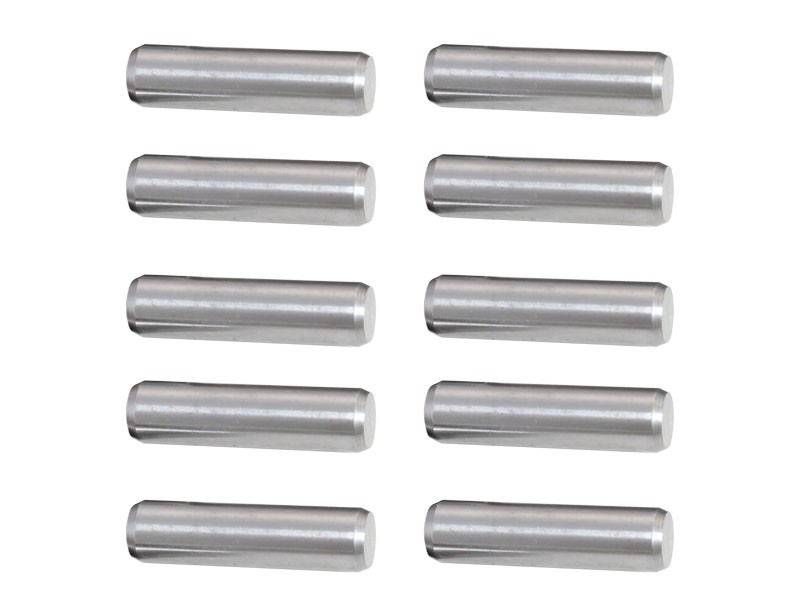

Description
Solid pins are used to precisely align and locate components, preventing them from sliding, moving, or rotating during operation. They are commonly used in combination with other fasteners (such as bolts, screws, and nuts) to provide additional support and stability.
Attributes
- Provides a 25° chamfer for easier insertion of the pin into the component and reduced risk of component damage.
- Precise fit.
Applications
The solid dowel pin is used to align and locate two mating components.
Specifications
| Material | Steel(1E1042A) |
|---|---|
| Pin Length | 47.5 mm (1.87 in) |
| Pin Outside Diameter | 12.54 mm (0.494 in) |
| Pin Type | Solid |
Compatible Equipment
- Dozers: D4G, D3G, D4E, D5G
