Description

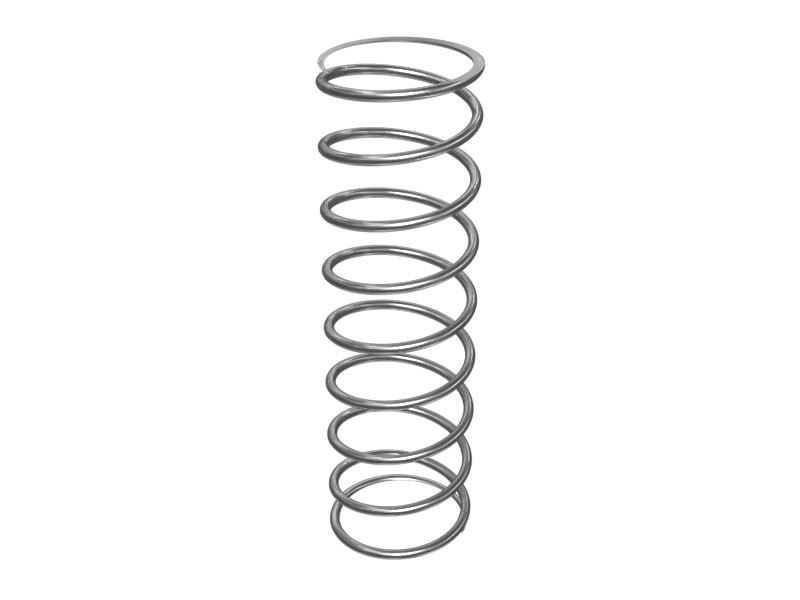

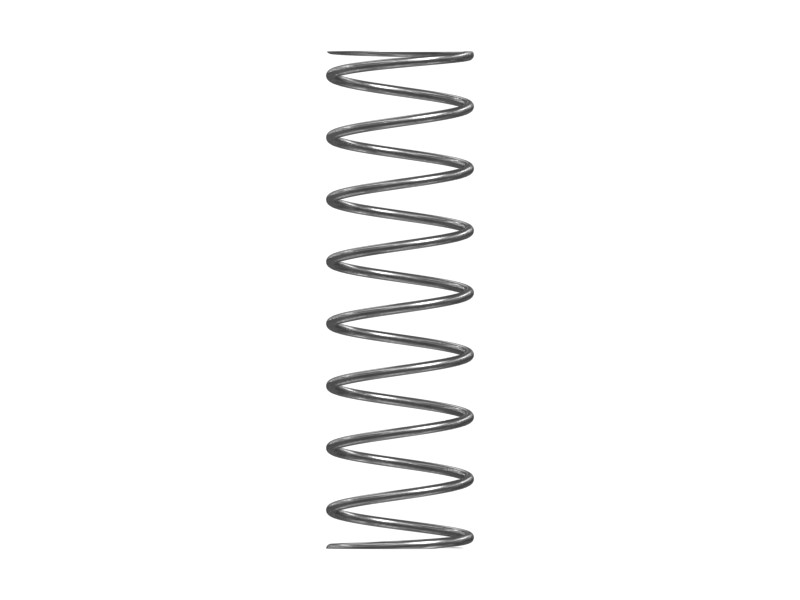

The check valve spring provides the force necessary for the check valve to operate properly. It acts as a mechanical spring, applying pressure to the valve disc or ball to hold it closed when fluid flows in the opposite direction. When fluid flows in the desired direction, the spring compresses, allowing the valve to open so fluid can pass.
Features
- 10 total coils, 8 active coils
- Coil direction is right-hand
- Solid length of 230 in
Applications
The check valve spring is used to ensure reliable sealing and prevent any unwanted reverse flow, enabling the check valve to operate more efficiently and safely.
Specifications
| Material | Carbon Steel |
|---|---|
| Inside Diameter | 7.54 mm (0.3 in) |
| Outside Diameter | 8.71 mm (0.34 in) |
| Thickness | 0.58 mm (0.02 in) |
| Weight | 0.01 kg (0.01 lb) |
Compatible Equipment
- Generator Sets: 3516C, 3512B, 3512E, G3516
- Motor Graders: 3606
- Track Loaders: 824C, 992
- Compactors: 814
- Engines: C175-16
- Dozers: D6G2 LGP, D7G, D6G, D7G2, D6G2 XL
- Excavators: 3516E, 3516B, 3512C, 3508B, 637E, 621G, 330 L, 330B, 637G, 657G
- Wheel Loaders: R2900G, 988F, 992C, R1700G, R1700 II, 836, 950, 966F
- Off-Highway Trucks: 777
- Asphalt Pavers: AD45, AD63
Additional information
| Machine Model | 330 L, 330B, 3508B, 3512B, 3512C, 3512E, 3516B, 3516C, 3516E, 3606, 621G, 637E, 637G, 657G, 777, 814, 824C, 836, 950, 966F, 988F, 992, 992C, AD45, AD63, C175-16, D6G, D6G2 LGP, D6G2 XL, D7G, D7G2, G3516, R1700 II, R1700G, R2900G |
|---|---|
| Equipment Type | Excavators, Wheel Loaders, Track Loaders, Dozers, Motor Graders, Off-Highway Trucks, Compactors, Asphalt Pavers, Engines, Generator Sets |
| Part Source | Genuine OEM |
