Description
Cat bolts form a matched system with mating hardened washers and nuts to produce consistent, high clamping force
Specifications
| Thread Size | 0.500 mm (0.02 in) |
|---|---|
| Locking Feature | None |
| Thread Direction | RH |
| Class or Grade | SAE J429 Grade 8 (150 ksi) |
| Thread Size (Diameter × Pitch) | 1/2×13 mm |
| Bolt Length | 95.25 mm (3 3/4 in) |

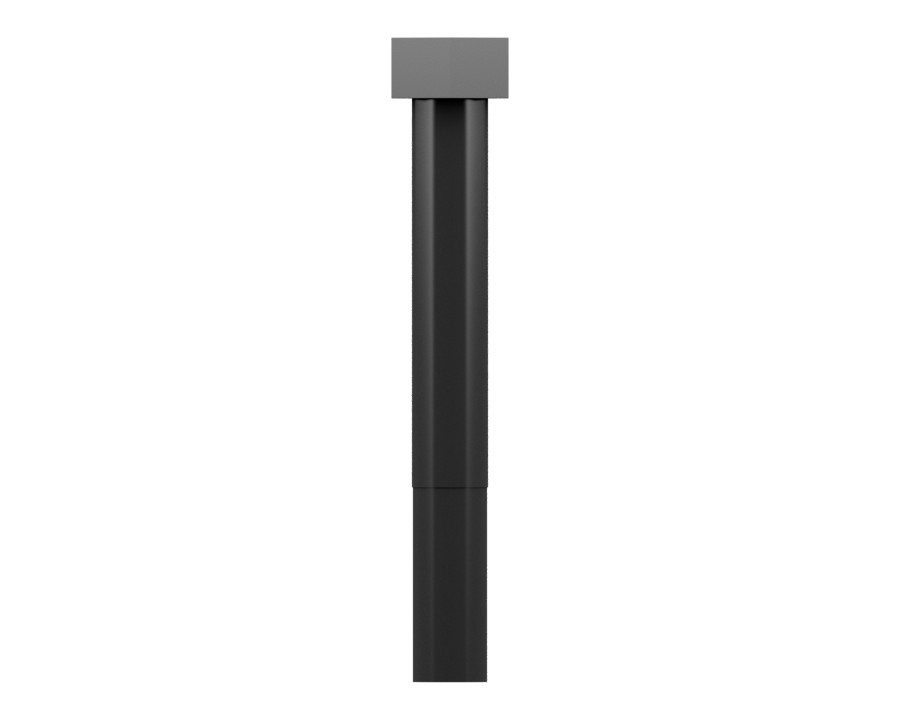

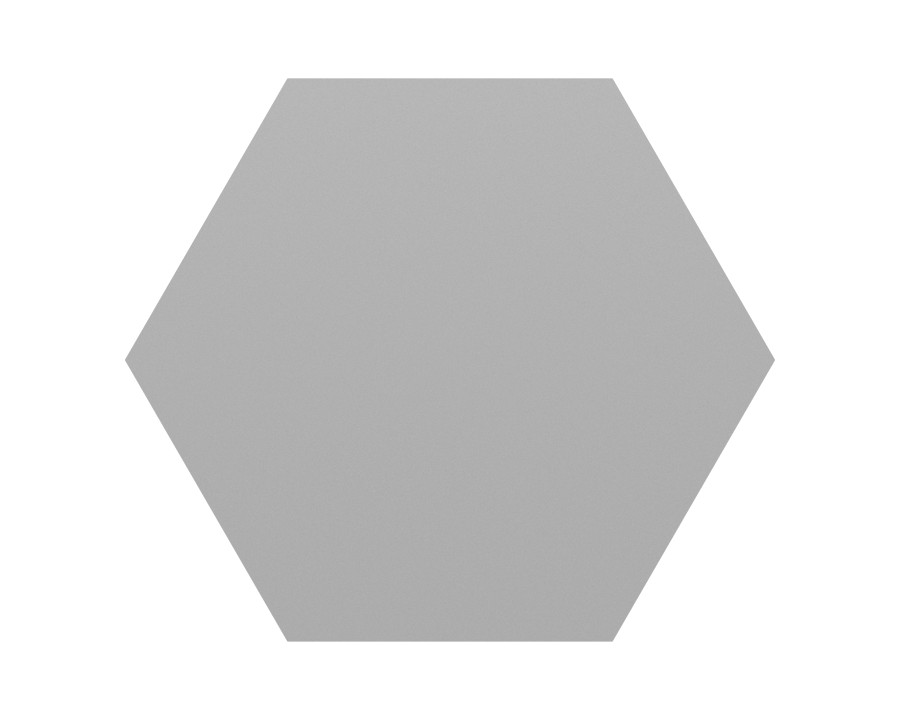

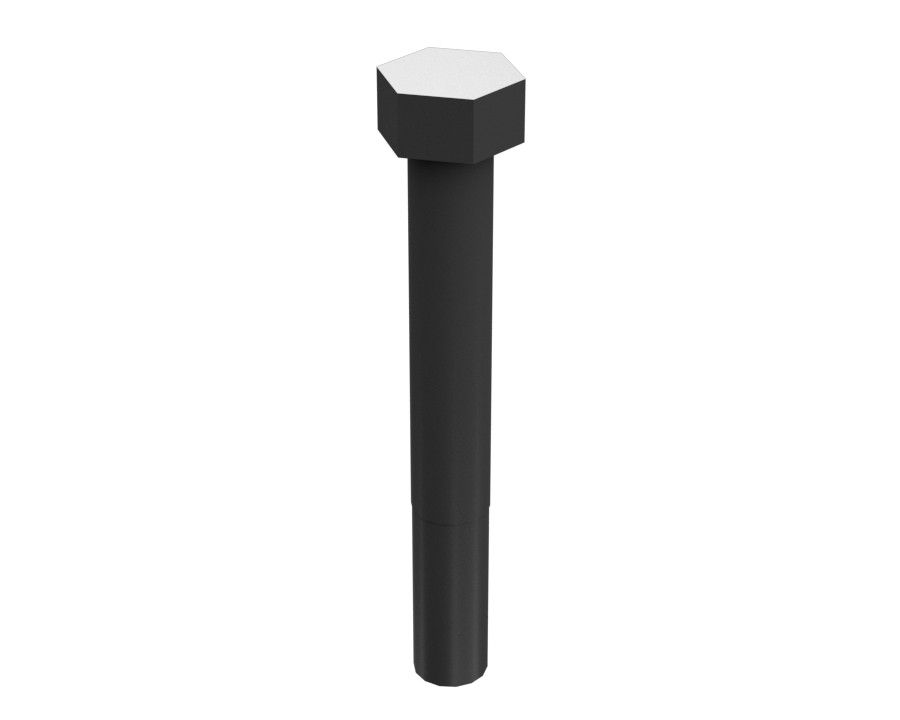

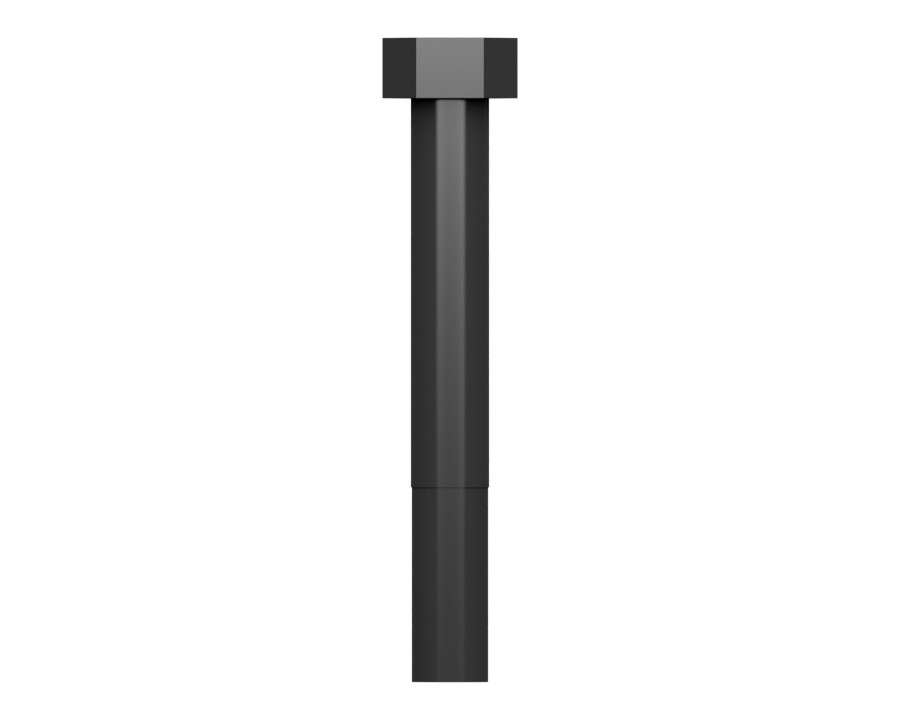

| Bolt Type | Hex Head Bolt |
| Coating | Zinc Plated |
| Handle Length | 63.5 mm (2.5 in) |
| Material | Steel |
Compatible Equipment
- Generator Sets: 3512E, 3512B, G3516, C7.1
- Track Loaders: 994K, 824C, 995
- Cold Planers: TH255C
- Compactors: 834K, CS-533C
- Engines: C32, C27
- Excavators: 3456, 637K, 657G, 621G, 637G, 637E, 3516B, 3508B, 621H, 350 L, 3512C, 3516E, 325B L
- Asphalt Pavers: AD30, AP-600D, AD45, AD63
- Motor Graders: 160K, 12K, 120, 12H, 120H, 140H, 140K
- Wheel Excavators: MD6250, MD6310
- Dozers: D10T, D10R, D10N, D8R, D9R, D5H, D7G, D7R, D9T, D6R, D6G2 XL, D4E, D8N, D9N, D7H, D7R II, D6G2 LGP, D6G, D9
- Wheel Loaders: 988K, 836, 924K, 926M, 966F, 938M, 938K, 992C, 988F, 992D, 834, R2900 XE, R1700G, R1700 II, R1300G, R2900G, R3000H
- Off-Highway Trucks: 770G, 785D, 794 AC, 796 AC, 772G, 777, 789D, 775G, 793D, 773, 773E, 773D, 777D, 771D, 777E, 725, 789, 773F, 785, 730, 798 AC, 7495
Additional information
| Machine Model | 120, 120H, 12H, 12K, 140H, 140K, 160K, 325B L, 3456, 350 L, 3508B, 3512B, 3512C, 3512E, 3516B, 3516E, 621G, 621H, 637E, 637G, 637K, 657G, 725, 730, 7495, 770G, 771D, 772G, 773, 773D, 773E, 773F, 775G, 777, 777D, 777E, 785, 785D, 789, 789D, 793D, 794 AC, 796 AC, 798 AC, 824C, 834, 834K, 836, 924K, 926M, 938K, 938M, 966F, 988F, 988K, 992C, 992D, 994K, 995, AD30, AD45, AD63, AP-600D, C27, C32, C7.1, CS-533C, D10N, D10R, D10T, D4E, D5H, D6G, D6G2 LGP, D6G2 XL, D6R, D7G, D7H, D7R, D7R II, D8N, D8R, D9, D9N, D9R, D9T, G3516, MD6250, MD6310, R1300G, R1700 II, R1700G, R2900 XE, R2900G, R3000H, TH255C |
|---|---|
| Equipment Type | Excavators, Wheel Excavators, Wheel Loaders, Track Loaders, Dozers, Motor Graders, Off-Highway Trucks, Compactors, Asphalt Pavers, Cold Planers, Engines, Generator Sets |
| Part Source | Genuine OEM |
