Description

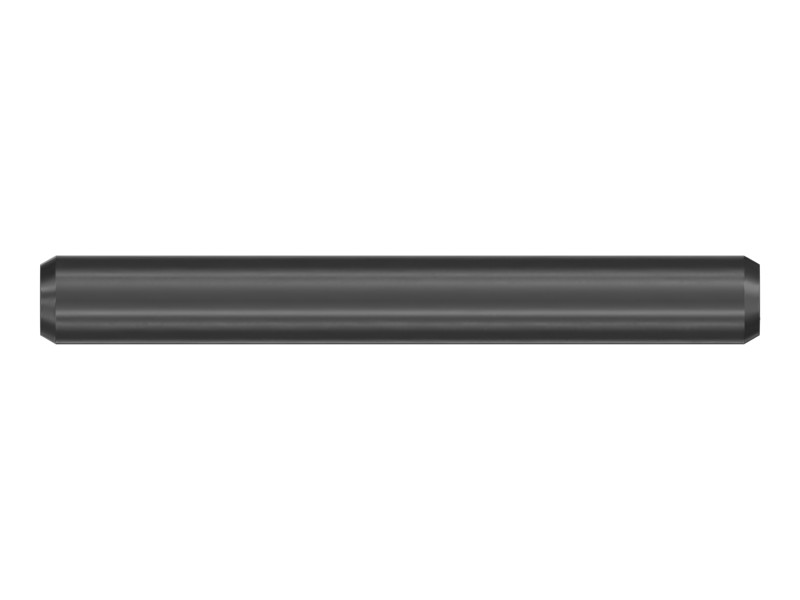

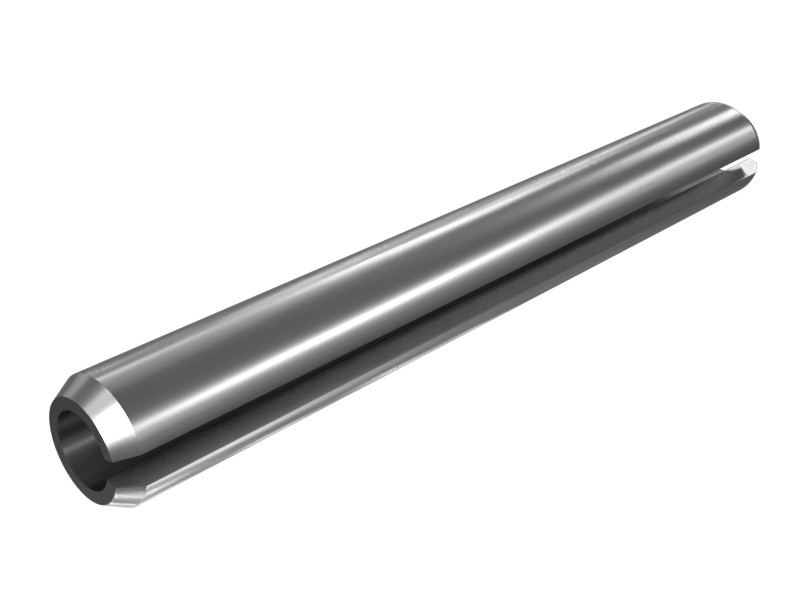

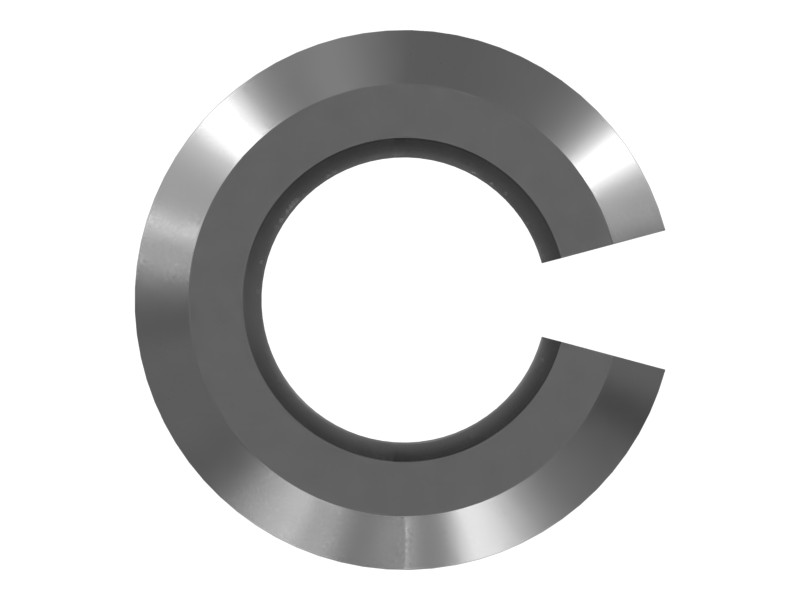

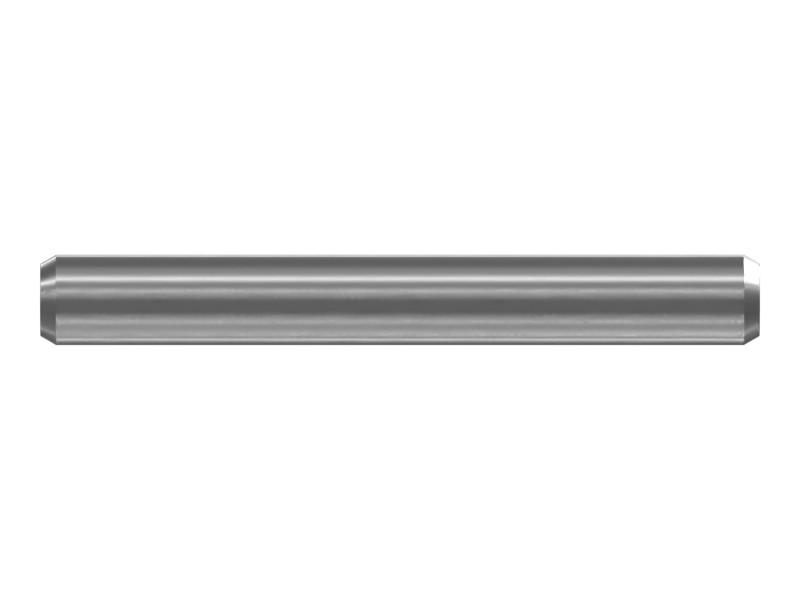

The slotted spring pin has a longitudinal slot along its entire length. The pin is compressed during installation and exerts continuous pressure against the sides of the hole wall. The pressure provides radial tension to prevent loosening due to vibration or shock. Fasteners and hardware are designed for specific applications based on size, strength, clamp load, and past performance, information that other manufacturers do not have. They are carefully selected to last until machine rebuild or end of life. Non-Cat hardware and fasteners may appear suitable for your machine, but other companies do not know your equipment the way we do.
Features
- Hardened steel pin
- Pin Diameter: 3.18 mm (0.125 in)
- Pin Length: 25.4 mm (1 in)
- End Type 1: Chamfered
- End Type 2: Chamfered
Applications
Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Material | Low Alloy Steel |
|---|---|
| Pin Type | Spring-Roll |
| Pin Length | 25.4 mm (1 in) |
| Pin Outside Diameter | 3.18 mm (0.125 in) |
| Material Description | Steel |
| Length | 25.4 mm (1 in) |
| Pin Diameter | 3.18 mm (0.125 in) |
Compatible Equipment
- Generator Sets: C4.4
- Track Loaders: 963, 973K, 994K, 953, 963D, 953K, 826K, 826G, 990K, 953D, 826H, 963K, 824G, 834H
- Cold Planers: PL87, PL83, PL61, PL72
- Compactors: CB1.7, CB1.8, CB-14, CB-66B, CB-44B, CB-64B, CB16, 824K, 834K, 825K, CB10, CB15, CB13
- Asphalt Pavers: AP-600D, AD45
- Skid Steer Loaders: 24
- Motor Graders: 18, 16, 12K, 16H, 160K, 12H, 120H, 16M3, 16M, 140K, 140H, 14M
- Wheel Excavators: IT14G
- Dozers: D7E, D6T, D11T, D10T2, D10R, D10T, D11N, D11R, D3K2 LGP, D10N, D7R, D6R, D6R LGP, D6R XL, D6T LGP, D7H, D5H, D9R, D4G, D9T, D6R II, D8R, D8T, D9N, D6R III, D7R II, D6N, D5G, D8N, D6K2, D5K LGP, D6M, D8, D3G, D5K XL, D5M, D6G2 XL, D5N, D7G2, D5K2 XL, D6G2 LGP
- Excavators: 621G, 621K, 637E, 621H, 637G, 657G, 637K, 3508B
- Wheel Loaders: 988H, 988G, RM500B, RM400, 988K, 938K, 928G, 950H, 972H, 980H, 966H, 924K, 924GZ, 928HZ, 972L, 924HZ, 972G, 966K, 950L, 980L, 962L, 950G, 962G, 980G, 966L, 990H
- Off-Highway Trucks: 773E, 775G, 735, 777E, 771D, 785D, 789D, 793F, 777D, 772G, 725, 773D, 740, 797F, 794 AC, 789, 770G, 730, 785, 773F, 793D, 777
