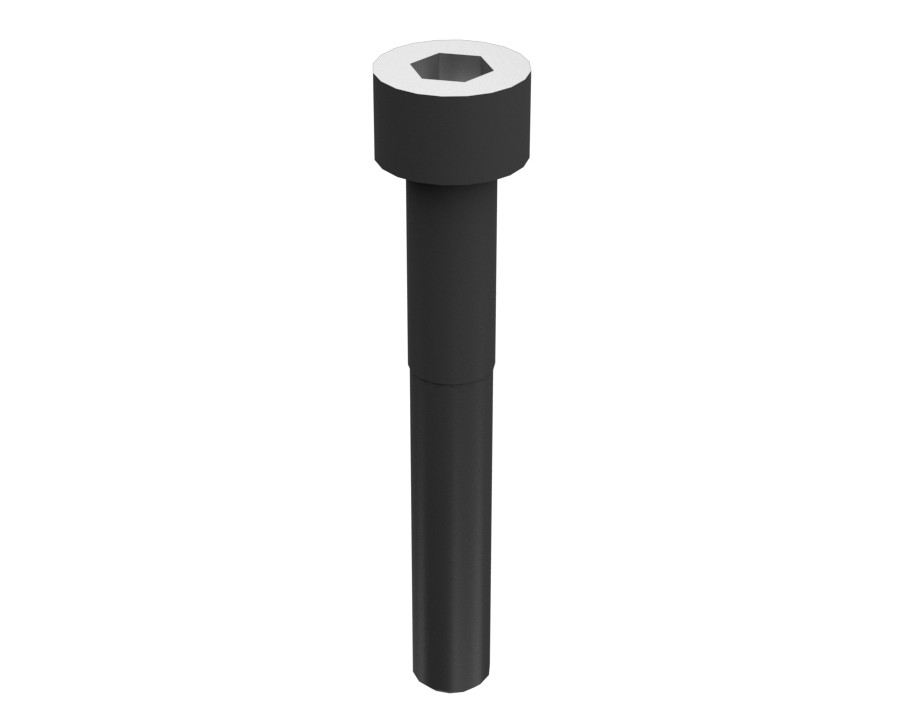

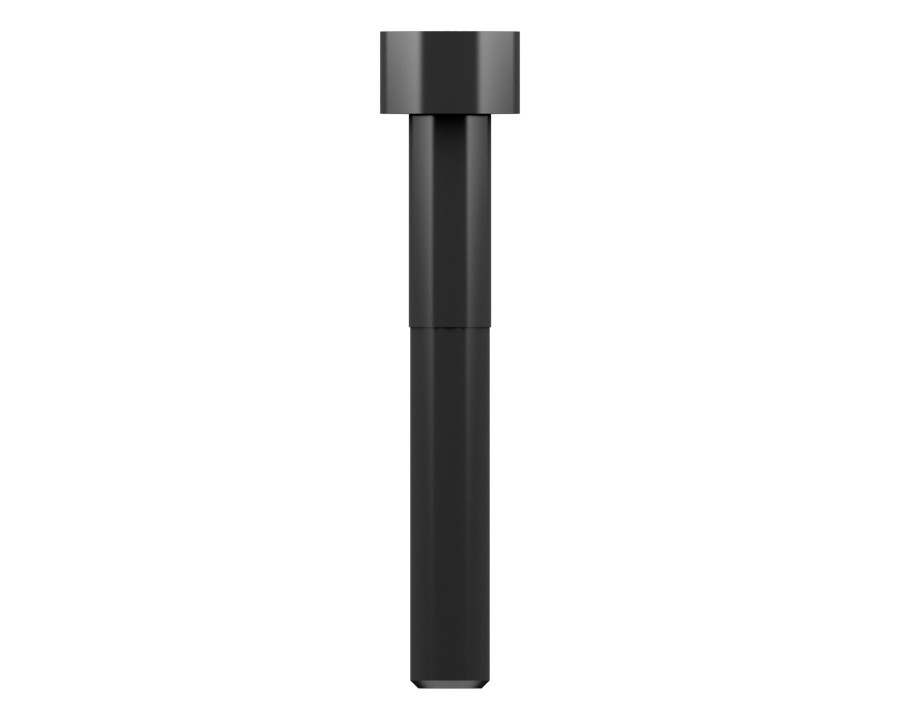

Description
Cat bolts form a matched system with mating hardened washers and nuts to produce consistent, high clamping force
Specifications
| Thread Direction | RH |
|---|---|
| Bolt Length | 35 mm (1.378 in) |
| Coating | None |
| Class or Grade | ISO 898-1 Class 12.9 |
| Thread Size (Diameter × Pitch) | M5 × 0.80 mm |
| Handle Length | 13 mm (0.512 in) |
| Locking Feature | None |
| Bolt Type | Socket Head |
| Material | Alloy Steel |
| Thread Size | M5 mm (0 in) |
Compatible Equipment
- Generator Sets: 3516C, C4.4
- Compactors: CB16, CW-34, CB-44B, CB-24B, CB-66B, CB-36B, CB-534D, CB-34B, CB-64B, CB15, CB13, CB10
- Engines: C32, C12
- Excavators: 303.5E2 CR, 307E, 308E, 306E2, 305E2 CR, 6040, 301.8, 301.6, 637K, 3512C, 621K, 320, 320D3 GC, 6030, 320D3
- Skid Steer Loaders: 24
- Motor Graders: 18, 16, 16M3, 16M, 3606
- Wheel Excavators: M320, M315, M315D2, M322D, M320D2, M315D, M313D, M317D2
- Dozers: D11R, D10R, D5N, D6N
- Mini Excavators: 308, 301.5, 303.5, 305.5E2, 305E2, 307, 310, 307E2, 308E2, 305.5E, 305.5 GC
- Wheel Loaders: R1700 XE, R2900 XE, R1700 II, R1700G, R3000H, R2900G, 926M, R1700K
- Off-Highway Trucks: 794 AC, 797F, 798 AC, 793F, 789D, 793D, 796 AC, 793, 789, 785
Additional information
| Machine Model | 16, 16M, 16M3, 18, 24, 301.5, 301.6, 301.8, 303.5, 303.5E2 CR, 305.5 GC, 305.5E, 305.5E2, 305E2, 305E2 CR, 306E2, 307, 307E, 307E2, 308, 308E, 308E2, 310, 320, 320D3, 320D3 GC, 3512C, 3516C, 3606, 6030, 6040, 621K, 637K, 785, 789, 789D, 793, 793D, 793F, 794 AC, 796 AC, 797F, 798 AC, 926M, C12, C32, C4.4, CB-24B, CB-34B, CB-36B, CB-44B, CB-534D, CB-64B, CB-66B, CB10, CB13, CB15, CB16, CW-34, D10R, D11R, D5N, D6N, M313D, M315, M315D, M315D2, M317D2, M320, M320D2, M322D, R1700 II, R1700 XE, R1700G, R1700K, R2900 XE, R2900G, R3000H |
|---|---|
| Equipment Type | Excavators, Mini Excavators, Wheel Excavators, Wheel Loaders, Skid Steer Loaders, Dozers, Motor Graders, Off-Highway Trucks, Compactors, Engines, Generator Sets |
| Part Source | Genuine OEM |
