Description
The bolt material hardness and thread design provide high strength and resistance to bolt thread stripping.
Specifications
| Thread Size | M12 mm (0 in) |
|---|---|
| Locking Feature | None |
| Thread Direction | RH |
| Class or Grade | ISO 898-1 Class 10.9 |
| Thread Size (Diameter × Pitch) | M12X1.75 mm |
| Bolt Length | 120 mm (4.724 in) |

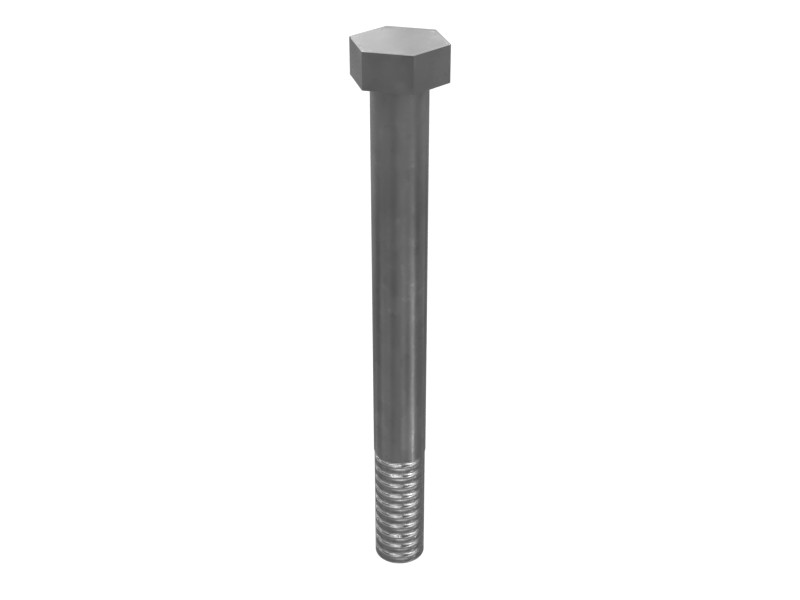

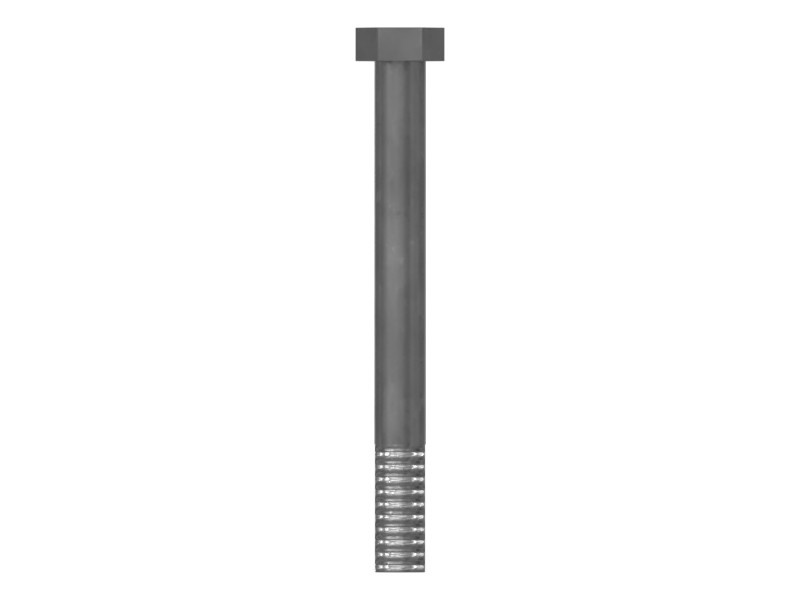

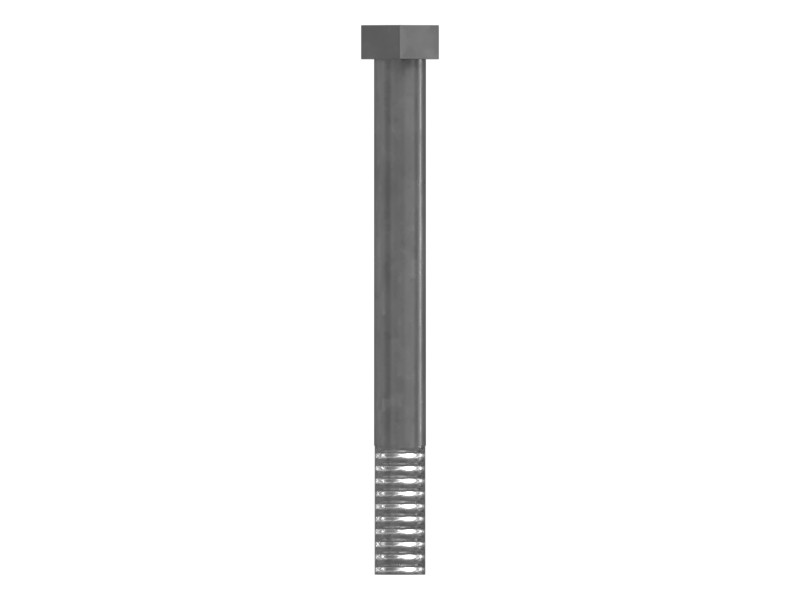

| Bolt Type | Hex Head Bolt |
| Coating | Zinc Flake |
| Handle Length | 90 mm (3.543 in) |
| Material | Carbon Steel |
Compatible Equipment
- Generator Sets: 3516C, C9, C7.1, G3516C, G3516
- Track Loaders: 982, 993, 990K, 994K, 972, 995, 992, 826K, 963, 834H, 816F
- Cold Planers: PL83, PL87, PL61, PL72
- Compactors: 824K, 816, 815, 814, 825K, C9.3B, C13B, C-9
- Engines: C15, C13, C27, C18
- Excavators: 320D, 330, 308D, 326D2 L, 336D2, 329D, 390D L, 349D2 L, 390F L, 374D L, 336D, 349D2, 303C CR, 329D2 L, 349D, 374F, 329D2, 308E, 326D2, 305C CR, 307.5, 374, 316 GC, 349F L, 330D L, 313 GC, 313, 637K, 323, 326GC, 3516E, 6015B, 315D L, 395, 352, 326 GC, 320 GC, 320, 340, 323 GC, 336, 350, 333, 323 GX, 345C, 349D L, 355, 315, 330 GC, 325, 320 GX, 312D2 L, 326, 312D2, 320D3, 120 GC, 323GC, 349, 312 GC, 3516B, 328D LCR, 313D2 GC, 330GC, 324D L, 325D L, 311D LRR, 336D2 L, 313D2, 325B L, 330C L, 336D L, 312E, 320C, 336E H, 330D, 330D2 L, 312C, 314D LCR, 315C, 312D2 GC, 312C L, 320D RR, 336 GC, 314D CR, 325D, 330C, 312D L, 318D2 L, 325C L, 385C FS, 621H, 345C L, 385C L, 365B L, 345D L, 345D, 621K, 350 L, 385C, 390F, 385B, 336E, 336E LH, 329D L, 311C, 336F L, 320E, 336F LN, 336F L XE, 320D FM, 325C, 320B, 336F, 312D, 365B, 390D, 6020B, 349E L, 345B, 365C, 352F, 374F L, M325D L MH, 312E L, 330B, 330D2, 311B, 326D L, 329E L, 336E L, 340D2 L, 345 GC, 365C L, 3101, 314C, 324D, 313D, 336D2 GC, 313F L, 349E L VG, 349E, 313F LGC, 340D L, 330 L, 323D L, 325B, 313 GX, 316 GX, 6040, 318D2, 335, 315F LCR, 312 GX, 318D L, 6060, 3508B, 6015, 336D2 XE, 329E, 336E LN, 313D2-GC, 312F, 6030, 350MHPU, 333 GC
- Asphalt Pavers: AD30, AP-600D, AD45, AD63
- Skid Steer Loaders: 299D3 XE, 24, 313D2 LGP, 236
- Motor Graders: 16, 18, 14, 160K, 16M, 12K, 14M, 349 GC, 16M3, 140K, 316F
- Wheel Excavators: M315, M322D, IT14G, M320, MD6200, M320D2, MD6310, M315GC, M315D, M313D, MD6250
- Dozers: D8R, D8, D4, D1, D8T, D6M, D7G2, D7R II, D6T, D5N, D6K2, D6N, D6R III, D6T LGP, D3K2 LGP, D5M, D7R, D5K XL, D5K LGP, D6R, D6R XL, D7G, D7, D11T, D10T, D9T, D5K2 XL, D6R LGP, D6R II
- Compact Track Loaders: 299D3
- Mini Excavators: 303.5C, 307B, 310, 306.5, 308, 307C, 308.5, 307D, 306, 307, 307E2
- Wheel Loaders: 966, RM400, R2900G, 950, 950 GC, R1700 XE, 966L, 980, M314, R2900 XE, 950H, 966H, 980G, 928G, 972G, 972H, 938K, 938M, 924K, 962G, 924GZ, 966K, 980H, 972L, 924HZ, 990H, 928HZ, 988H, 988G, 986H, 980L, 926M, R1700K, R3000H, 950G
- Off-Highway Trucks: 794 AC, 7495, 777, 798 AC, 797F, 793F, 793, 789, 785, 793D, 740, 796 AC, 789D, 730, 725C2, 735, 785D, 745, 725, 745C, 772G, 740 GC, 773
