Description
Cat® fastener parts are designed for specific applications based on size, strength, clamp load and past performance, information other manufacturers do not have. They are carefully selected to last until machine rebuild or end of life. Non-Cat hardware and fasteners may appear to fit your machine, but no one else knows your equipment the way we do.
Hex head bolts/screws provide extremely strong tapping performance.
Features
- Cat fasteners are manufactured to precise specifications for durability, reliability and high efficiency
- Strength and Quality – Fasteners meet or exceed ISO, ASTM, ASME and SAE requirements.
- Cat bolts, nuts and washers are specifically designed to work together as a system to maximize clamping force.
- Coating meets the special requirements of different applications (RoHS compliant).
Applications
Cat bolts form a high-performance system with mating hardened washers and nuts to produce consistent, high clamping force. You can trust Cat fasteners to help you build, maintain or rebuild in most machine and shop applications worldwide.
Specifications
| Thread Direction | RH |
|---|---|
| Class or Grade | ISO 898-1 Class 10.9 |
| Thread Size | M20 mm (0 in) |
| Locking Feature | None |
| Thread Size (Diameter × Pitch) | M20X2.5 mm |
| Bolt Length | 30 mm (1.181 in) |

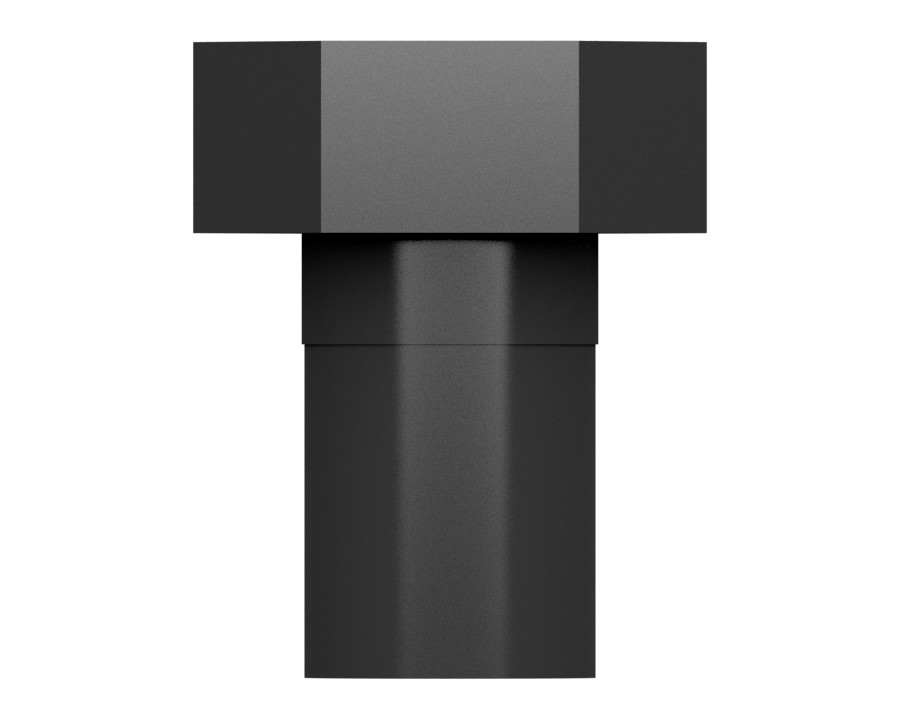

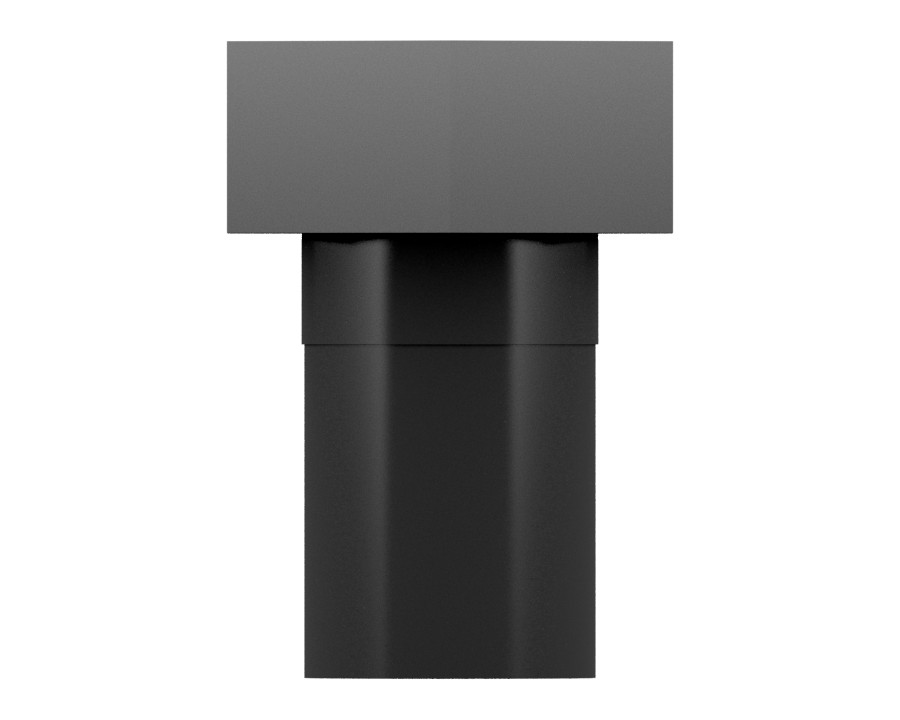

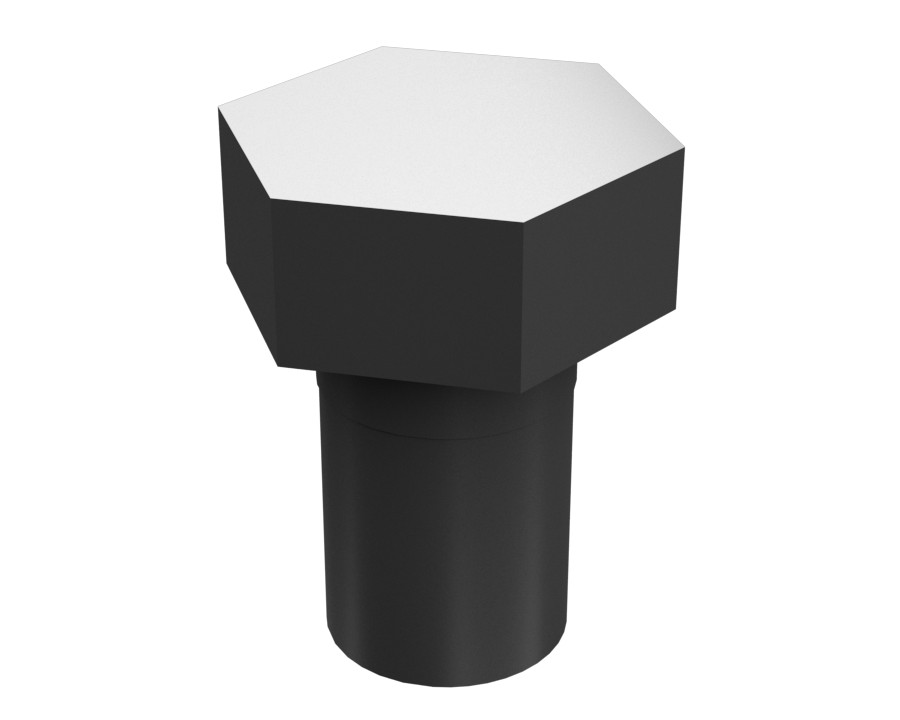

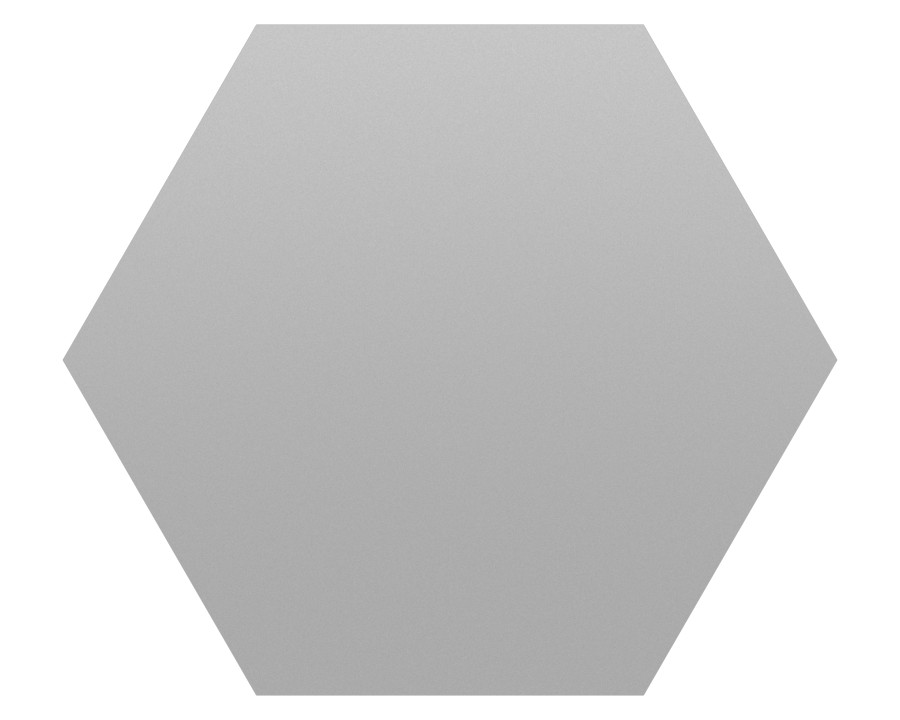

| Bolt Type | Hex Head Bolt |
| Coating | Zinc Flake |
| Handle Length | 8 mm (0.295 in) |
| Material | Low Alloy Steel |
Compatible Equipment
- Generator Sets: C4.4, G3516C
- Track Loaders: 993, 973K, 982, 972, 834H, 816F
- Cold Planers: SE60 VT XW, PL83
- Compactors: 834K, CW-34, CB10
- Excavators: 320D2, 329D, 320D, 336D, 326D2 L, 326D2, 336D2, 349D, 349D2, 349D2 L, 349F L, 330D L, 329D L, 336E L, 349D L, 336D L, 324D L, 312D, 312D L, 325C, 325D L, 320C, 314C, 311D LRR, 312C, 320D FM, 329E, 320D2 GC, 320D L, 330B, 329E L, 315D L, 336D2 L, 325B L, 330C, 365B L, 352, 325D, 325B, 311B, 320B, 315C, 314D CR, 320D2 L, 324D, 313D, 336F, 320, 6060, 320D GC, 320D RR, 318D2 L, 336E, 320C L, 330C L, 314D LCR, 311C, 657G, 340D L, 323D L, 325C L, 328D LCR, 330D, 336F L, 335F LCR, 323D2 L, 345D L, 345B, 349E L VG, 349E, 345C L, 345D, 345C, 385C, 350 L, 365B, 6020B, 340D2 L, 365C, 312C L, 336E LH, 349E L, 365C L, 385C L, 349, 323D, 385B, 6040, 345 GC, 320E, 336E LN, 330 L, M325D L MH, 326D L, 336F L XE, SE60 V XW, 318D L, 320 GC
- Asphalt Pavers: AP655F
- Skid Steer Loaders: 24, 313D2 LGP
- Motor Graders: 18, 14, 16, 16M, 16M3, 14M
- Wheel Excavators: M315, M320, MD6310, M315GC, M315D, M313D, M322D, M315D2, M320D2, M317D2
- Dozers: D7E, D4, D6R LGP, D6R, D6R XL, D5M, D6R III, D6T, D6T LGP, D6M, D6R II, D6K2
- Wheel Loaders: 950, R2900G, 926M, 950H, 962G, 980, 966, M314, 966K, 950G, 972L, 938K, 972G, 972H, 966H, 950L, 966L, 980L, 980G, 928HZ, 924K, 962L, 950 GC, 928G, 980H, 938M, 834, 990H, 836, R3000H, 986H
- Off-Highway Trucks: 793F, 735, 773
