Description

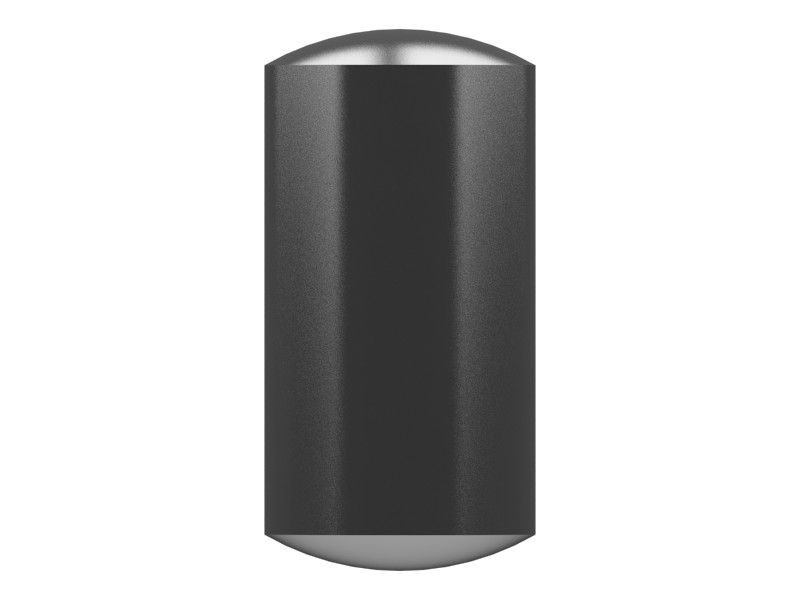

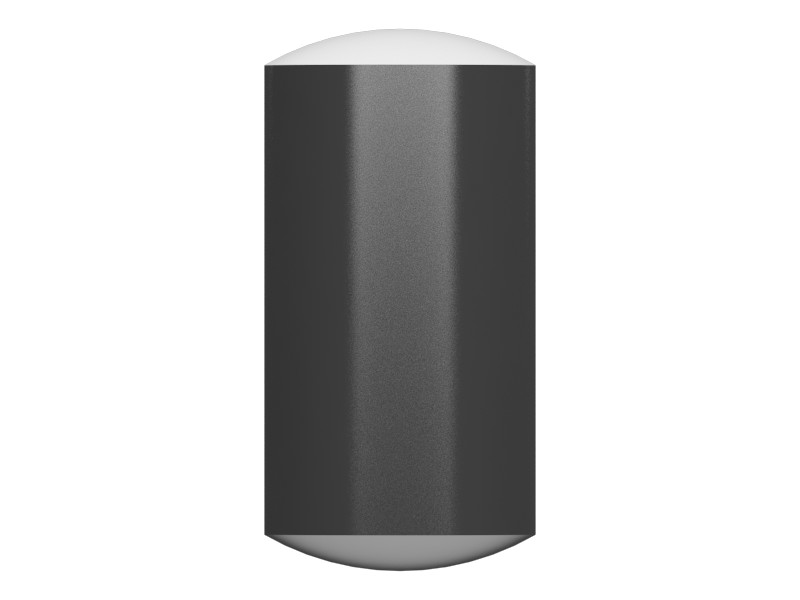

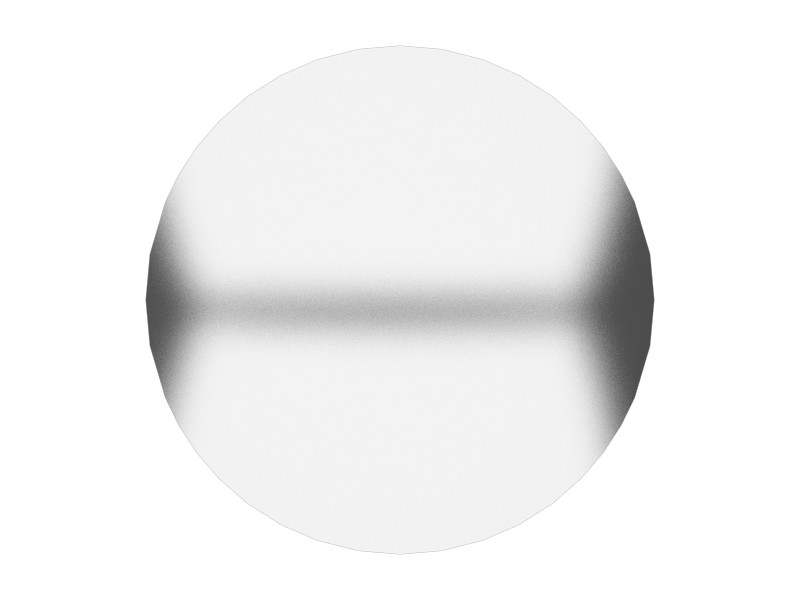

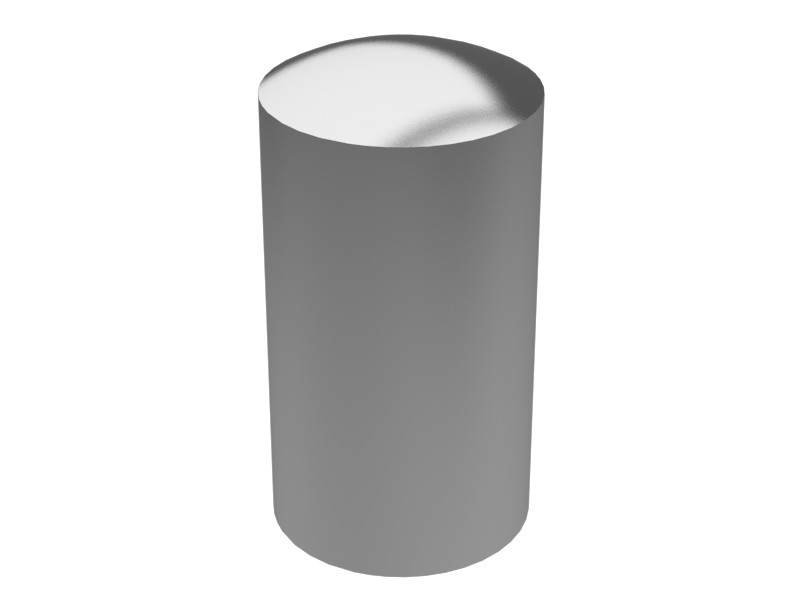

A dowel pin is a headless straight pin with a tightly controlled diameter, installed by press fit in one or two parts to transmit loads or fix the position of adjacent parts. Cat fasteners and hardware are designed for specific applications based on size, strength, clamp load and past performance, information that is not available to other manufacturers. They are carefully selected to last until the machine is rebuilt or reaches the end of its life. Non-Cat hardware and fasteners may look like they will work on your machine, but other companies do not know your equipment the way we do.
Features
- Hardened steel pin
- Pin Diameter: 6 mm (0.24 in)
- Length: 12 mm (0.47 in)
- End Type 1: Chamfered Crown
- End Type 2: Crown
Specifications
| Length | 12 mm (0.47 in) |
|---|---|
| Pin Diameter | 6 mm (0.24 in) |
| Material Description | Steel |
| Pin Length | 12 mm (0.472 in) |
| Diameter | 6 mm (0.236 in) |
| Pin Type | Solid |
| Material | Carbon Steel |
| Cross Hole | No |
| Pin Outside Diameter | 6 mm (0.236 in) |
Compatible Equipment
- Cold Planers: PM620, PM622, PL83, PL87, PL72
- Wheel Excavators: MD6310, MD6250
- Compactors: 834K, CB-534D, CS-54, CB-434D, CS-533E
- Dozers: D6T, D11R, D11T, D10T, D10N, D11, D10R, D6R, D6R III, D8T, D8R, D7R II, D7R, D7E, D6R II, D6R XL, D9T, D9R, D7H, D6N, D6R LGP, D8N, D6T LGP, D8, D7, D9
- Excavators: 3508B
- Wheel Loaders: 834, 990H, 988K, 988F, RM500B, R1700K, 836
- Off-Highway Trucks: 797F
- Skid Steer Loaders: 24
Additional information
| Machine Model | 24, 3508B, 797F, 834, 834K, 836, 988F, 988K, 990H, CB-434D, CB-534D, CS-533E, CS-54, D10N, D10R, D10T, D11, D11R, D11T, D6N, D6R, D6R II, D6R III, D6R LGP, D6R XL, D6T, D6T LGP, D7, D7E, D7H, D7R, D7R II, D8, D8N, D8R, D8T, D9, D9R, D9T, MD6250, MD6310, PL72, PL83, PL87, PM620, PM622, R1700K, RM500B |
|---|---|
| Equipment Type | Excavators, Wheel Excavators, Wheel Loaders, Skid Steer Loaders, Dozers, Off-Highway Trucks, Compactors, Cold Planers |
| Part Source | Genuine OEM |
