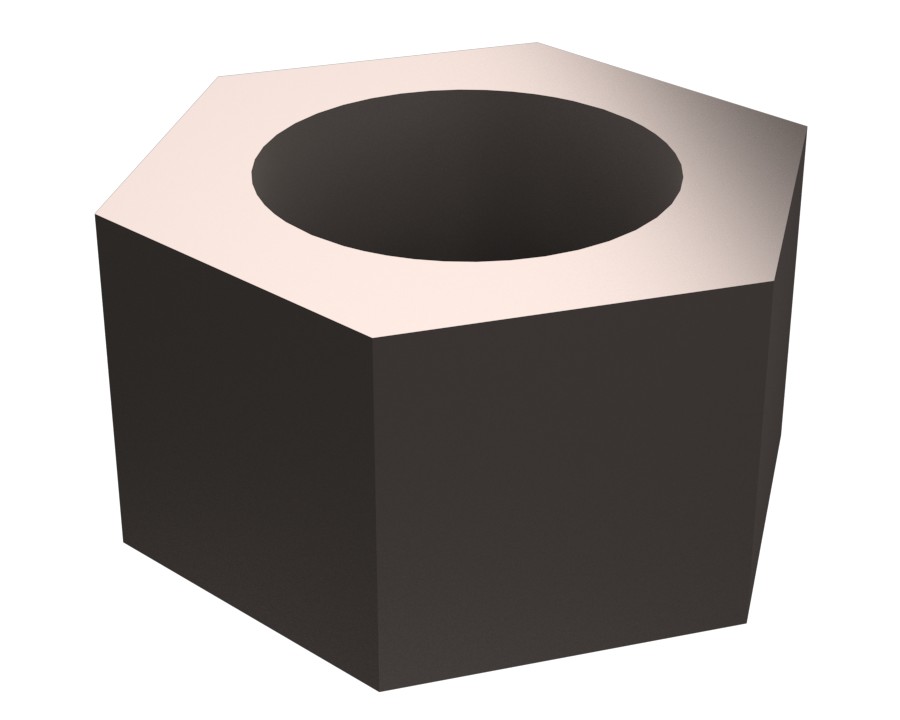

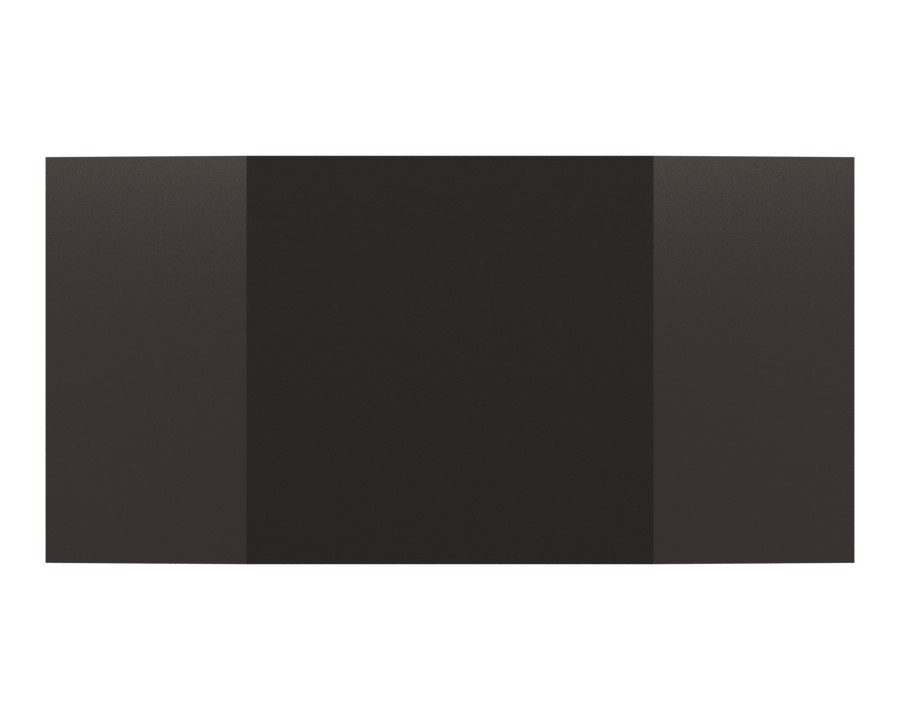

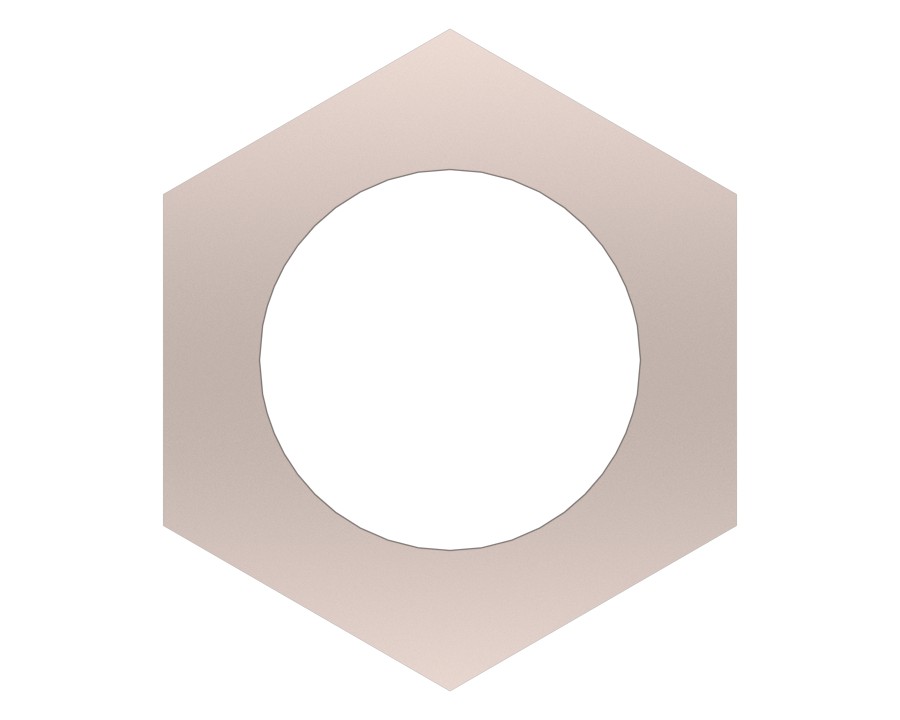

8T-4001 M24 Hex Nut

Cat® M24 Steel Plain Hex Nut

Quantity

SKU: 8T-4001 Categories: GET Nuts, Nuts

Description

Track nuts are used to secure track shoes to the link assembly.

Hardened	Yes
Coating Finish Note	Caterpillar is changing many hex nuts from a zinc plated finish to a zinc flake coated finish. During the clearance process, until current stock of plated nuts is depleted, you may receive nuts with either a zinc plated or zinc flake coated finish.
Hole Thread Pitch	3.00
Thread Size	M24 mm (0 in)
Nut Width – 3	55 mm
Surface Finish	Zinc Flake
Thread	Coarse Thread UNC
Thread Direction	RH
Class or Grade	ISO 898-2 Class 12
Thread Size (Diameter × Pitch)	M24X3 mm
Thickness	21.5 mm (0.846 in)
Height	22 mm
Drive Chain	36 mm (1.417 in)
Nut Model	Hex Nut
Material	Steel
Material Description	ISO 898-2 Class 12 Hardness
Coating	Zinc Flake

Generator Sets: 3512E, 3516C, 3512B, C9, C4.4, G3516C, G3516
Track Loaders: 992, 982, 972, 990K, 824G, 826G
Cold Planers: PM622, PM620, SE50 VT, TH360B
Compactors: CS12, CS-54, CP56B, CP12 GC, CS68B, CS56B, CS78B, CS74B, CS12 GC, CS11, CP11 GC, CS7, CB-534D, CS-563E, C9.3B, CS-56, CS-583D, CP54B, CS-533C, CB-564D, CB-434D, CS54B, CS79B, 824K, C-9, CS-533E, CS-54B, CS64B
Engines: C7, C32, C15, C27, C18, C175-16
Excavators: 336D, 330D L, 3516B, 302.7CR, 120 GC, 340, 432, 3516E, 6060, 416E, 345C L, 416F2, 385B, 345B, 621K, 345C, 350 L, 385C L, 365C L, 365C, 365B L, 385C, 6020B, 365B, 330C, 330C L, 336D L, 325C, 320C, 329D L, 320D L, 330D, 325B L, 328D LCR, 336E L, 336E LN, 330 L, 637K, 3508B, 621H
Asphalt Pavers: AP-600D, AP655F, AP655F L
Skid Steer Loaders: 3126B
Motor Graders: 140 GC, 14, 16, 18, 16M, 16M3
Wheel Excavators: MD6250, IT14G, MD6310
Dozers: D10T2, D6T, D7E, D6R III, D7, D9, D8, D10, D6R, D7R, D8T, D6R XL, D6R LGP, D6R II, D10T, D11, D4G, D6N, D3G, D5G, D9T, D8R, D8N, D9R, D7G2, D6G2 XL, D6T LGP, D6G2 LGP, D6K2, D7G
Mini Excavators: 307C, 307B, 307, 307E2
Wheel Loaders: 966, 950H, 980, RM500B, R2900 XE, R1700K, R1700 XE, RM400, 972H, 938M, 938K, R1700G, 924GZ, 928HZ, 966K, 962L, 924K, 966H, 924HZ, 928G, 980G, 980H, 906K, 980L, 966L, 926M, 972L, 972G, 950L, R1600H
Off-Highway Trucks: 794 AC, 777, 798 AC, 773, 793D, 793, 796 AC, 7495, 735, 725, 730, 777E, 770G, 725C2, 772G, 775G

Machine Model	120 GC, 14, 140 GC, 16, 16M, 16M3, 18, 302.7CR, 307, 307B, 307C, 307E2, 3126B, 320C, 320D L, 325B L, 325C, 328D LCR, 329D L, 330 L, 330C, 330C L, 330D, 330D L, 336D, 336D L, 336E L, 336E LN, 340, 345B, 345C, 345C L, 350 L, 3508B, 3512B, 3512E, 3516B, 3516C, 3516E, 365B, 365B L, 365C, 365C L, 385B, 385C, 385C L, 416E, 416F2, 432, 6020B, 6060, 621H, 621K, 637K, 725, 725C2, 730, 735, 7495, 770G, 772G, 773, 775G, 777, 777E, 793, 793D, 794 AC, 796 AC, 798 AC, 824G, 824K, 826G, 906K, 924GZ, 924HZ, 924K, 926M, 928G, 928HZ, 938K, 938M, 950H, 950L, 962L, 966, 966H, 966K, 966L, 972, 972G, 972H, 972L, 980, 980G, 980H, 980L, 982, 990K, 992, AP-600D, AP655F, AP655F L, C-9, C15, C175-16, C18, C27, C32, C4.4, C7, C9, C9.3B, CB-434D, CB-534D, CB-564D, CP11 GC, CP12 GC, CP54B, CP56B, CS-533C, CS-533E, CS-54, CS-54B, CS-56, CS-563E, CS-583D, CS11, CS12, CS12 GC, CS54B, CS56B, CS64B, CS68B, CS7, CS74B, CS78B, CS79B, D10, D10T, D10T2, D11, D3G, D4G, D5G, D6G2 LGP, D6G2 XL, D6K2, D6N, D6R, D6R II, D6R III, D6R LGP, D6R XL, D6T, D6T LGP, D7, D7E, D7G, D7G2, D7R, D8, D8N, D8R, D8T, D9, D9R, D9T, G3516, G3516C, IT14G, MD6250, MD6310, PM620, PM622, R1600H, R1700 XE, R1700G, R1700K, R2900 XE, RM400, RM500B, SE50 VT, TH360B
Equipment Type	Excavators, Mini Excavators, Wheel Excavators, Wheel Loaders, Track Loaders, Skid Steer Loaders, Dozers, Motor Graders, Off-Highway Trucks, Compactors, Asphalt Pavers, Cold Planers, Engines, Generator Sets
Part Source	Genuine OEM
