Description
Cat® fastener parts are designed for specific applications based on size, strength, clamp load and past performance, information other manufacturers do not have. They are carefully selected to last until machine rebuild or end of life. Non-Cat hardware and fasteners may appear to fit your machine, but no one else knows your equipment the way we do.

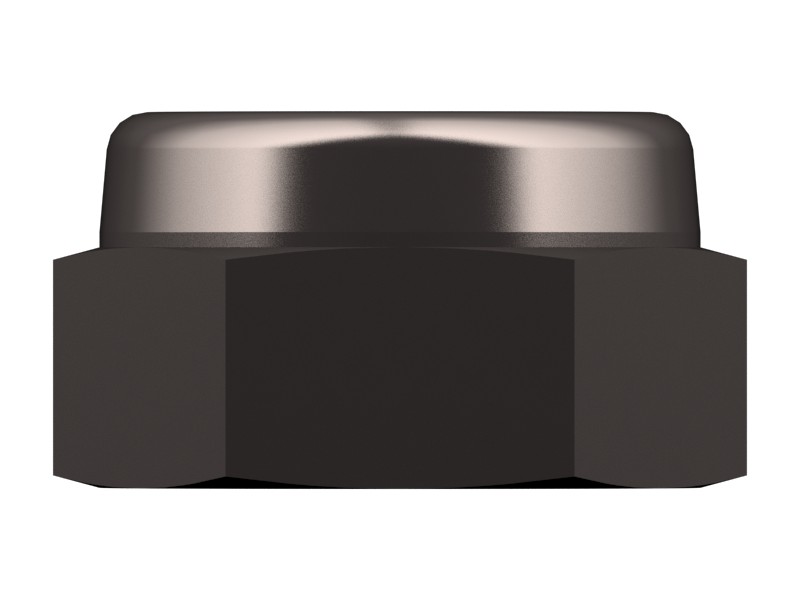

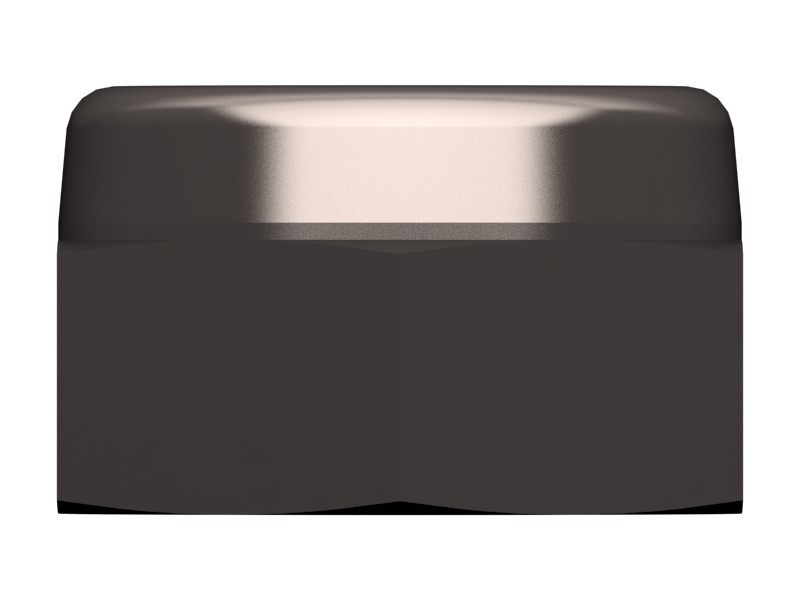

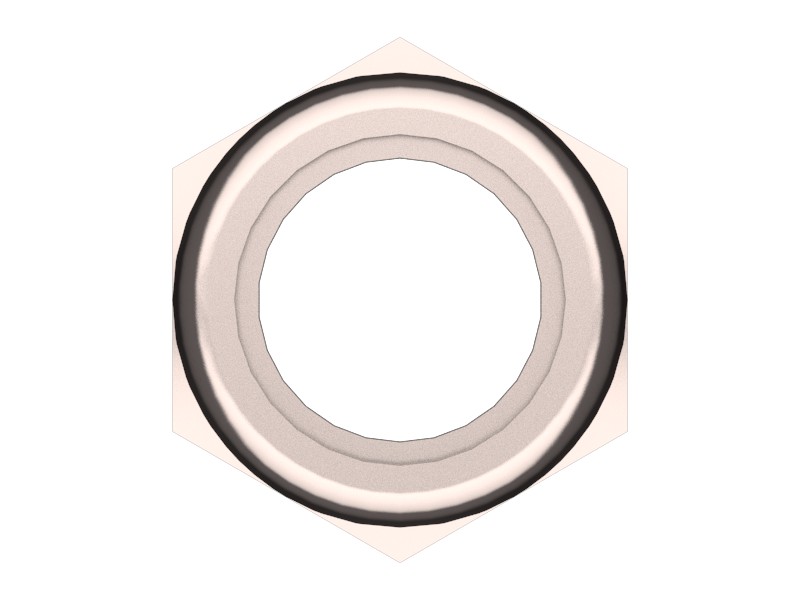

These nuts provide prevailing torque so the nuts will not loosen. Do not exceed 120 C.
Features
*Cat fasteners are manufactured to precise specifications for durability, reliability and efficiency
* Strength and quality – fasteners meet or exceed ISO, ASTM, ASME and SAE requirements.
* Cat bolts, nuts and washers are specifically designed to work together as a system to maximize clamping force.
* Coatings meet the special requirements of different applications (RoHS compliant).
Applications
Cat bolts form a high-performance system with mating hardened washers and nuts to produce consistent, high clamping force. You can trust Cat fasteners to help you build, maintain or rebuild in most machine and shop applications worldwide.
Specifications
| Thread Direction | RH |
|---|---|
| Material | Alloy Zinc |
| Thread Size (Diameter × Pitch) | M5x0.8 mm |
| Class or Grade | ISO 898-2 Class 10 |
| Drive Chain | 8 mm (0.315 in) |
| Thread Size | M5 mm (0 in) |
| Material Description | ISO Grade 10/12 Equivalent |
| Hole Thread Pitch | 0.80 |
| Coating | Zinc Electroplated (96 Hour Salt Spray Test) |
| Thickness | 5 mm (0.197 in) |
| Thread | RH Coarse |
| Nut Model | Hex |
| Thread Size (in – TPI) | M5-0.8 in |
Compatible Equipment
- Generator Sets: 3512B, 3406C, C4.4, C7.1, 3516C, G3516
- Track Loaders: 973K, 953, 963D, 953D, 824G, 826G, 963K, 963, 953K
- Cold Planers: PM620, SE50 VT, TH417D, TH255C, PM622
- Compactors: CB-434D, CB-44B, CB-534D, CB-564D, CS-563E, CB10
- Engines: C6.6, C32, C15, C27, C175-16, C18
- Excavators: 329D, 336D, 320D, 330D L, 345C, 385C L, 365C, 345C L, 385C, 3516B, 3508B, 637K, 3512C, 365C L, 325D L, 329D L, 323D L, 301.6, 336D L, 325D, 324D L, 324D, 320D L, 330D, 301.8
- Asphalt Pavers: AP355F, AD45, AD30, AP300F, AP-600D, AP655F, AP655F L, AD63
- Wheel Excavators: M315GC, MD6310, M315, MD6250, M320, IT14G
- Dozers: D11T, D10T2, D8, D10, D7R II, D6T, D6G2 LGP, D4G, D6R III, D5G, D6R II, D7E, D10R, D11, D8T, D9, D9T, D3G, D7G2, D6T LGP, D9R, D6G2 XL, D7G
- Mini Excavators: 301.5
- Wheel Loaders: 988H, 924HZ, 950H, 950G, 980G, 966H, 928HZ, 972H, 962G, 966K, R1700 XE, 928G, 972G, 924GZ, 988G, RM500B, R1700G, R1300G, R2900G, R2900 XE, R3000H, R1600H, R1700K, R1700 II, M314
- Off-Highway Trucks: 740 GC, 730, 735, 740, 772G, 740B, 745C, 725, 770G, 777, 775G, 725C2, 745, 773F, 777E, 773
