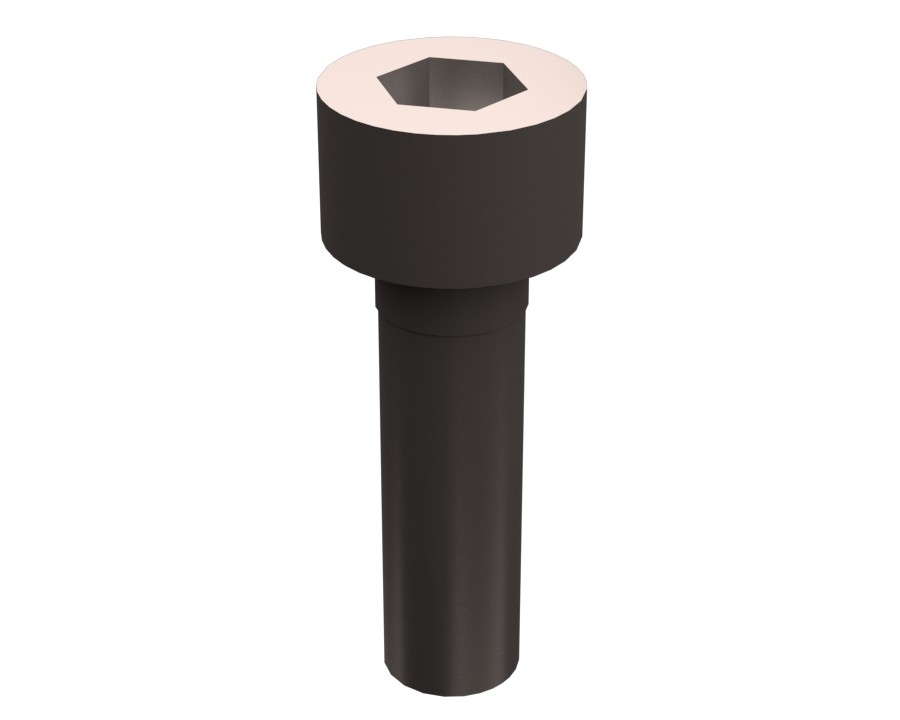

Description
Cat bolts form a matched system with mating hardened washers and nuts to produce consistent, high clamping force
Specifications
| Thread Direction | RH |
|---|---|
| Bolt Type | Socket Head |
| Coating | Zinc Phosphate + Oil |
| Class or Grade | ISO 898-1 Class 12.9 |
| Locking Feature | None |
| Thread Size | M6 mm (0 in) |
| Material | STEEL |
| Thread Size (Diameter × Pitch) | M6 X 1 mm |
| Bolt Length | 20 mm (0.787 in) |
| Handle Length | 3 mm (0.118 in) |
Compatible Equipment
- Generator Sets: C4.4, G3516C, 3512E, C7.1DE200E, C7.1, C9, C3.3DE33E0, C4.4DE88E0, C3.3DE50E0, 3512B, 3516C
- Track Loaders: 953, 953K, 963, 995, 963K, 992
- Cold Planers: PM622, PL87, PL72, TH360B, PL61, PL83, PM620
- Compactors: CS12, CP12 GC, CS7, CS78B, CB-534D, CS74B, CS56B, CW-34, CB-434D, CS11, CB-66B, CS68B, CB-564D, CP56B, CS-583D, CB16, CS-533C, 816, 815, 814, CS12 GC, CS-54, CP11 GC, CB-44B, CS79B, CB-64B, CB-14B, CP54B, CW-16, CB2.9, CB2.7, CB2.5, CS54B, CB13, CB10, CB15, C-9, CS-533E, CS-54B, CS64B
- Engines: C11, C13, C15, C32, C18, C175-16
- Excavators: 320D, 336D, 336D2, 330, 307.5, 308E, 3126, 303.5E2 CR, 349D2, 390F L, 390D L, 308D, 374D L, 329D2 L, 303C CR, 329D2, 326D2 L, 329D, 326D2, 320D2, 374F, 349D2 L, 307E, 349D, 305C CR, 316 GC, 305E2 CR, 330D L, 313, 313 GC, 349F L, 3516B, 325, 312 GX, 316 GX, 336D L, 120 GC, 6040, 323 GX, 312E, 336D2 L, 320 GX, 305 CR, 330 GC, 312E L, 314D LCR, 314D CR, 315, 315 GC, 432, 320C, 315D L, 325D L, 312D, 330D, 323D L, 323D2 L, 320D L, 320, 329D L, 312C, 325B L, 335F LCR, 301.6, 323, 323GC, 329E L, 345D, 6020B, 416E, 385C, 345C L, 428F, 416F2, 390F, 345C, 349D L, 365C, 385C FS, 385B, 340D2 L, 374F L, 349E L VG, 312D L, 320 GC, 330 L, 313D2, 320D3, 336E L, 313D2 GC, 325D, 311D LRR, 365B, 349E L, 345D L, 621G, 336F L, 318D2, 336D2 GC, 323D, 325C, 312F, 312D2, 320D2 GC, 330D2, 320D2 L, 320B, 312D2 GC, 336E LH, 324D L, 329E, 301.8, 315C, 313F L, 320D RR, 318D2 L, 320E, 328D LCR, 312D2 L, 336F L XE, 637G, 336E, 336D2 XE, 330D2 L, 657G, 330C L, 324D, 311B, 336E LN, 330C, 385C L, 390D, 6015B, 352F, 313D2-GC, 345B, 312C L, 313 GX, 315F LCR, 326, 326GC, 302.7CR, 303CR, 303.5CR, 312 GC, 6015, 6030, 326 GC, 333 GC, 333, 6060, 323D2, 323 GC, M325D L MH, 365B L, 336 GC, 3516E, 349E, 340D L, 434F2, 325B, 330B, 336F LN, 350 L, 365C L, 320D3 GC, 320D GC
- Asphalt Pavers: AP-600D, AP655F, AD30, AP655F L, AP355F, AD45, AD63, AP300F
- Skid Steer Loaders: 236B3, 226B, 236, 216B3, 226B3, 313D2 LGP
- Motor Graders: 140 GC, 120, 16M, 140G, 120H, 14M, 14, 316F
- Wheel Excavators: M315, M320, M313D, M315D, M322D, MD6310, IT14G, M317D2, M320D2, M315D2, M315GC
- Dozers: D6T, D10T2, D8, D11T, D10T, D11, D3K2 LGP, D4, D7, D9, D9T, D9R, D10, D6M, D6K2, D6N, D10R, D6T LGP, D8T, D8R, D6R XL, D3G, D5M, D6R, D5K LGP, D7R, D5K2 XL, D5G, D4G, D7E, D5K XL, D9N, D10N
- Mini Excavators: 303.5D, 308, 307, 307D, 307C, 301.5, 303.5E, 302CR, 305.5E, 307E2, 301.7CR, 306, 306.5, 303.5, 303.5C, 310
- Wheel Loaders: 950 GC, 926M, 928G, 988F, 950G, 924K, 962G, 938K, 906K, 924GZ, 950L, 962L, 972L, 990H, 966L, 992D, 938M, R1300G, R1700G, R1700 XE, R2900G, R1600H, M314, R3000H, R1700K, R2900 XE
- Off-Highway Trucks: 793F, 796 AC, 7495, 798 AC, 797F, 794 AC, 785, 773, 789D, 785D, 770G, 772G, 777D, 735, 740B, 740, 725, 793D, 745C, 730, 725C2, 773E, 773D, 793, 789, 771D
