Description

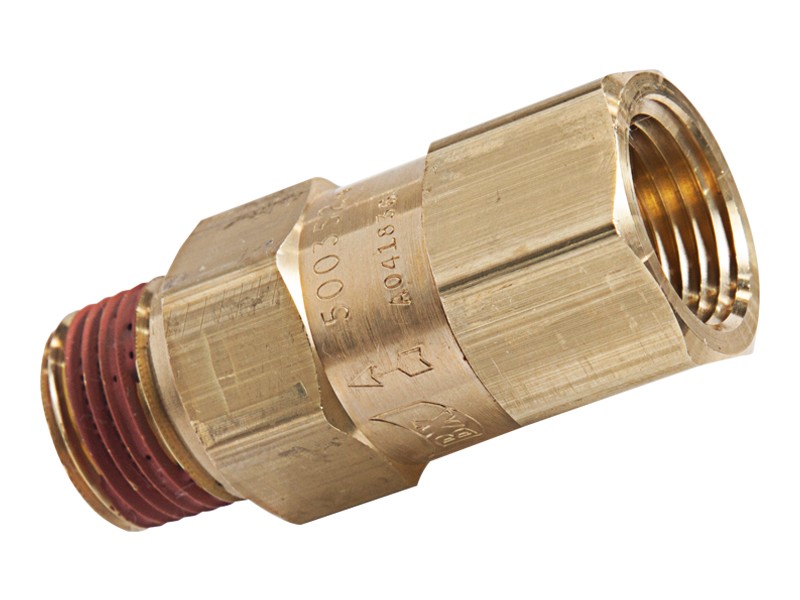

Cat Check Valve Connection Between Description:
Cat check valves provide one-way fluid flow and prevent backflow.
Features
- Prevents backflow
- Hex Size: 25.4 (2x)
- Inlet and Outlet Threads: 1/2-14 NPT
- Inlet and Outlet Type: Female Thread
- Maintains required pressure
Applications
Used as needed in various heavy equipment systems and is application specific. Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Hex Size | 25.4 mm (1 in) |
|---|---|
| Length | 61 mm (2.4 in) |
| Thread Size | (2x)1/2-14 NPT in |
Compatible Equipment
- Motor Graders: 160K, 140K, 140G, 140H, 12K, 12H, 14M, 120H
- Excavators: 621G, 657G, 637G
- Wheel Loaders: 966F
- Off-Highway Trucks: 777, 773D, 773E, 785D, 777D, 789, 785, 773, 771D, 793D
