004-7626 37 Degree Flare to NPTF End Straight Adapter
Cat® Straight Adapter for Prelube Pump and Air Starting Motor
Description
Cat® fluid-carrying adapters meet extremely high standards of quality and reliability. These adapters are manufactured to tight tolerances to ensure leak-free connections. Every Cat fluid-carrying adapter meets or exceeds industry standards for working pressure, assembly torque capability and corrosion protection to ensure long-lasting, reliable machine operation.
Features
- Wetted parts
- Meets or exceeds industry-standard part performance and provides a leak-free connection

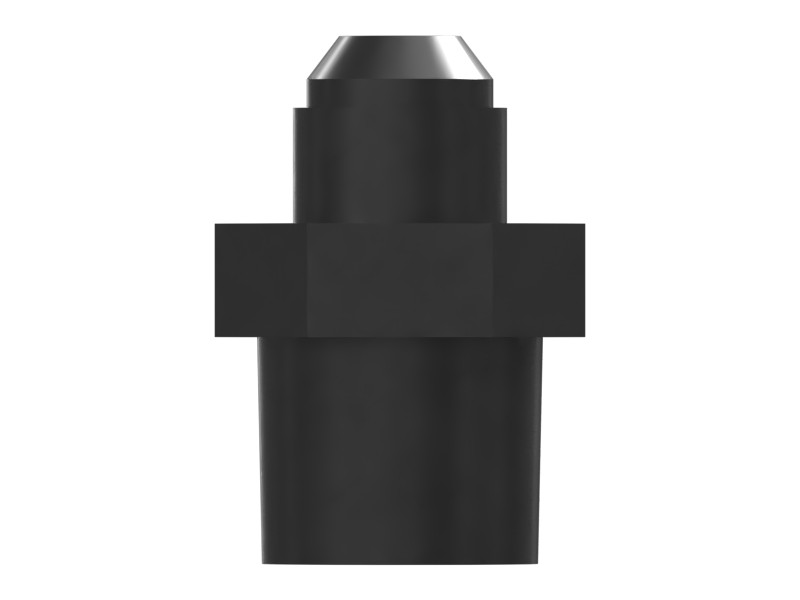

- The image provided is for reference only. The adapter construction may differ slightly from the illustration, but this part is interchangeable with the OEM part.
Applications
The adapter is designed to connect fluid-carrying hoses and rigid tubes to other system components. Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Hose Warning | Improper selection of hose and coupling combinations will void the warranty and may result in serious personal injury or death, property damage, or failure of components and machine systems. Cat® hose assembly products are designed and tested as a system to provide reliable connections that maximize hydraulic system safety and reliability. In addition, properly maintained, appropriate Caterpillar tooling is recommended to ensure hoses are crimped to technical specifications. Using Caterpillar hose with another manufacturer's couplings, or Caterpillar couplings with another manufacturer's hose, may result in unreliable, unsafe, or poorly performing hose assemblies. Caterpillar does not recommend or authorize this practice. For more information, refer to SAE J1273 Section 6.3 and ISO 17165-2 Section 6.3. |
|---|---|
| Material | Carbon Steel |
| Material Description | Plated Steel |
| Transmission and Hydraulic Oil Compatible Seals | 3K-0360 (3/4-16) |
| Oil and Fuel Compatible Seals | 238-5080 (3/4-16) |
| Coolant and DEF Compatible Seals | 6V-6609 (3/4-16) |
Compatible Equipment
- Generator Sets: C9, G3516, 3406C, 3406B, 3516C, 3512B
- Engines: C15, C27, C18
- Compactors: C-15
- Dozers: D11R, D11N, D7G
- Excavators: 3516E, 3516B, 320D FM, 3512C, 3456
- Wheel Loaders: R1700 II, R1700 XE, R1700G
- Off-Highway Trucks: 773E, 773D, 7495, 773
Additional information
| Machine Model | 320D FM, 3406B, 3406C, 3456, 3512B, 3512C, 3516B, 3516C, 3516E, 7495, 773, 773D, 773E, C-15, C15, C18, C27, C9, D11N, D11R, D7G, G3516, R1700 II, R1700 XE, R1700G |
|---|---|
| Equipment Type | Excavators, Wheel Loaders, Dozers, Off-Highway Trucks, Compactors, Engines, Generator Sets |
| Part Source | Genuine OEM |
