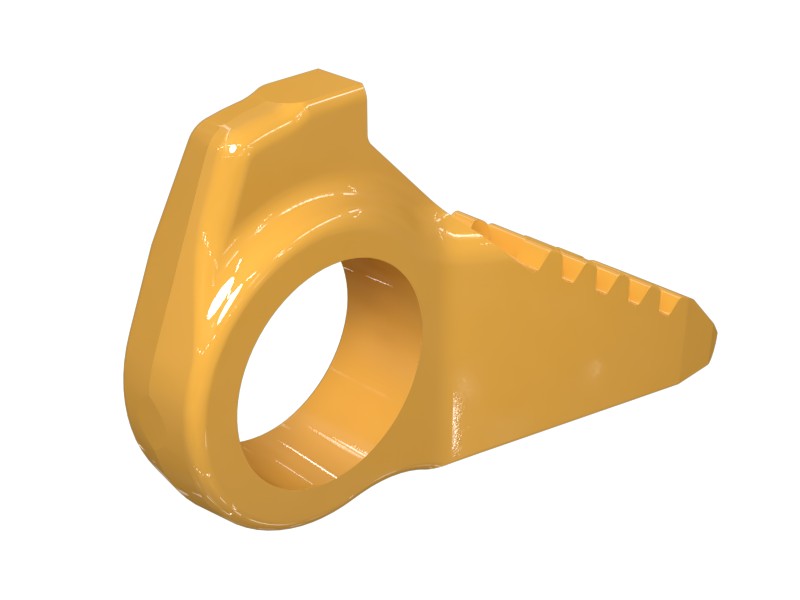

8E-7410 Track Link
Cat® Left Track Master Link Bushing End, used to connect and articulate the track chain to the machine's undercarriage system.
Description
The split master link of the track link makes it easy to remove and install the track without a master pin and master bushing. The split master link has the same wear life as a regular link, with the same strength and hardness, and is fully serviceable and reusable.
Specifications
| Material | Boron Steel |
|---|---|
| Track Pitch | 203.2 mm (8 in) |
| Wear Sensor | No |
| UC System – Designed For | Heavy Duty |
| Master Link Type | 5 Tooth Master |
| Main Bolt Thread | 0.75 |
| Bolt Hole Diameter | 21.5 mm (0.846 in) |
| Lug Thickness | 0 mm (0 in) |
| Hole to Rail | 78 mm (3.071 in) |
| Bushing End Bar Thickness | 34 mm (1.339 in) |
| Track Link Crown Height | 0 mm (0 in) |
| Steel Grade | 1E1287 |
| Pin Retention System | Press Fit |
| Overall Height | 132 mm (5.197 in) |
| Bushing Bore Diameter | 70 mm (2.756 in) |
Compatible Equipment
- Track Loaders: 963, 963K, 963D
- Cold Planers: PL72
- Dozers: D6R II, D6T LGP, D6R, D6T, D6R III, D6R LGP, D6R XL
- Excavators: 325C L
