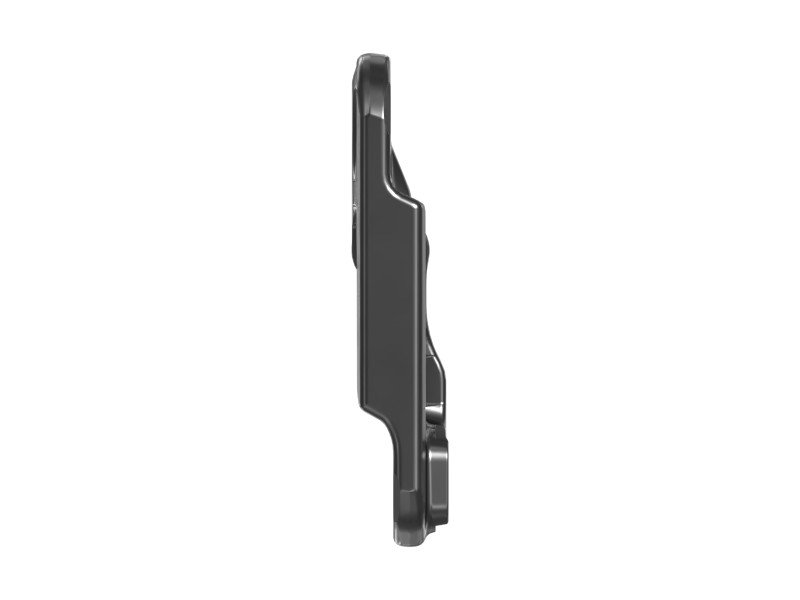

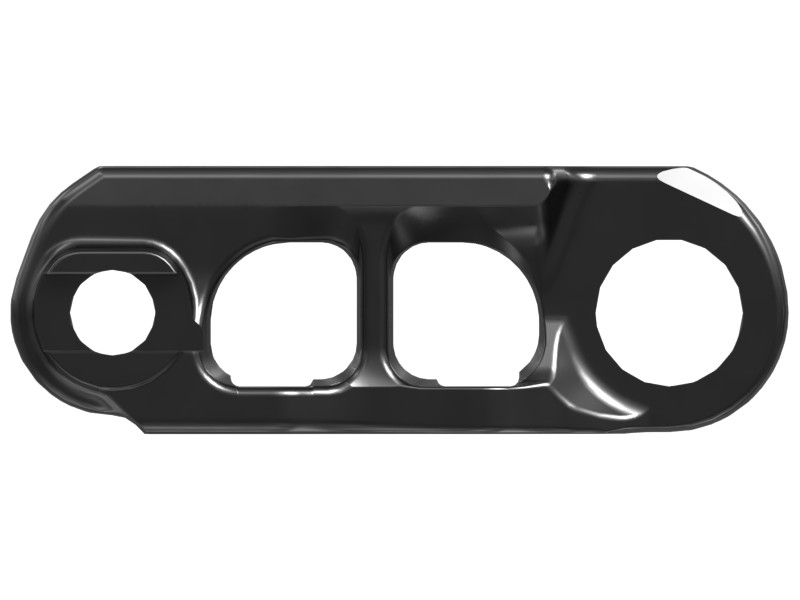

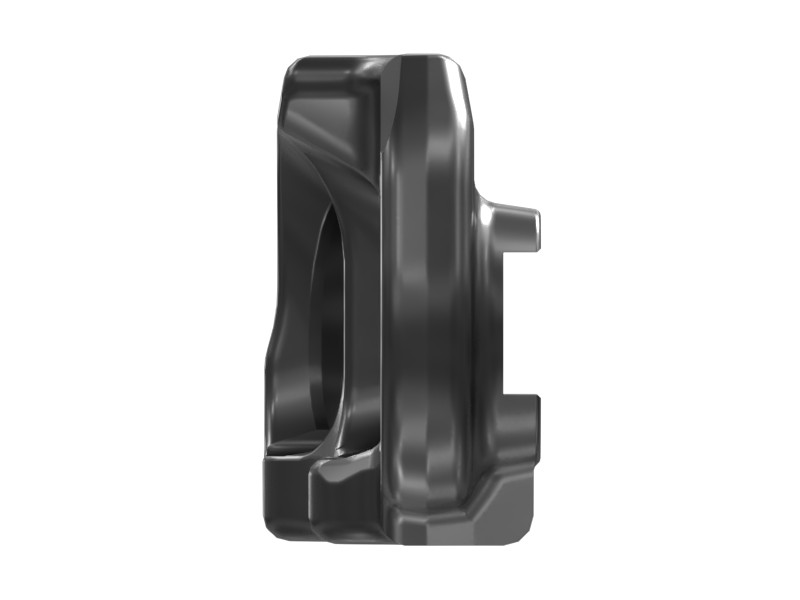

136-2405 Right Grease Lubricated Master Track Link
Cat® Right Grease Lubricated Master Track Link
Description
The track master link makes it easy to remove and install the track without a master pin and master bushing.
Specifications
| Track Pitch | 154 mm (6.1 in) |
|---|---|
| Bolt Size | 14.2 mm (14.2 in) |
| Main Bolt Thread | M14 |
| Master Link Type | Slip Fit Master |
| Track Link Crown Height | 0 mm (0 in) |
| Bushing Bore Diameter | 41 mm (1.614 in) |
| Bushing End Bar Thickness | 14.8 mm (0.583 in) |
| Bolt Hole Diameter | 14.2 mm (0.559 in) |
| Track Pin Bore Diameter | 23.75 mm (0.935 in) |
| Pin End Bar Thickness | 24 mm (0.945 in) |
| Pin Retention System | Press Fit |
| Overall Height | 74 mm (2.913 in) |
| Steel Grade | 1E0669 |
| Rail to Pin Boss Outside Diameter | 23.5 mm (0.925 in) |
| Hole to Rail | 40.5 mm (1.594 in) |
| UC System – Designed For | Heavy Duty |
| Wear Sensor | No |
Compatible Equipment
- Mini Excavators: 308, 308E2, 308.5, 307D, 307B, 307C, 307E2, 307
- Excavators: 308D, 307E, 308E, 307.5
