Description

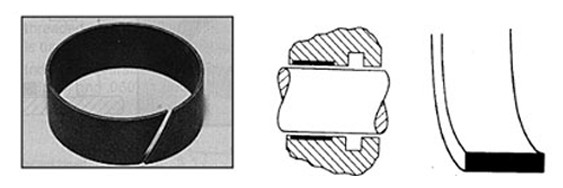

The wear ring helps prevent metal-to-metal contact between the rod and the cylinder wall, reducing wear and extending cylinder life. The wear ring has a scarf cut to provide tolerance and is typically located in the tilt cylinder head, seated in a groove. The rod slides inside the wear ring, which helps guide and support the rod as it moves back and forth.
Attributes
- Corrosion resistant to withstand exposure to harsh environments
- Built to exact specifications for durability and reliability
Applications
The wear ring is used to reduce friction between the rod and the cylinder head, improving tilt cylinder efficiency.
Specifications
| Material | Nylon, 6, 6/12, 6/6 Plastic |
|---|---|
| Groove Diameter – B (+/- 0.0254 mm) | 170.18 mm |
| Groove Width – A (+/- 0.003 in) | 2.27 in |
| Groove Width – A (+/- 0.0762 mm) | 57.75 mm |
| Groove Diameter – B (+/- 0.001 in) | 6.70 in |
| Rod Diameter | 165.10 mm (6.50 in) |
Compatible Equipment
- Wheel Excavators: MD6200
Additional information
| Machine Model | |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
