Description

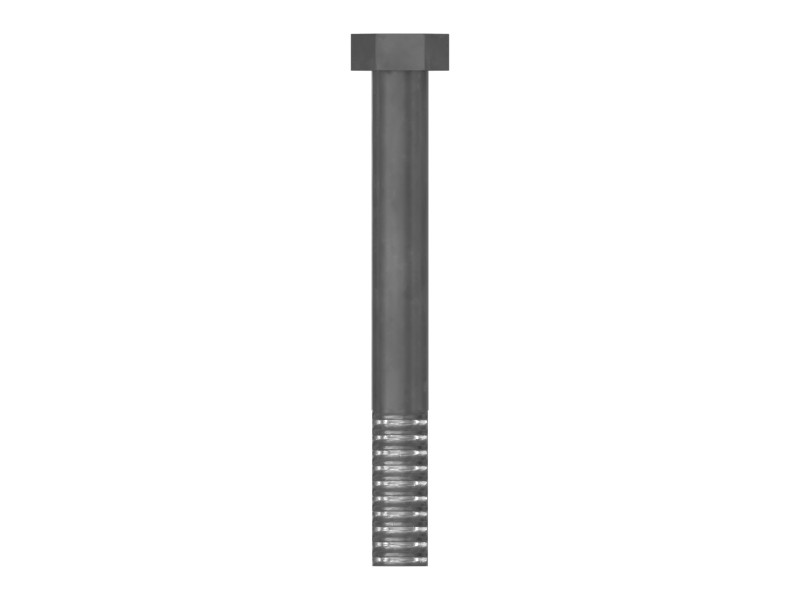

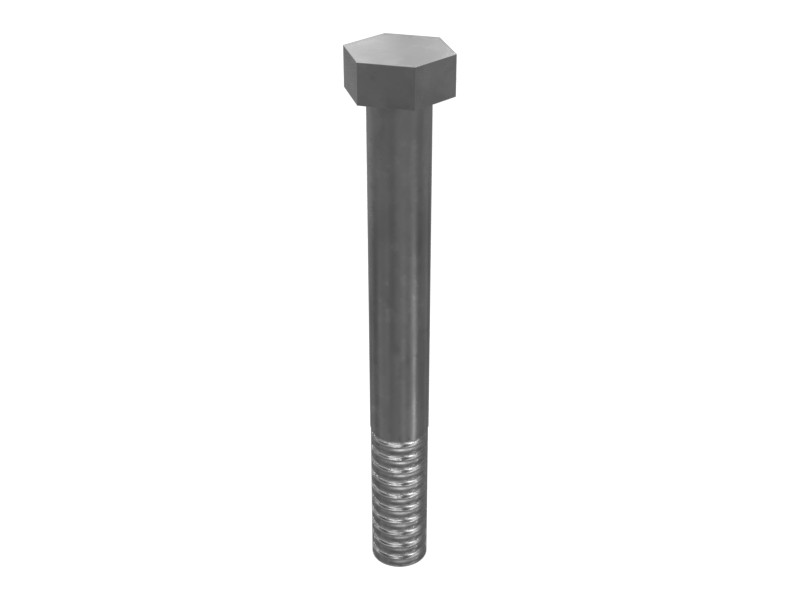

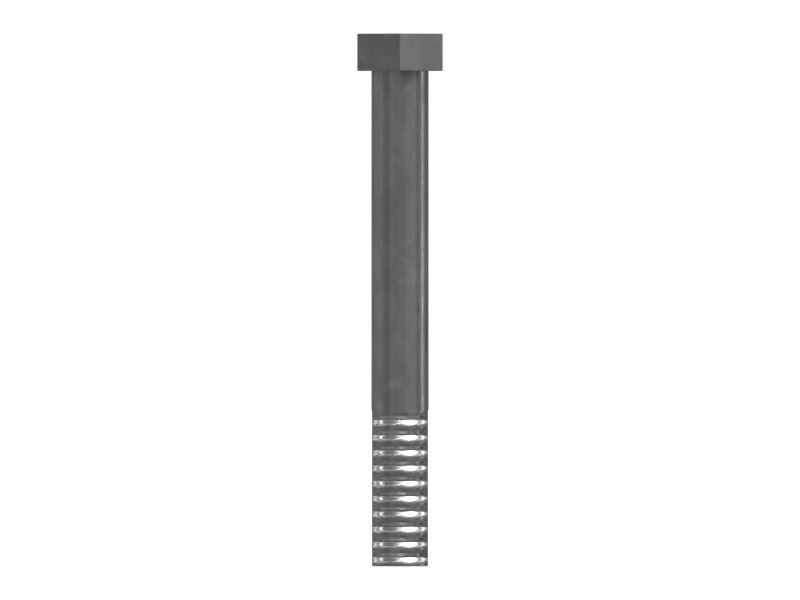

Track bolts are used to secure track shoes to the link assembly.
Specifications
| Thread Direction | RH |
|---|---|
| Thread Size | M16 mm (0 in) |
| Locking Feature | None |
| Bolt Size | M16 mm (0.6299 in) |
| Class or Grade | ISO 898-1 Class 10.9 |
| Thread Size (Diameter × Pitch) | M16X2 mm |
| Bolt Length | 140 mm (5.512 in) |
| Bolt Type | Hex Head |
| Coating | Zinc Flake |
| Material | Alloy Zinc |
| Handle Length | 96 mm (3.78 in) |
Compatible Equipment
- Generator Sets: C7.1, 3512B
- Track Loaders: 982, 993, 972
- Cold Planers: TH417D
- Compactors: CB16, CS78B, CS74B, CS68B, CS56B, CB-434D, CB-534D, CS54B, CS79B, CS12, CS11, CB10, CB15, CB13, CS-54B, CS64B
- Engines: C32
- Excavators: 390D L, 374D L, 349D2, 349D2 L, 349D, 390F L, 329D, 320D2, 320D, 336D2, 329D2 L, 326D2, 326D2 L, 329D2, 336D, 308D, 330D L, 6060, 345C, 6015, 385B, 385C L, 345D L, 385C, 365C, 365B L, 6015B, 345B, 365B, 349E L VG, 349E L, 345C L, 390D, 349D L, 385C FS, 349E, 6020B, 345D, 350 L, 365C L, 320C, 329D L, 328D LCR, 323D2 L, 325D, 325D L, 323D2, 320D FM, 325C, 323D L, 320D GC, 336D L, 320E, 329E, 330D2 L, 329E L, 336E L, 336D2 L, 320B, 325C L, 320D RR, M325D L MH, 320D L, 326D L, 320D2 L, 320D2 GC, 324D L, 324D, 314C, 314D CR, 330D2, 330D, 6030, 335F LCR, 6040, 323D, 320C L, 313D2, 314D LCR
- Asphalt Pavers: AP655F, AP-600D, AP655F L
- Skid Steer Loaders: 236D3, 239D3, 246D3, 259D3, 313D2 LGP, 242D3, 262D, 246D, 232D, 279C, 289D3, 299D3 XE, 232D3, 262D3, 249D3, 272D3 XE, 226D3, 272D3, 24, 262C, 246C, 236D
- Motor Graders: 18, 16, 16M, 14, 14M, 16M3
- Wheel Excavators: M322D, M317D2, M315D2, M313D, M315D, M320D2, MD6310, M320, MD6250
- Dozers: D6R, D6R III, D6T LGP, D6T, D6R XL, D6R II, D6R LGP
- Compact Track Loaders: 279D3, 299D3
- Wheel Loaders: 966H, 950H, 966F, 928G, 980H, 966K, 990H, 924K, 988H, R1700K, 926M, 980, R1700 XE, 950, 938M, 950 GC, 980G, 938K, 972H, 966
- Off-Highway Trucks: 735, 794 AC, 7495, 798 AC, 770G, 796 AC, 725, 772G, 740 GC, 725C2, 740, 797F, 740B, 745, 789, 745C, 730
