Description
The bolt material hardness and thread design provide high strength and resistance to bolt thread stripping.
Specifications
| Class or Grade | ISO 898-1 Class 10.9 |
|---|---|
| Thread Direction | RH |
| Thread Size | M24 mm (0 in) |
| Locking Feature | None |
| Thread Size (Diameter × Pitch) | M24X3 mm |
| Bolt Length | 160 mm (7.087 in) |

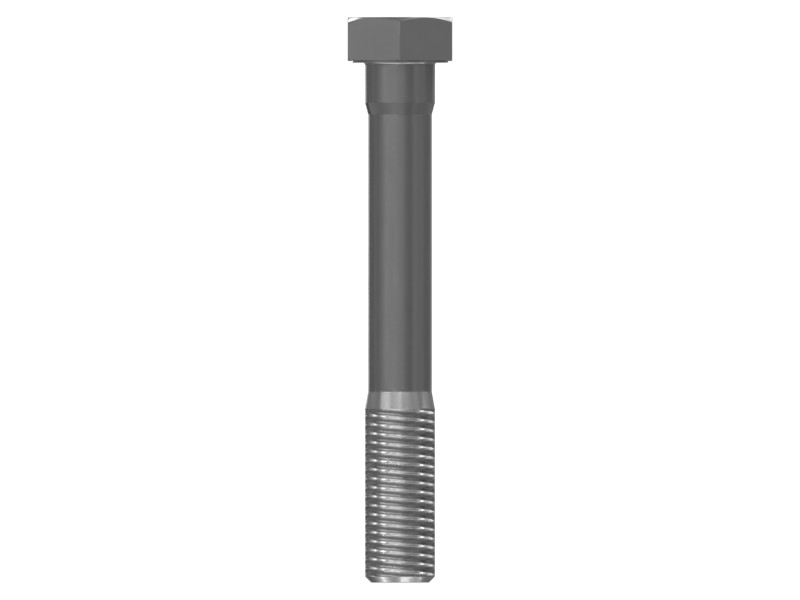

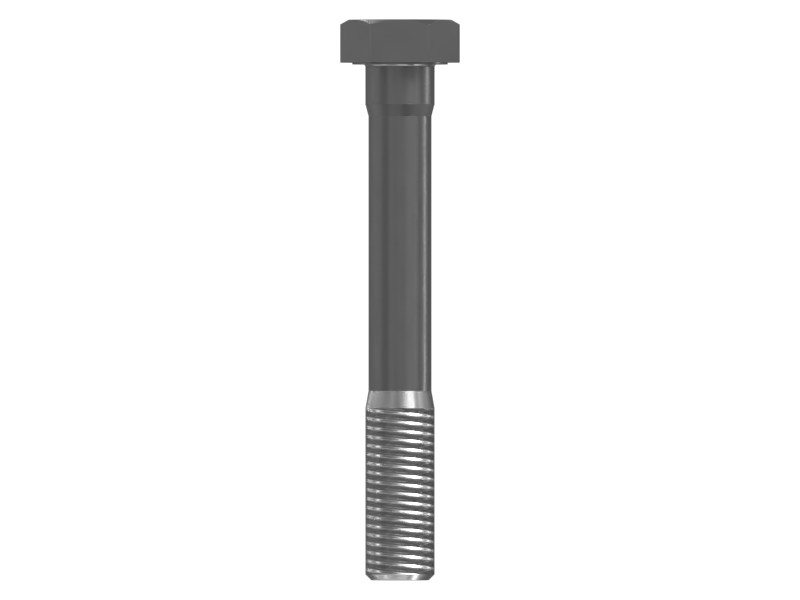

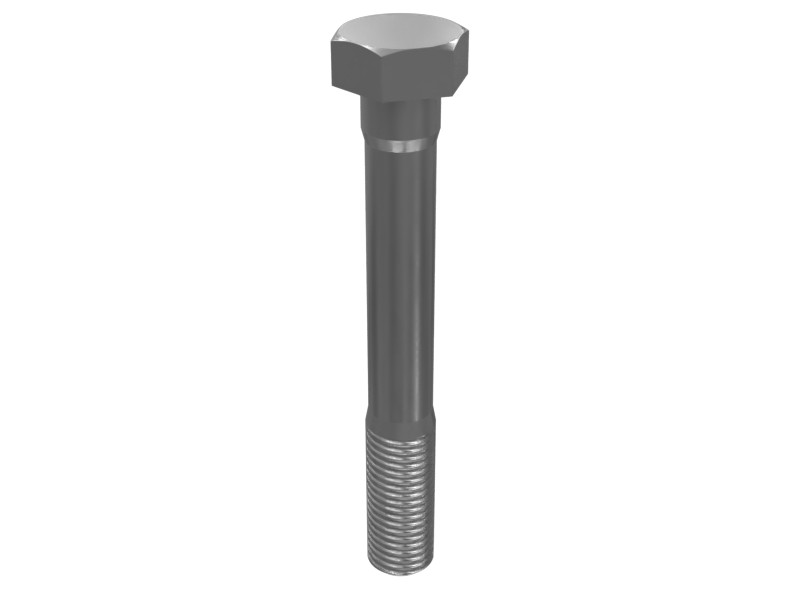

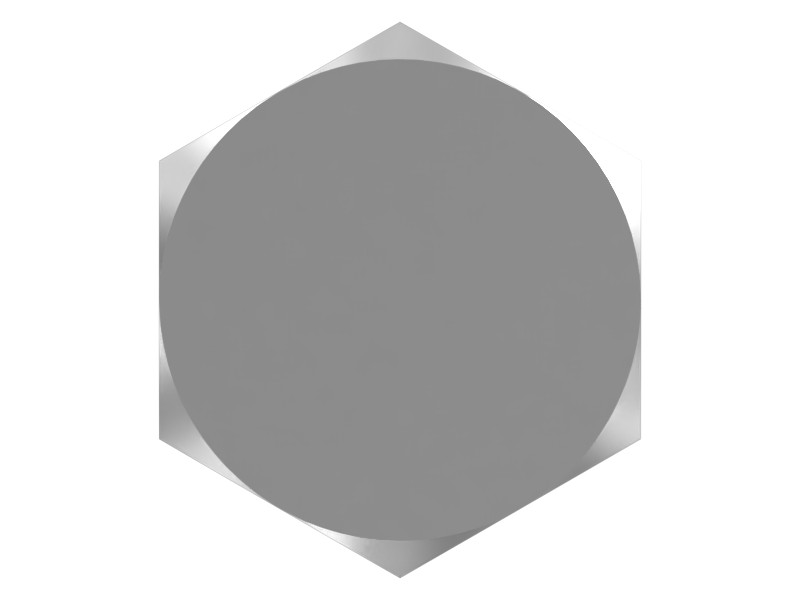

| Bolt Type | Hex Head Bolt |
| Coating | Zinc Flake |
| Material | Low Alloy Steel |
| Handle Length | 120 mm (4.724 in) |
Compatible Equipment
- Track Loaders: 826H, 995, 826G, 824G, 834H, 994K
- Motor Graders: 14, 16M3, 120, 18, 14M, 16, 16M
- Compactors: CS12 GC, CP56B, CP12 GC, CS68B, CS56B, CS78B, CS74B, CP11 GC, CS12, 834K, CS11, CS-563E, CS-54, CB-434D, CS-56, CS-583D, CP54B, CS79B, CS54B, CS-533E, CS-54B, CS64B
- Wheel Excavators: MD6250, MD6310
- Engines: C175-16, C18
- Dozers: D10, D10T2, D3K2 LGP, D10R, D10N, D11, D5M, D5N, D5K LGP, D6M, D5K XL, D5K2 XL, D1, D10T
- Excavators: 320D FM, 320C, 432, 365B, 365B L
- Wheel Loaders: RM500B, 924GZ, 980H, 928G, 928HZ, 980G, 834, 924HZ, R2900 XE, 938K
- Off-Highway Trucks: 7495, 730, 740, 798 AC, 773
- Asphalt Pavers: AP-600D, AP655F, AP655F L
- Skid Steer Loaders: 24
Additional information
| Machine Model | 120, 14, 14M, 16, 16M, 16M3, 18, 24, 320C, 320D FM, 365B, 365B L, 432, 730, 740, 7495, 773, 798 AC, 824G, 826G, 826H, 834, 834H, 834K, 924GZ, 924HZ, 928G, 928HZ, 938K, 980G, 980H, 994K, 995, AP-600D, AP655F, AP655F L, C175-16, C18, CB-434D, CP11 GC, CP12 GC, CP54B, CP56B, CS-533E, CS-54, CS-54B, CS-56, CS-563E, CS-583D, CS11, CS12, CS12 GC, CS54B, CS56B, CS64B, CS68B, CS74B, CS78B, CS79B, D1, D10, D10N, D10R, D10T, D10T2, D11, D3K2 LGP, D5K LGP, D5K XL, D5K2 XL, D5M, D5N, D6M, MD6250, MD6310, R2900 XE, RM500B |
|---|---|
| Equipment Type | Excavators, Wheel Excavators, Wheel Loaders, Track Loaders, Skid Steer Loaders, Dozers, Motor Graders, Off-Highway Trucks, Compactors, Asphalt Pavers, Engines |
| Part Source | Genuine OEM |
