Description

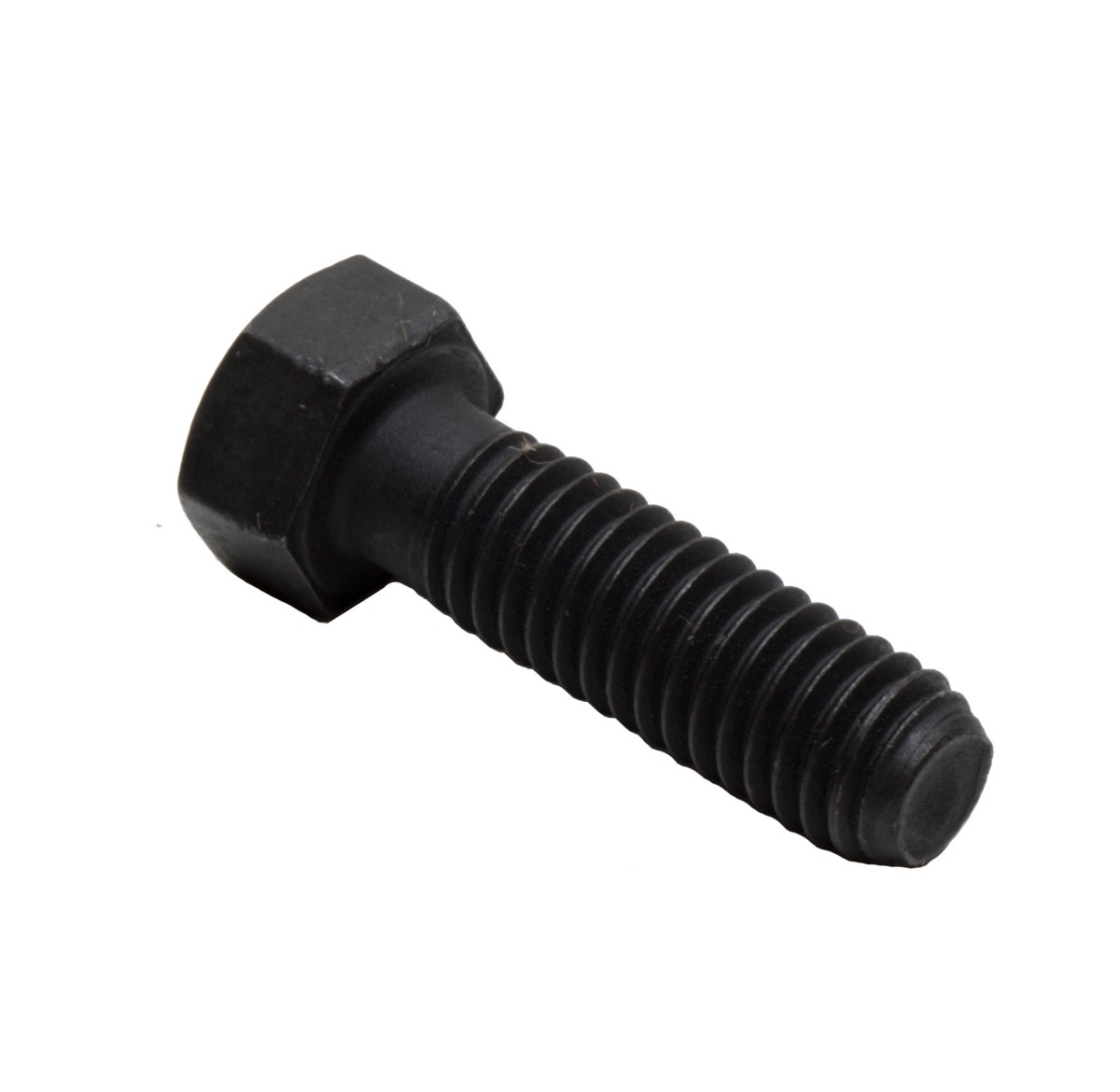

Cat bolts form a matched system with mating hardened washers and nuts to produce consistent, high clamping force
Specifications
| Thread Size | 1.000 mm (0.039 in) |
|---|---|
| Locking Feature | None |
| Thread Direction | RH |
| Class or Grade | SAE J429 Grade 8 (150 ksi) |
| Thread Size (Diameter × Pitch) | 1.000×8 mm |
| Bolt Length | 241.3 mm (9 1/2 in) |
| Bolt Type | Hex Head Bolt |
| Coating | Zinc Plated |
| Handle Length | 177.8 mm (7 in) |
| Material | Carbon Steel |
Compatible Equipment
- Dozers: D11T, D10R, D11R, D10N, D11, D11N, D7R II, D7H, D9R, D9T, D7R
- Off-Highway Trucks: 777D
