Description

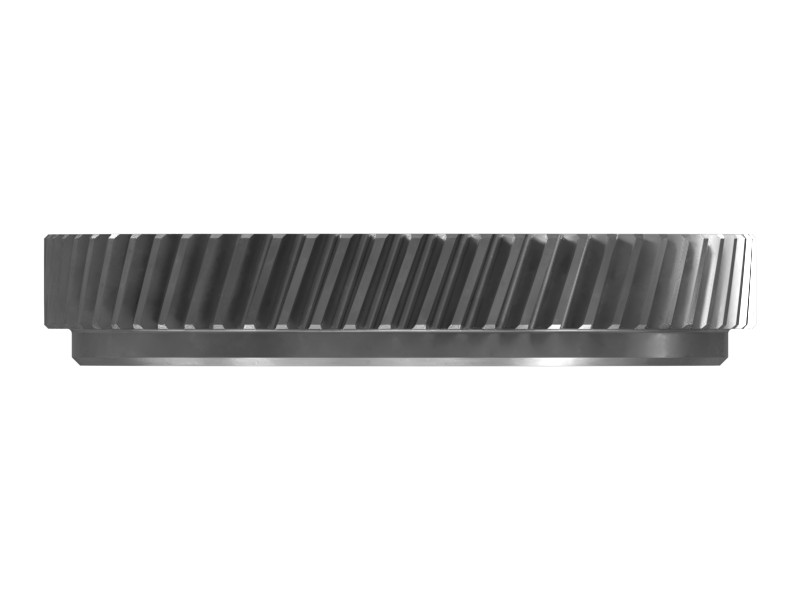

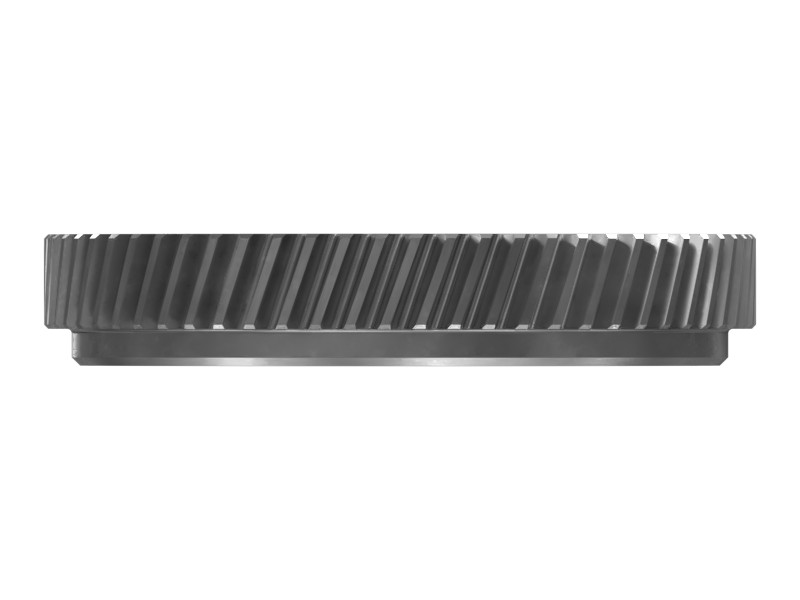

The fuel pump drive gear is part of the engine fuel system and is responsible for transferring power from the engine crankshaft to the fuel pump. It is usually a gear mounted on the crankshaft that meshes with a corresponding gear on the fuel pump. It uses an interlocking mechanism to move fluid by repeatedly enclosing a fixed volume, and uses a cyclic suction action to transfer the fluid mechanically.
Features
- Rockwell hardness of 3.5-3.7 for higher wear resistance.
- Forged for outstanding strength.
Applications
The fuel pump drive gear is responsible for transmitting power to the crankshaft in the governor and fuel pump drive.
Specifications
| Inside Diameter | 143 mm (1.5 in) |
|---|---|
| Length | 3.83 in |
| Material | Low Alloy Steel |
| Number of Teeth | 54 |
| Outside Diameter | 179 mm (4.72 in) |
Compatible Equipment
- Generator Sets: 3406C, 3406B
- Track Loaders: 824C, 826G, 824G
- Dozers: D8N, D8R
- Wheel Loaders: 980G
Additional information
| Machine Model | |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
