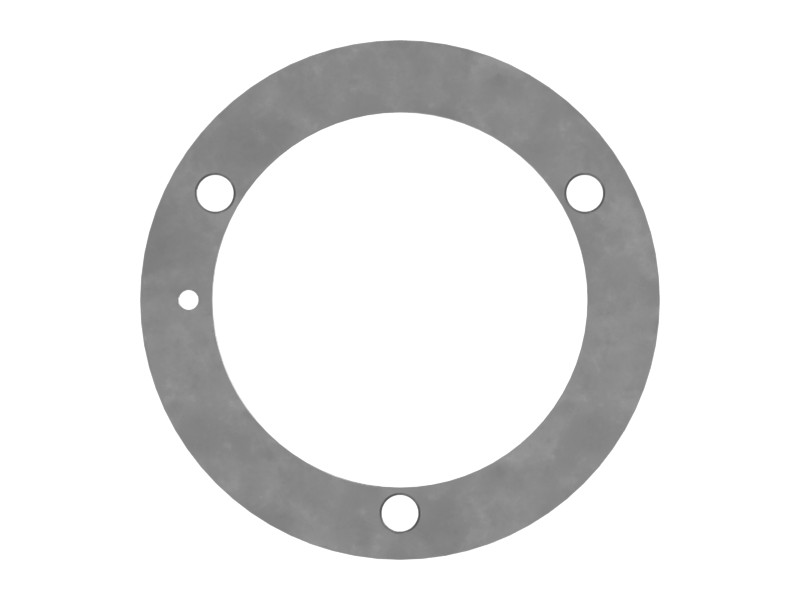

117-8557 7.5 mm Thick Sealing Plate
Cat® sealing plate, 132.6 mm outside diameter, for the adapter in the front gear, prevents any fluid leakage and ensures efficient front gear operation
Description
The Cat sealing plate comes with an O-ring to provide a tight seal between the adapter and the thrust plate in the Cat engine front gear assembly. Cat service parts make it easy to repair and replace system components in Cat heavy-duty equipment, but correct installation is still required to maximize component life.
Features
- Steel sealing plate
- 3-Hole Mounting
Applications
Cat sealing plates are used to service the front gear assembly of heavy-duty engine systems. Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Material | Carbon Steel |
|---|---|
| Inside Diameter | 96 mm (3.78 in) |
| Material Description | Steel |
| Outside Diameter | 132.6 mm (5.22 in) |

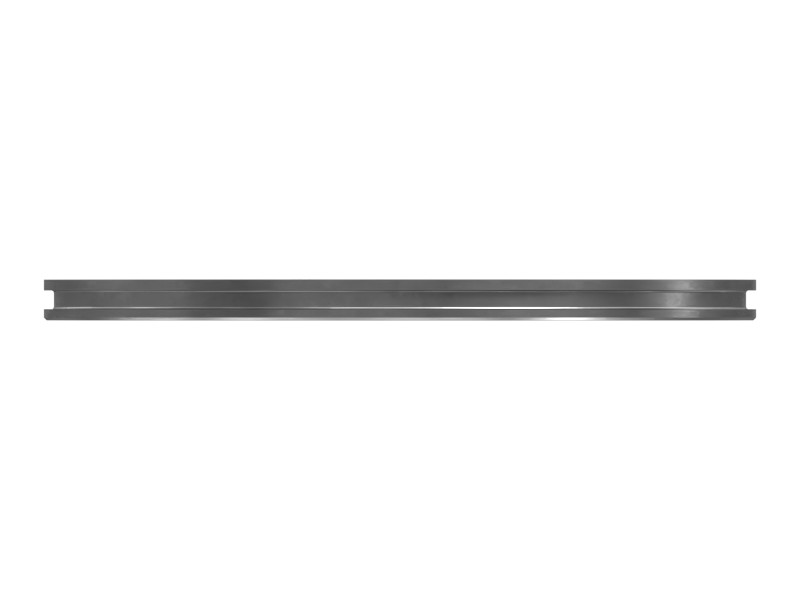

| Thickness | 7.5 mm (0.295 in) |
Compatible Equipment
- Dozers: D8R, D8N
- Excavators: 385B, 621G, 3456
- Wheel Loaders: 980G, 988G
- Off-Highway Trucks: 735, 740
Additional information
| Machine Model | |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
