Description

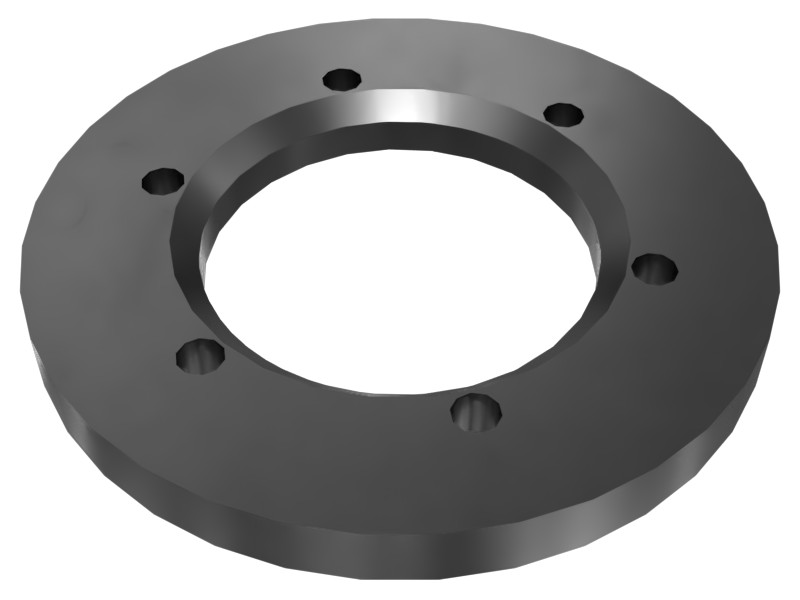

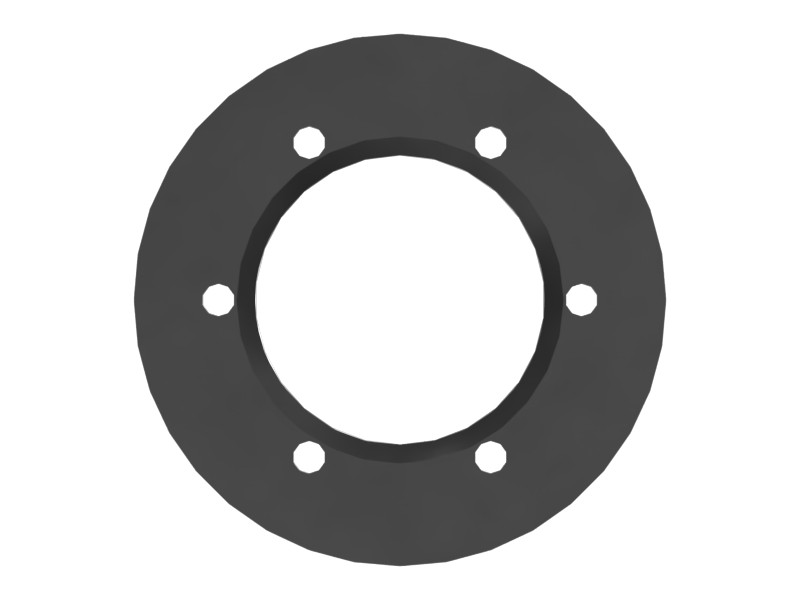

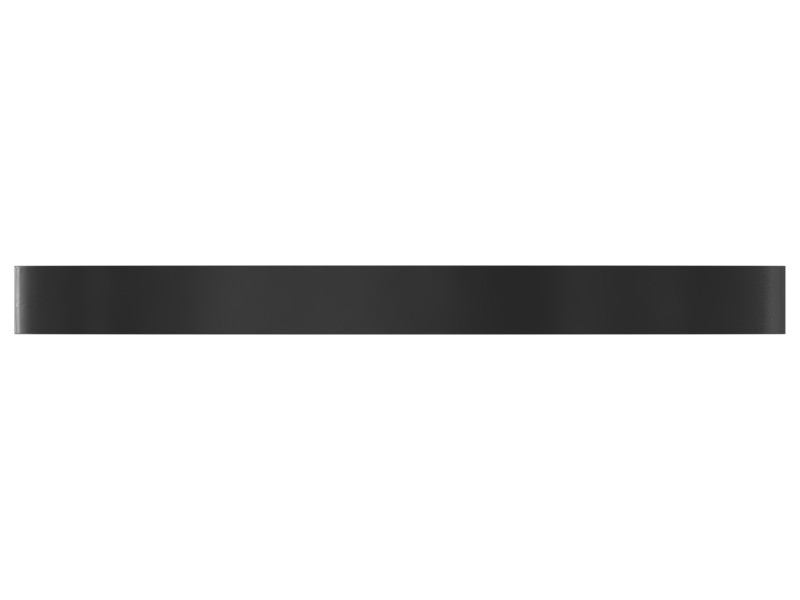

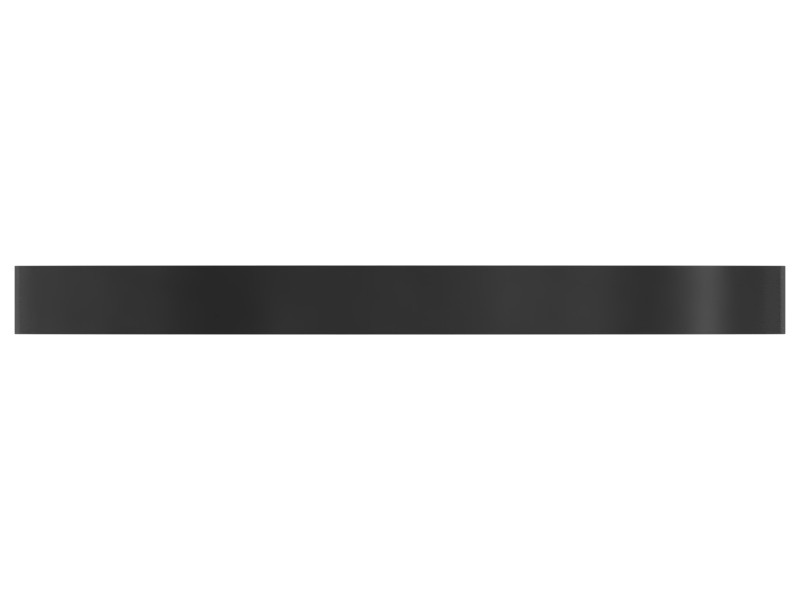

The thrust washer is a component designed to withstand axial loads applied along the axis of a component. It is commonly used in assemblies where compressive forces are applied, such as camshafts and fuel pumps. It is made of a durable material such as steel and is designed to withstand the high forces generated by the engine.
Features
- Comes with 6 mounting holes for use with 3/8 fasteners
- Rockwell hardness of 30N HRC for high wear resistance.
- Absorbs shock and vibration, providing a stable base for moving parts.
- Hardened to provide high strength and impact resistance.
Applications
The thrust washer is used to bear excessive axial loads in camshafts and fuel injection pumps.
Specifications
| Hole Size | 10.5 mm (0.41 in) |
|---|---|
| Inside Diameter | 92.5 mm (3.64 in) |
| Material | Low Alloy Steel |
| Outside Diameter | 170 mm (6.69 in) |
| Thickness | 15 mm (0.59 in) |
Compatible Equipment
- Motor Graders: 3606
Additional information
| Machine Model | |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
