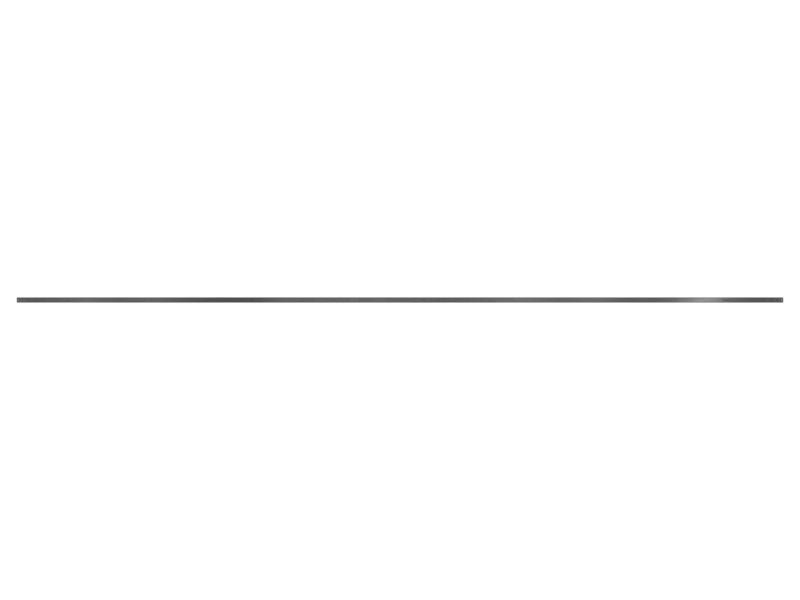

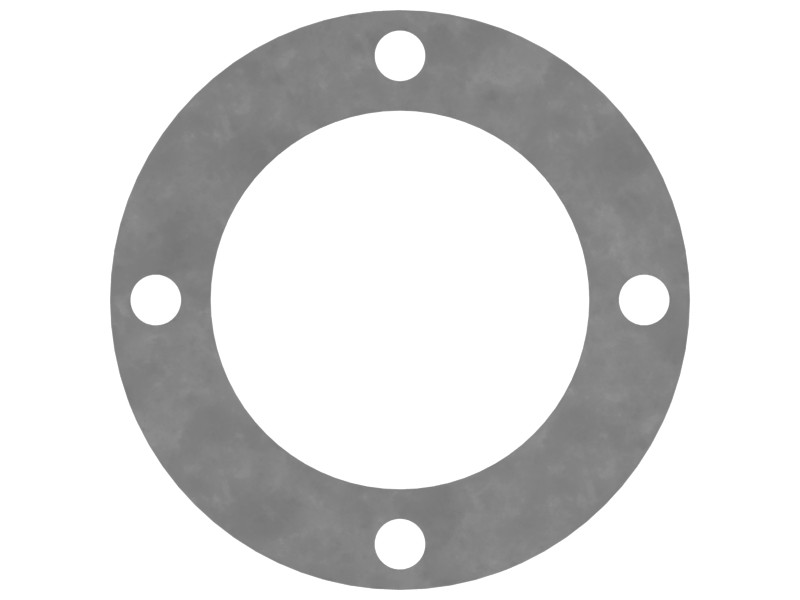

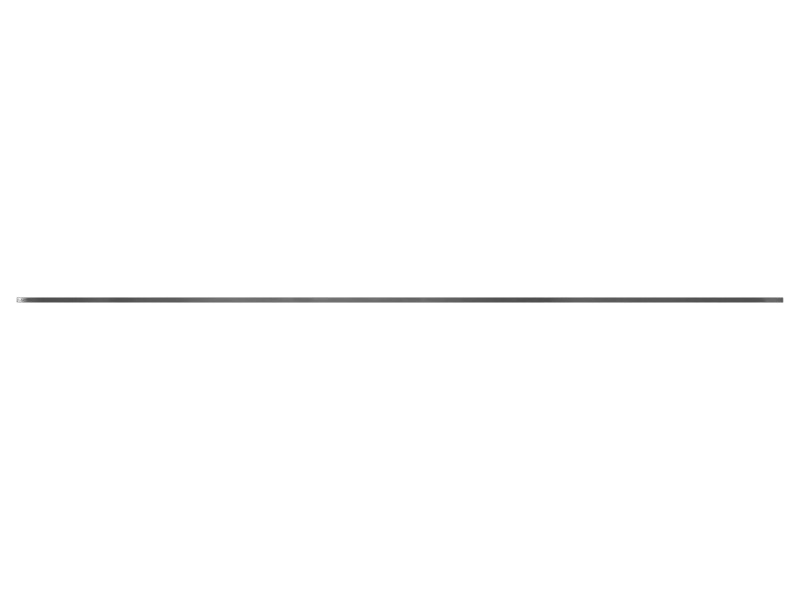

086-0416 1 mm Thick Bucket Adjuster Round Steel Shim
Cat® 1 mm Thick Bucket Adjuster Round Steel Shim
Description
Round steel shims are used to fill gaps or spaces between objects or surfaces. Round steel shims are versatile and are commonly used where precise adjustment, alignment, or leveling is needed. They are designed in different shapes, sizes, and materials to meet specific needs, which is important for achieving accurate results. They are used for tight fits between machined parts and to securely hold mechanical components in place to prevent excessive wear of components and fasteners. Steel shims are built to provide a long wear life and therefore offer better protection.
Features
- Compensator adjusts the tolerance between mating parts
- A cost-effective solution compared to other alignment or clearance adjustment methods
- Reduces excessive wear on parts and fasteners
- High wear resistance
- Designed to withstand heavy loads and high pressure
- Distributes load evenly across multiple locations, reducing stress concentrations and avoiding localized damage
Applications
This round steel shim is used in the bucket adjuster assembly to tighten the outer nut until the nut extends 1 mm beyond the end of the retaining bolt.
Specifications
| Inside Diameter | 104 mm (4.09 in) |
|---|---|
| Material Description | Carbon Steel |
| Outside Diameter | 159 mm (6.26 in) |
| Thickness | 1 mm (0.04 in) |
| Weight | 0.09 kg (0.19 lb) |
Compatible Equipment
- Wheel Excavators: M315, M315GC
- Excavators: 313 GC, 313, 316 GC, 312E, 314C, 312D, 325D L, 312D2 L, 312D2, 312D L, 320D L, 320D2 L, 330D2 L, 312C L, 311D LRR, 313D2, 311C, 314D LCR, 320E, 325C, 325B L, 329E L, 313D2 GC, 312C, 320, 312F, 312D2 GC, 323, 315 GC, 313 GX, 326, 313F L, 324D L, 311B, 315, 329E, 329D L, 323D2 L, 312E L, 320D2 GC, 313D2-GC, 314D CR, 315F LCR, 313F LGC, 313D, 323 GX, 316 GX, 320D2, 326D2, 326D2 L, 320D
- Wheel Loaders: M314
- Skid Steer Loaders: 313D2 LGP
Additional information
| Machine Model | 311B, 311C, 311D LRR, 312C, 312C L, 312D, 312D L, 312D2, 312D2 GC, 312D2 L, 312E, 312E L, 312F, 313, 313 GC, 313 GX, 313D, 313D2, 313D2 GC, 313D2 LGP, 313D2-GC, 313F L, 313F LGC, 314C, 314D CR, 314D LCR, 315, 315 GC, 315F LCR, 316 GC, 316 GX, 320, 320D, 320D L, 320D2, 320D2 GC, 320D2 L, 320E, 323, 323 GX, 323D2 L, 324D L, 325B L, 325C, 325D L, 326, 326D2, 326D2 L, 329D L, 329E, 329E L, 330D2 L, M314, M315, M315GC |
|---|---|
| Equipment Type | Excavators, Wheel Excavators, Wheel Loaders, Skid Steer Loaders |
| Part Source | Genuine OEM |
