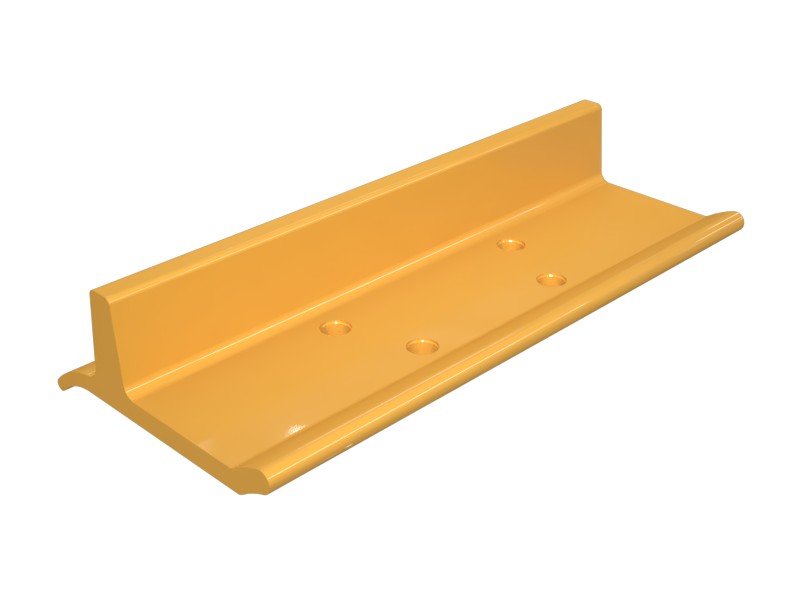

Description
Track shoes provide flotation and traction for the machine while protecting the link group.
Attributes
Extreme duty track shoes should be used whenever moderate duty track shoes bend or crack, or when link life exceeds shoe life. Extreme duty track shoes have higher strength to resist bending and cracking, and have more wear material than moderate duty track shoes. Extreme duty track shoes are made of tough alloy steel.
Specifications
| Undercarriage System | HD |
|---|---|
| Connector Type | Regular |
| Hole Type | None |
| Shear | No |
| Main Bolt Thread | None |
| Abrasion Resistant Material | 0 ARM |
| Track Reinforcement System | None |
| Track Shoe Width | 610 mm (24 in) |
| Offset | None |
| Track Bolt Thread | 1 |
| Number of Grousers | Single |

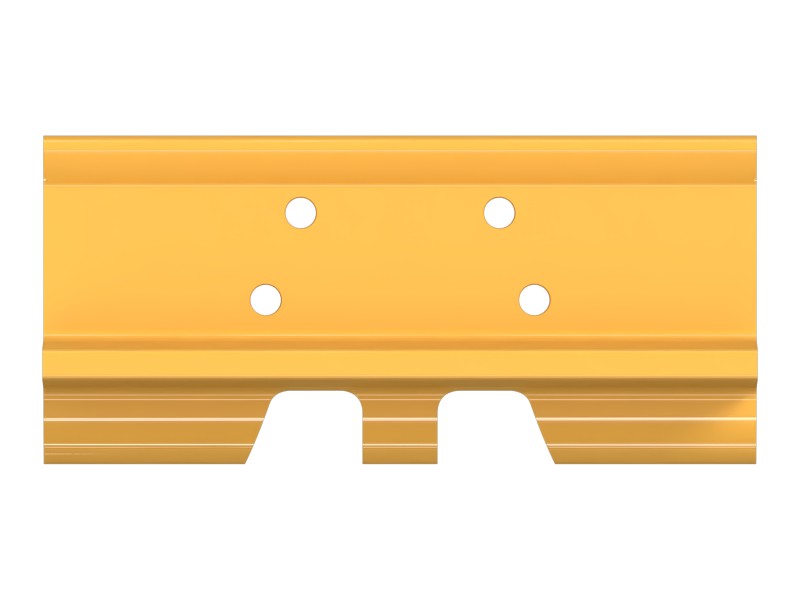

| Track Shoe Bolt Hole Spacing B | 170 mm |
| Plate Thickness | 19 mm (0.748 in) |
| Track Shoe Bolt Hole Spacing C | 230 mm |
| Track Shoe Bolt Hole Spacing A | 74.5 mm |
| Track Shoe Section 1E Specification | 1E1929 |
| Bolt Hole Diameter | 26.39 mm (1.039 in) |

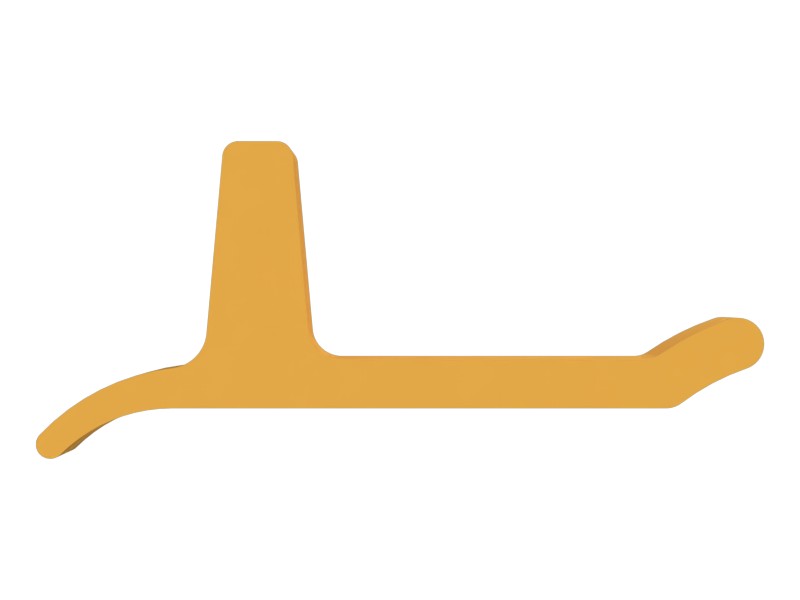

| Track Shoe Type | Extreme Duty, Single Grouser |
Compatible Equipment
- Dozers: D9T, D9N, D9R, D9
