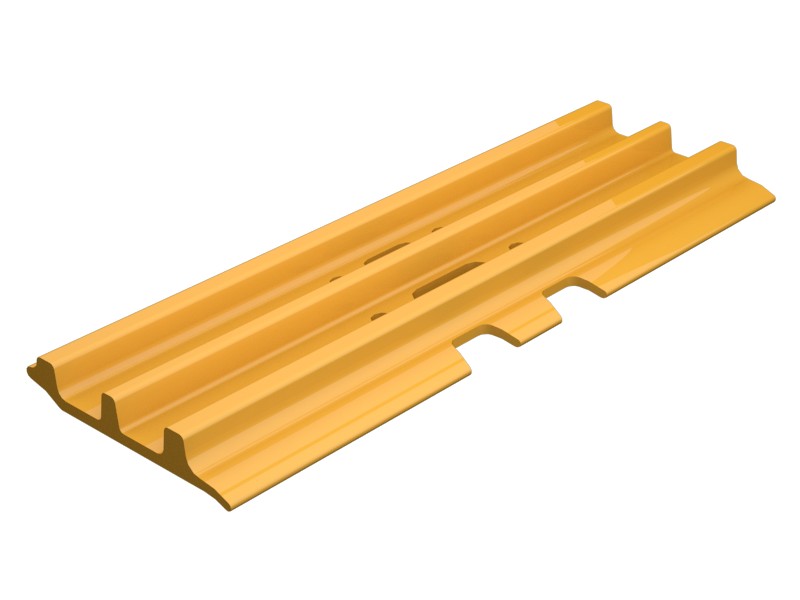

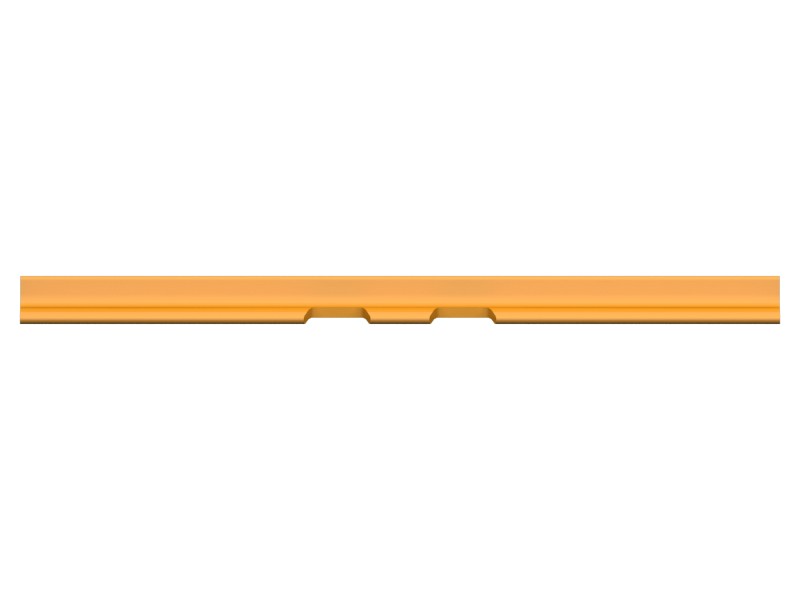

126-5067 Track Shoe
Cat® 750 mm wide 750 triple grouser track shoes can provide improved traction, stability, and undercarriage support
Description
Track shoes provide the machine with flotation and traction while protecting the link group.
Features

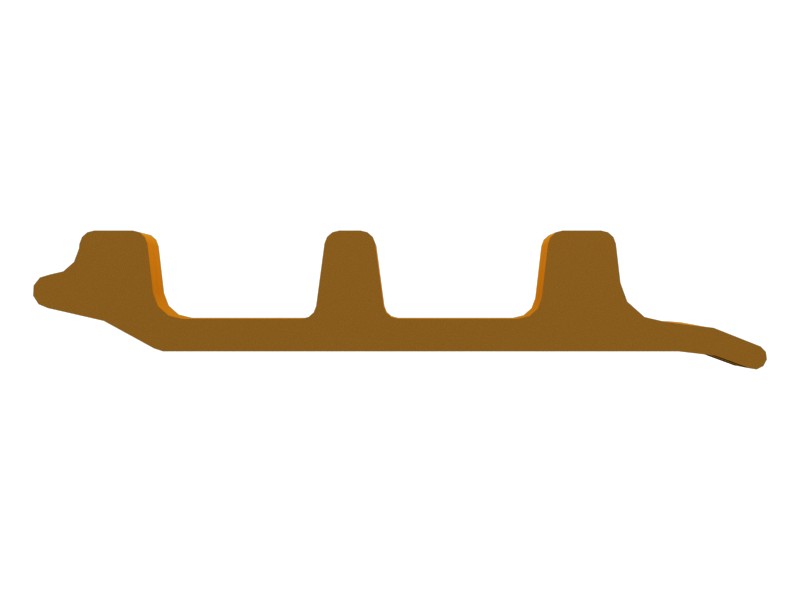

- Triple grouser track shoes provide less penetration and traction than single grouser track shoes, but offer better turning ability. Triple grouser track shoes are standard on track-type loaders and excavators because these machines require less turning resistance and greater maneuverability.

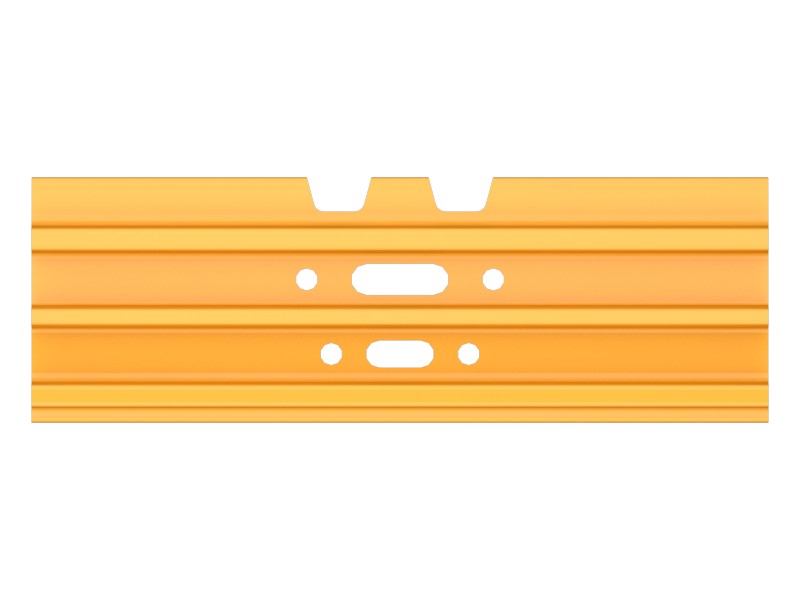

- Trapezoidal track shoes have a trapezoidal opening between the bolts that allows packed material to be released.
Specifications
| Material | Boron Steel |
|---|---|
| Plate Thickness | 11 mm (0.433 in) |
| Bolt Hole Diameter | 23 mm (0.906 in) |
| Track Shoe Bolt Hole Spacing C | 190 mm |
| Track Shoe Section 1E Specification | 1E1744 |
| Track Pitch | 215.9 mm (8.5 in) |
| Bolt Size | M22 mm (0.8661 in) |
| Track Shoe Bolt Hole Spacing B | 140 mm |
| Track Shoe Bolt Hole Spacing A | 76 mm |
| Track Shoe Width | 750 mm (29.5 in) |
| Track Shoe Type | Triple Grouser, Trapezoidal |
| Undercarriage System | HD |
| Track Bolt Thread | M22 |
| Hole Type | Slotted |
| Abrasion Resistant Material | 0 ARM |
| Number of Grousers | Triple |
| Shear | No |
| Track Reinforcement System | None |
| Offset | None |
| Connector Type | Regular |
| Main Bolt Thread | None |
Compatible Equipment
- Excavators: 330C L, 330C, 330 L, 330B, 325C
