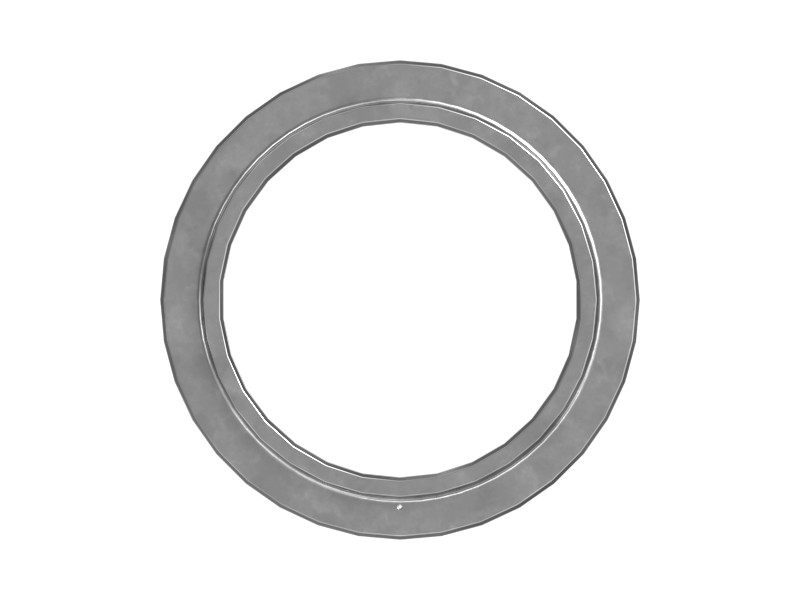

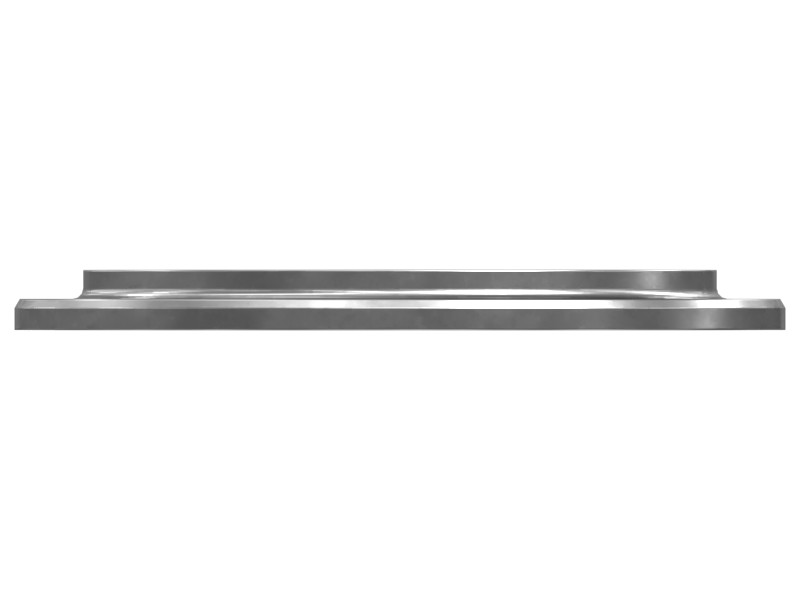

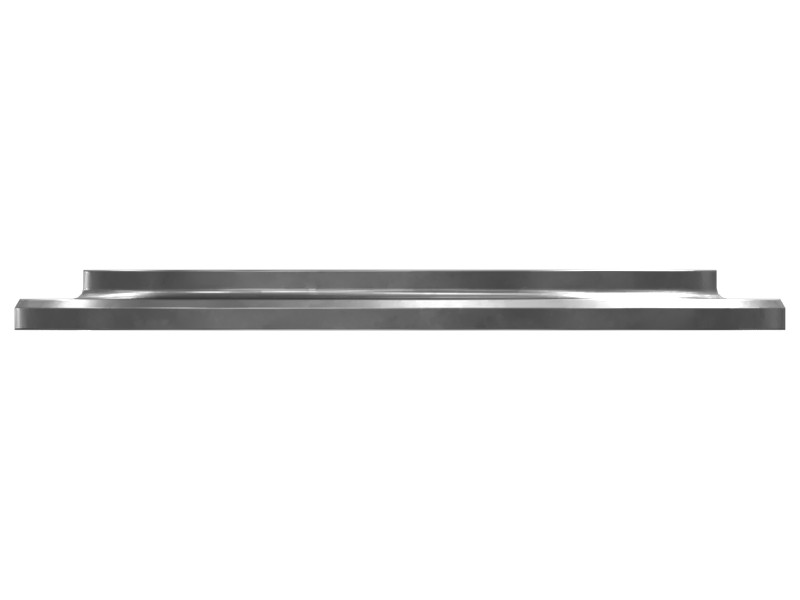

7T-1955 158.80 mm ID Wear Sleeve
Cat® torque converter wear sleeve reduces friction and wear, improving efficiency and extending service life
Description
Torque converter service part used to locate and retain the bearings and seals between the flywheel centering sleeve and the clutch carrier.
Features
- Material: Steel
- Inside Diameter: 159 mm (6.25 in)
Applications
Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Ferrule Inside Diameter | 158.8 mm (6.252 in) |
|---|---|
| Flange Diameter | 213 mm (8.386 in) |
| Overall Length | 16.5 mm (0.65 in) |
| Ferrule Outside Diameter | 192 mm (7.559 in) |
| Cross Hole | No |
| Flange Thickness | 8.5 mm (0.335 in) |
| Inside Diameter | 159 mm (6.25 in) |
| Outside Diameter | 213 mm (8.39 in) |
| Length | 17 mm (0.65 in) |
Compatible Equipment
- Generator Sets: 3512E, 3516C
- Track Loaders: 994K, 995
- Cold Planers: TH55-E70
- Excavators: 3516E
- Off-Highway Trucks: 789, 793, 793F, 789D, 793D
Additional information
| Machine Model | 3512E, 3516C, 3516E, 789, 789D, 793, 793D, 793F, 994K, 995, TH55-E70 |
|---|---|
| Equipment Type | Excavators, Track Loaders, Off-Highway Trucks, Cold Planers, Generator Sets |
| Part Source | Genuine OEM |
