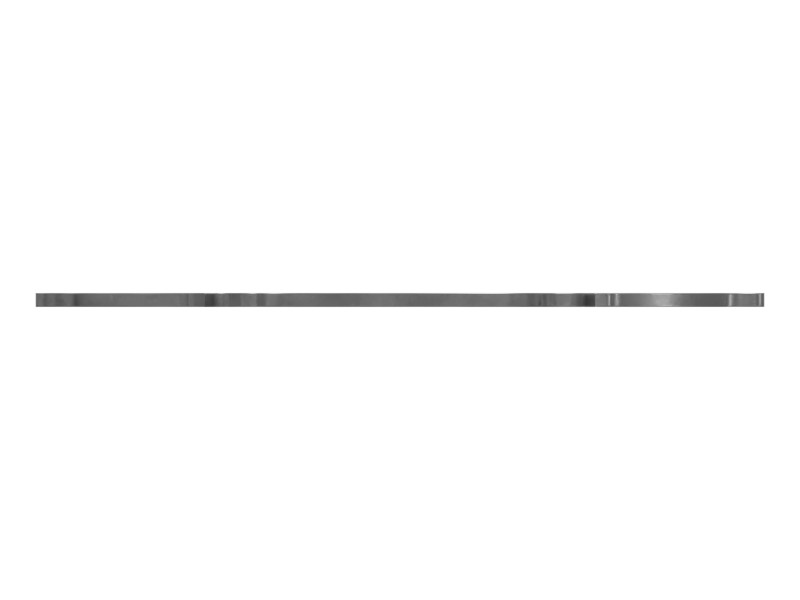

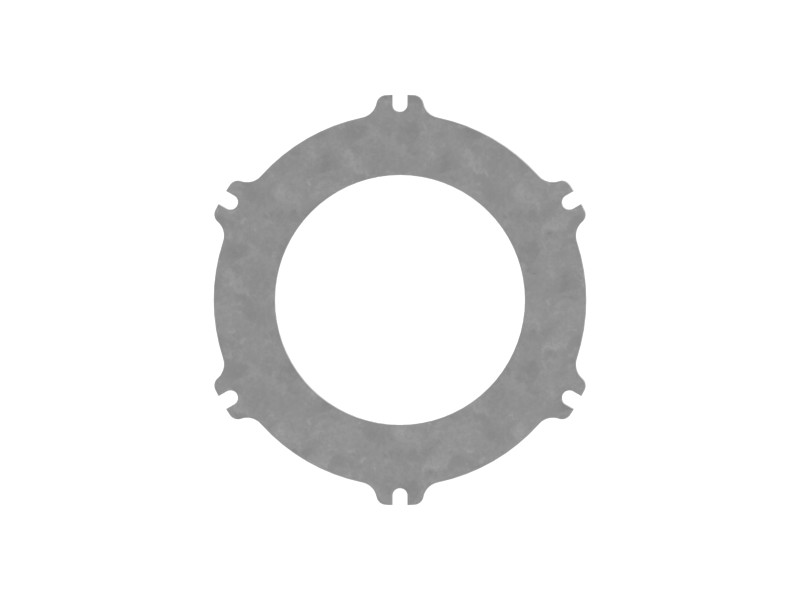

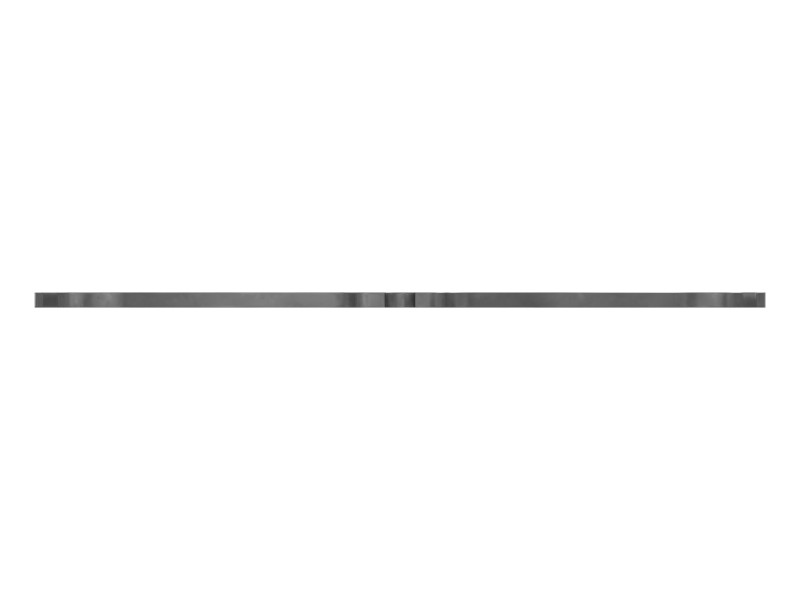

1S-0057 6.35 mm Thick Clutch Plate
Cat® Parking Brake Clutch Plate is activated by the parking brake lever and prevents the vehicle from moving while stopped.
Description
Cat powertrain components must withstand extremely high torque, high shock loads, and frequent direction changes and shifts. Cat designs and manufactures transmission and final drive components with these demands in mind, ultimately improving powertrain durability and performance over the life of the machine. The Cat clutch plate is a key component in the planetary gear group that powers the rugged Cat transmission, converting engine power into the precise combination of speed and force each machine requires.
Features
- Hardened steel clutch plate
- Six external flanges ensure an accurate OEM fit
- Inside Diameter: 209.55 mm (8.250 in)
- Thickness: 6.35 mm (0.250 in)
Applications
Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Inside Diameter | 209.55 mm (8.250 in) |
|---|---|
| Thickness | 6.35 mm (0.250 in) |
Compatible Equipment
- Motor Graders: 120, 16
- Track Loaders: 992
- Wheel Loaders: 980G, 834, 836, 972G, 988F, 988G, R1700 II
Additional information
| Machine Model | |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
