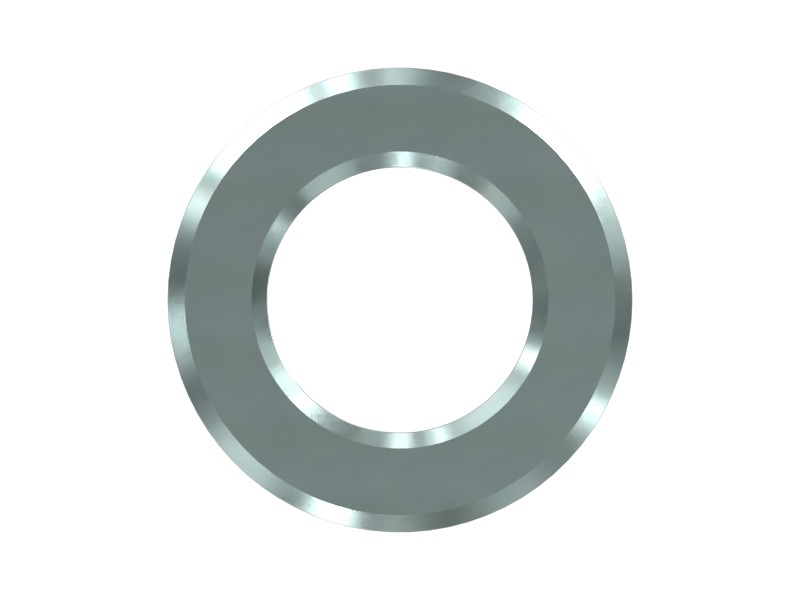

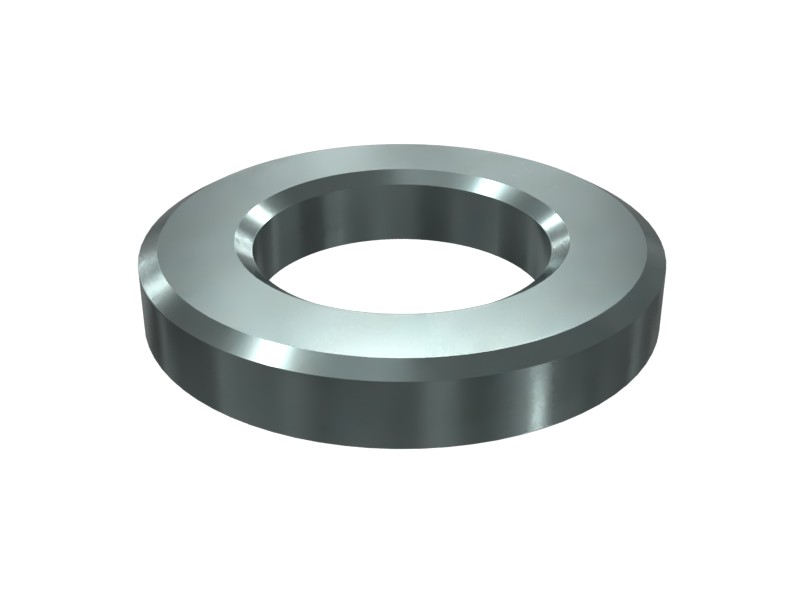

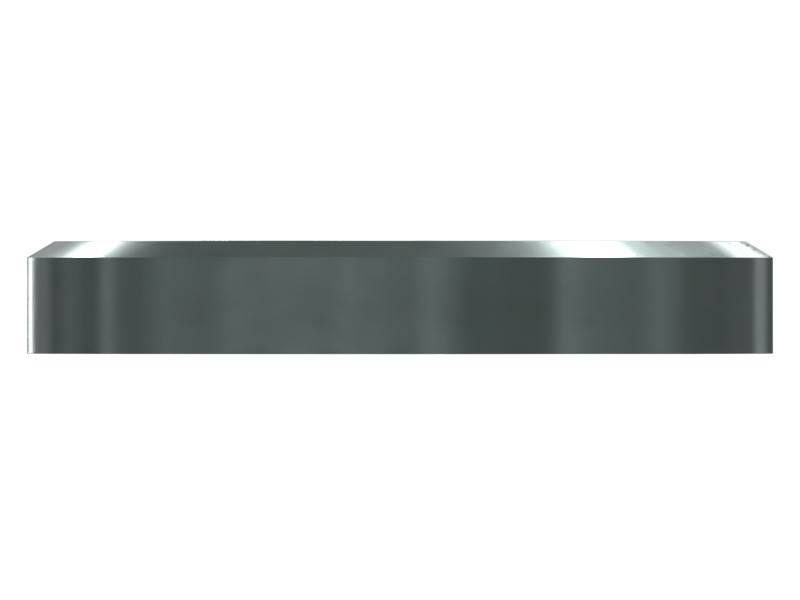

7P-1695 3 mm Thick Soft Washer
Cat® soft washer designed for M10 fasteners prevents the fastener from sinking into the material and distributes the load more evenly.
Description
Cat bolts form a matched system with mating hardened washers and nuts to produce consistent, high clamping force.
Specifications
| Outside Diameter | 19 mm (0.748 in) |
|---|---|
| Inside Diameter | 10.5 mm (0.413 in) |
| Inside Diameter (ID) – 1 | 10.5 mm |
| Outside Diameter (OD) – 2 | 19 mm |
| Thickness – 3 | 3 mm |
| Surface Finish | Brass |
| Coating | Mechanical Zinc |
| Thickness | 3 mm (0.118 in) |
| Fits Bolt Size | M10 mm (3/8 in) |
| Material | Mild Steel |
| Gasket Type | Flat Washer |
Compatible Equipment
- Generator Sets: 3406C, C4.4
- Track Loaders: 824G, 826K, 826H, 834H, 826G, 824C
- Cold Planers: PM620, PM622, PL87, PL83, SE50 VT, SE60 VT XW
- Compactors: CS12, CP11 GC, 825K, 834K, CP56B, CB2.5, CB2.9, CB2.7, CS56B, CS68B, CS74B, CS78B, CS11, CS79B, CB-34B, CW-16, CB-36B, CP12 GC, CS12 GC, 824K, CC-34B, CB-24B, CB16, CS54B, CB-66B, CP54B, CB2.5 GC, CC2.7 GC, CB2.7 GC, CB-64B, CS7, CB13, C-15, CB15, CB10, CS-54B, CS64B
- Engines: C15, C18
- Excavators: 390D L, 329D, 307.5, 305, 3456, 374D L, 303.5E2 CR, 305E2 CR, 305 CR, 434F2, 301.8, 6060, 301.6, 416F2, 637E, 385C, 621G, 432, 428F, 390D, 365C, 6015 FS, 385C L, 637G, 637K, 329D L, 324D L, 302.7CR, 303CR, 303.5CR, 6015, 6015B, 657G, SE60 V XW, M325D L MH, 385C FS, 416E, 345D L, 6018, 328D LCR, 365C L, 324D, 326D L, 3508B
- Asphalt Pavers: AP655F, AP355F, AD45, AD30, AP300F, AP655F L, AP-600D
- Skid Steer Loaders: 242D3, 272D3 XE, 236D3, 259D3, 239D3, 262D, 289D3, 216B3, 236D, 232D, 226B3, 236B3, 262D3, 232D3, 226D3, 299D3 XE, 272D3, 249D3, 246D3, 246D, 246C, 279C, 262C
- Motor Graders: 14
- Wheel Excavators: MD6200
- Dozers: D9, D8, D8T, D9T, D7G, D8R
- Compact Track Loaders: 279D3, 299D3
- Mini Excavators: 308, 310, 306.5, 301.7CR, 302CR, 301.5, 305.5E2, 305E2, 306, 307E2, 308.5, 307
- Wheel Loaders: 910, 966H, 924K, 980G, 938M, 966F, 928HZ, 950H, 938K, 966K, 988H, 986H, RM500B, 962G, 926M, 950G, 980H, 924HZ, 972H, 906K, 924GZ, 988K, 988G, 834, 836, R2900G, R3000H
- Off-Highway Trucks: 794 AC, 796 AC, 7495, 798 AC, 777, 740B, 772G, 770G, 745C, 793, 775G, 735, 740, 789, 785, 745, 740 GC, 773
