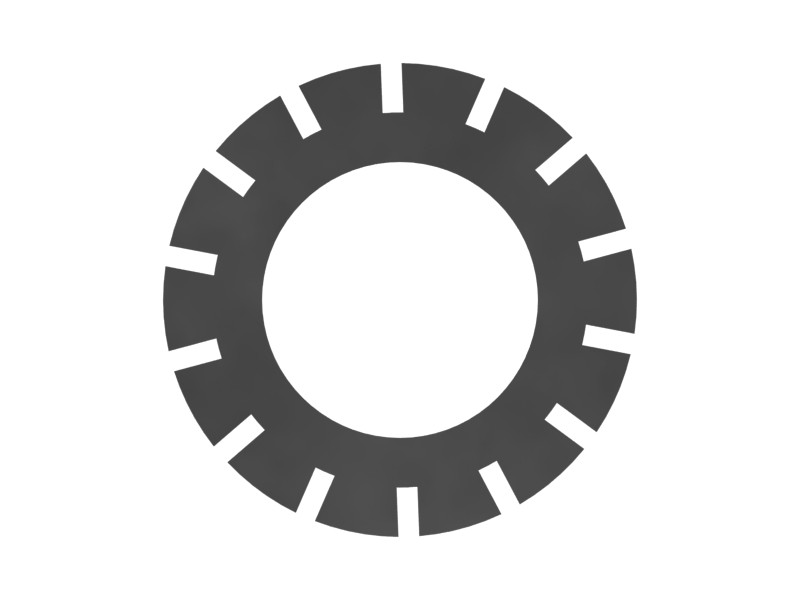

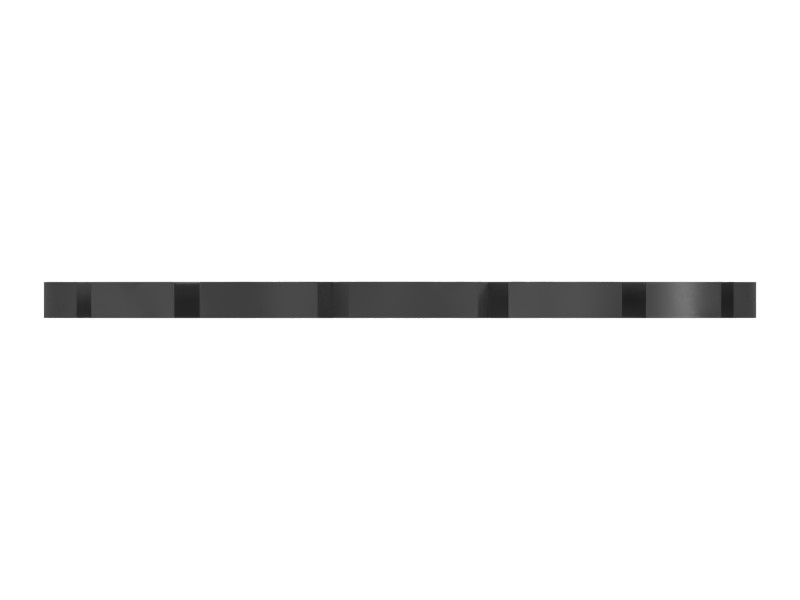

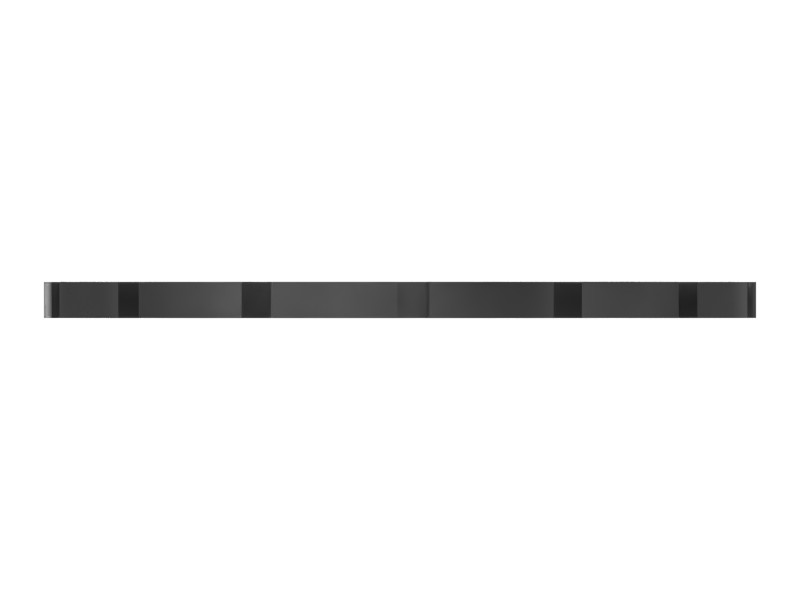

124-7346 External Tooth Lock Washer

Description

External tooth lock washers are commonly used in electrical connections to keep fasteners from loosening due to vibration or other forces. The teeth on the outside diameter of an external tooth lock washer bite into the mating surface, creating friction that helps prevent the fastener from rotating.

Features

Durable.
Resistant to chemical corrosion.
Easy to use and replace.

Applications

External tooth lock washers are used in combination with other types of fasteners, such as screws, nuts, and bolts, to ensure secure, reliable electrical connections.

Specifications

Coating	Zinc
Gasket Type	External Tooth
Outside Diameter	18 mm (0.71 in)
Inside Diameter	10.5 mm (0.413 in)
Material	Steel
Thickness	0.9 mm (0.04 in)

Compatible Equipment

Motor Graders: 16M, 14, 14M
Generator Sets: 3512B, DG30, C4.4, C7.1, C9
Cold Planers: SE60 VT XW, SE50 VT
Wheel Excavators: M315D, M315, M320, M315D2, M322D, M317D2, IT14G, M313D, M320D2
Compactors: CB-534D, CB-564D, CB-434D
Engines: C15, C6.6, C175-16, C18
Dozers: D7R II, D6T, D9R, D6R, D6R III, D11R, D8R, D10R
Excavators: 320C, 315C, 325C, 330C, 312C L, 312C, 325C L, 330C L, 6020B, 345B, 6060, 385B, 350 L, 365B, SE60 V XW, 320B, 311B, 320C L, 325B, 330B, 325B L, 365B L, 315F LCR, 6040
Wheel Loaders: 928G, 928HZ, 924GZ, 924HZ, 910, R2900G, R1300G, R1600H, R3000H, R1700G
Off-Highway Trucks: 785D, 740, 793D, 797F, 725, 777D, 771D, 735, 730, 773D, 7495
Asphalt Pavers: AP655F, AP655F L, AD63, AD30

Machine Model	14, 14M, 16M, 311B, 312C, 312C L, 315C, 315F LCR, 320B, 320C, 320C L, 325B, 325B L, 325C, 325C L, 330B, 330C, 330C L, 345B, 350 L, 3512B, 365B, 365B L, 385B, 6020B, 6040, 6060, 725, 730, 735, 740, 7495, 771D, 773D, 777D, 785D, 793D, 797F, 910, 924GZ, 924HZ, 928G, 928HZ, AD30, AD63, AP655F, AP655F L, C15, C175-16, C18, C4.4, C6.6, C7.1, C9, CB-434D, CB-534D, CB-564D, D10R, D11R, D6R, D6R III, D6T, D7R II, D8R, D9R, DG30, IT14G, M313D, M315, M315D, M315D2, M317D2, M320, M320D2, M322D, R1300G, R1600H, R1700G, R2900G, R3000H, SE50 VT, SE60 V XW, SE60 VT XW
Equipment Type	Excavators, Wheel Excavators, Wheel Loaders, Dozers, Motor Graders, Off-Highway Trucks, Compactors, Asphalt Pavers, Cold Planers, Engines, Generator Sets
Part Source	Genuine OEM

Machine Model

14, 14M, 16M, 311B, 312C, 312C L, 315C, 315F LCR, 320B, 320C, 320C L, 325B, 325B L, 325C, 325C L, 330B, 330C, 330C L, 345B, 350 L, 3512B, 365B, 365B L, 385B, 6020B, 6040, 6060, 725, 730, 735, 740, 7495, 771D, 773D, 777D, 785D, 793D, 797F, 910, 924GZ, 924HZ, 928G, 928HZ, AD30, AD63, AP655F, AP655F L, C15, C175-16, C18, C4.4, C6.6, C7.1, C9, CB-434D, CB-534D, CB-564D, D10R, D11R, D6R, D6R III, D6T, D7R II, D8R, D9R, DG30, IT14G, M313D, M315, M315D, M315D2, M317D2, M320, M320D2, M322D, R1300G, R1600H, R1700G, R2900G, R3000H, SE50 VT, SE60 V XW, SE60 VT XW

Equipment Type

Excavators, Wheel Excavators, Wheel Loaders, Dozers, Motor Graders, Off-Highway Trucks, Compactors, Asphalt Pavers, Cold Planers, Engines, Generator Sets

Part Source

Genuine OEM
