Description

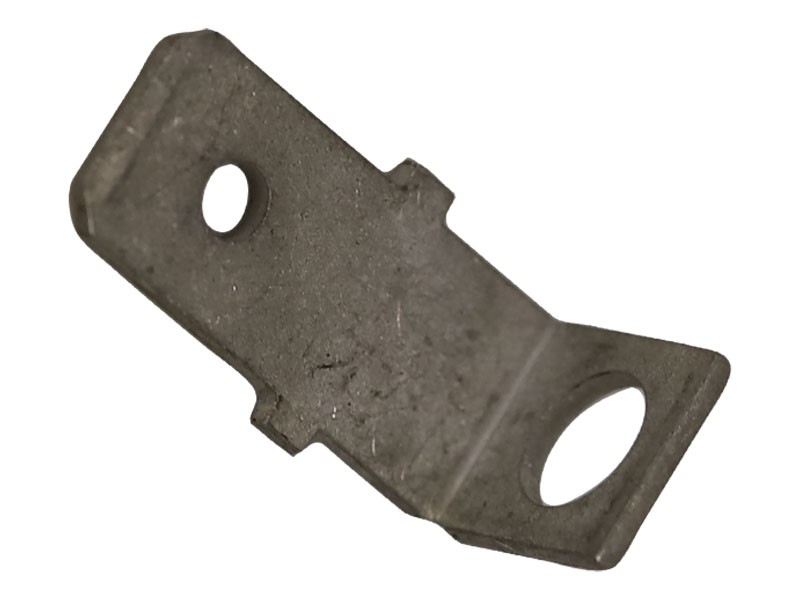

Cat male blade terminals are used in electrical connectors. The Cat male blade terminal is inserted into the Cat female terminal on the mating connector to make an electrical connection.
Features
- 90° Male Blade Terminal
- Terminal Tab Width: 6.3 mm (0.24 in)
- Tin-Plated Brass
- Used with 6-32 mounting screws
- Easy to connect and disconnect
Applications
Cat blade terminals provide a reliable mating connection between wires or between a wire and equipment. Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Material | Alloy Brass |
|---|---|
| Overall Length | 16.2 mm (0.63 in) |
| Overall Width | 7.82 mm (0.30 in) |
| Overall Height | 8 mm (0.31 in) |
Compatible Equipment
- Motor Graders: 140G
- Generator Sets: G3516
- Track Loaders: 824C
- Wheel Loaders: 992C
- Off-Highway Trucks: 773E, 785, 771D, 789, 777D, 773D, 793
Additional information
| Machine Model | 140G, 771D, 773D, 773E, 777D, 785, 789, 793, 824C, 992C, G3516 |
|---|---|
| Equipment Type | Wheel Loaders, Track Loaders, Motor Graders, Off-Highway Trucks, Generator Sets |
| Part Source | Genuine OEM |
