Description

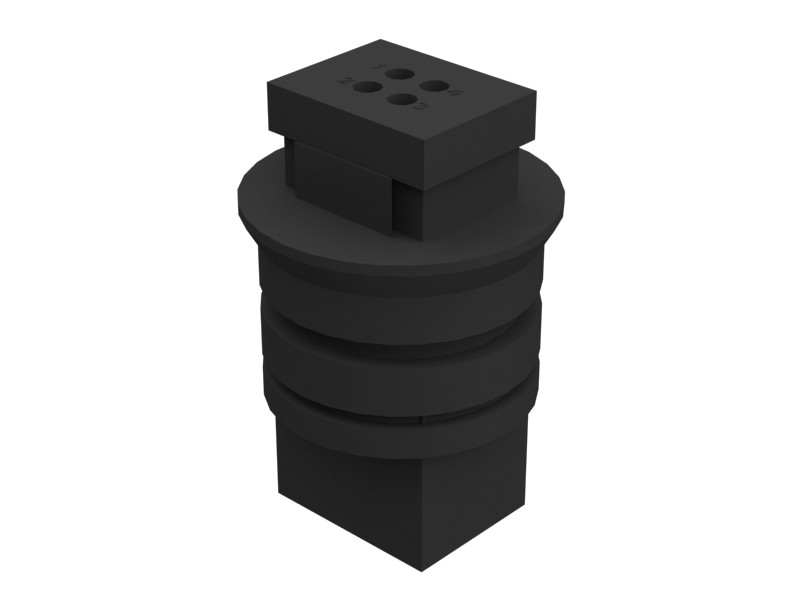

Cat receptacle group connectors secure wiring connections based on pin count and locking mechanism.
Features
- Nylon receptacle
- 14-20 AWG
- Number of Contacts: 4
- Body Color: Black
- RoHS compliant
Applications
Receptacle group connectors serve as electrical connectors in wiring harnesses. Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Outside Diameter | 32 mm (1.26 in) |
|---|---|
| Length | 47.4 mm (1.87 in) |
| Material | Nylon, 6, 6/12, 6/6 Plastic |
Compatible Equipment
- Generator Sets: 3512B, 3516C, C4.4, C7.1, C4.4DE88E0
- Track Loaders: 963K, 826K, 953D, 953K, 953, 963D, 963, 982
- Cold Planers: PL61, PL83, PM620, PL87, PM622
- Compactors: 825K, 824K, 834K, C13B, CP56B, CS74B, CS56B, CS68B, CS78B, CS-56, CW-34, CS12, CS-54, CS79B, CB-44B, 816, 815, 814, CS-54B
- Engines: C15, C6.6, C32, C13, C175-16, C18
- Excavators: 374F, 390F L, 326D2 L, 329D2, 326D2, 329D2 L, 330, 320D, 349F L, 374, 637K, 637G, 349E L, 390F, 352, 621H, 349E, 3512C, 349, 349E L VG, 621K, 352F, 637E, 3516E, 374F L, 326GC, 320, 323D2, 323D2 L, 330D2, 323GC, 330D2 L, 336 GC, 323D L, 320D GC, 320D L, 326, 323, 3508B, 355, 395, 3516B, 326 GC, 333 GC, 333, 330 GC, 323 GX
- Asphalt Pavers: AP655F, AP655F L, AD45, AP-600D
- Motor Graders: 120, 140 GC, 18, 16M3, 16, 14
- Wheel Excavators: M320D2, IT14G, M313D, M322D, M315D, MD6200, M315D2, M320, M317D2
- Dozers: D9L, D5N, D6R, D6K2, D6N, D6M, D5K XL, D7R, D5M, D8T, D8L, D9R, D10R, D10N, D11, D9N, D5K LGP, D8, D9T, D4, D9
- Wheel Loaders: 924K, 928HZ, 950L, 988K, 836, 938K, 950 GC, 924HZ, 962L, R1700K, 988F, 992C, 992D, RM500B, 834, 980, 980L, R2900 XE
- Off-Highway Trucks: 773D, 730, 796 AC, 773E, 772G, 794 AC, 793F, 735, 770G, 740B, 740, 798 AC, 771D, 745C, 740 GC, 797F, 745, 725, 773, 793
