Description

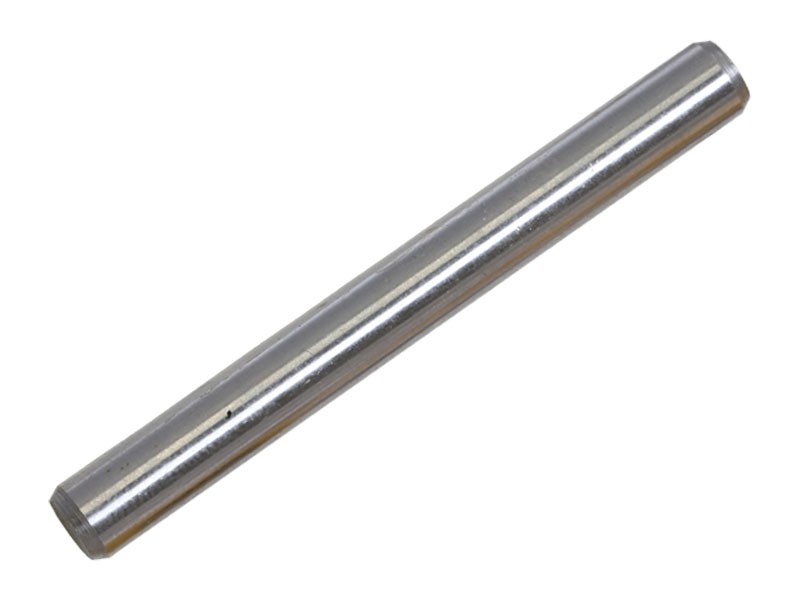

A dowel pin is a precision-engineered cylindrical metal component with tight tolerances that ensure accurate alignment and positioning within corresponding holes. It precisely aligns and holds the cover in place. They are inserted into holes in the cover and the frame or base to ensure a tight fit and prevent any lateral or rotational movement.
Attributes
- Built to exact specifications for durability and reliability
- Ensures proper fit and reliable performance
- Withstands high pressure without deforming or breaking
Applications
Dowel pins ensure precise alignment, distribute loads evenly, resist vibration and simplify assembly.
Specifications
| Material | Alloy Mixed: Metal |
|---|---|
| Pin Type | Solid |
| Pin Outside Diameter | 6.19 mm (0.244 in) |
| Pin Length | 57 mm (2.244 in) |
Compatible Equipment
- Generator Sets: G3516C, G3516, 3516C, 3512B, 3512E, C4.4
- Track Loaders: 994K, 995
- Dozers: D11N, D11R
- Excavators: 3512C, 3508B, 3516E, 3516B, 6060
- Off-Highway Trucks: 785D, 789D, 785, 777D, 777, 789, 793D, 793
