Description

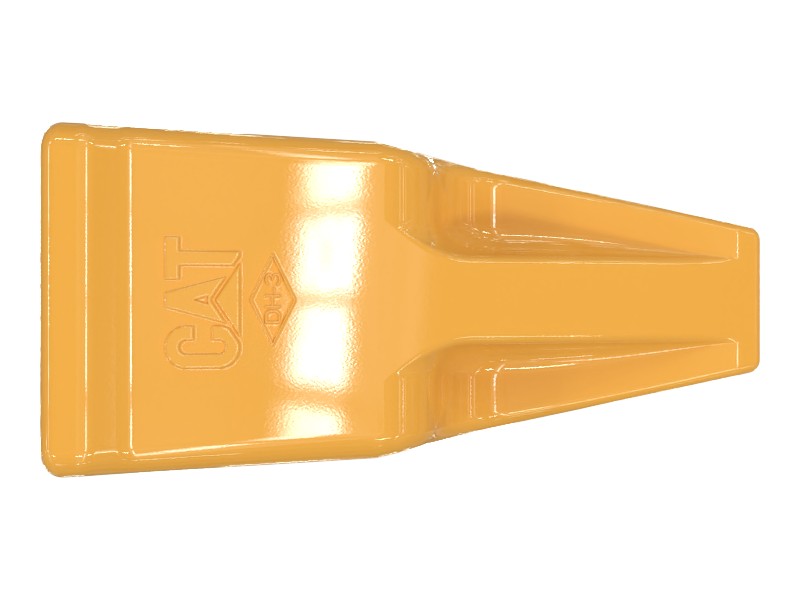

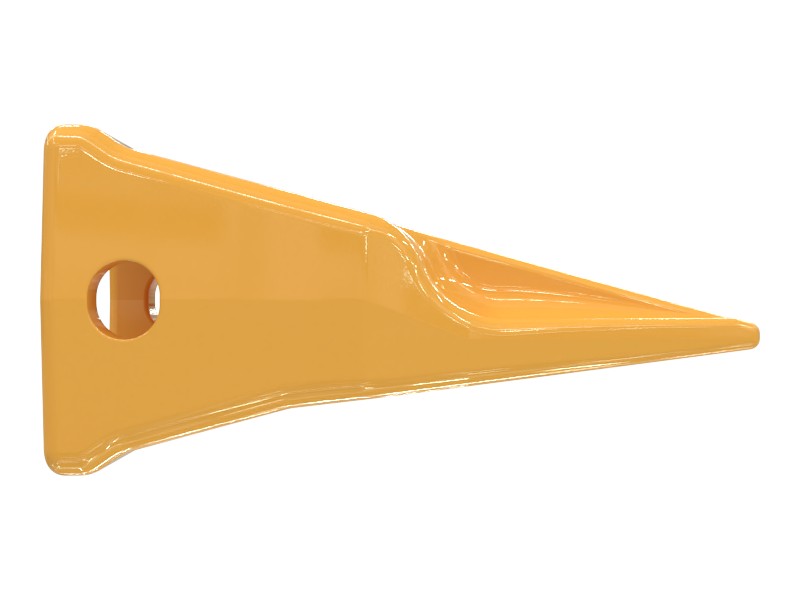

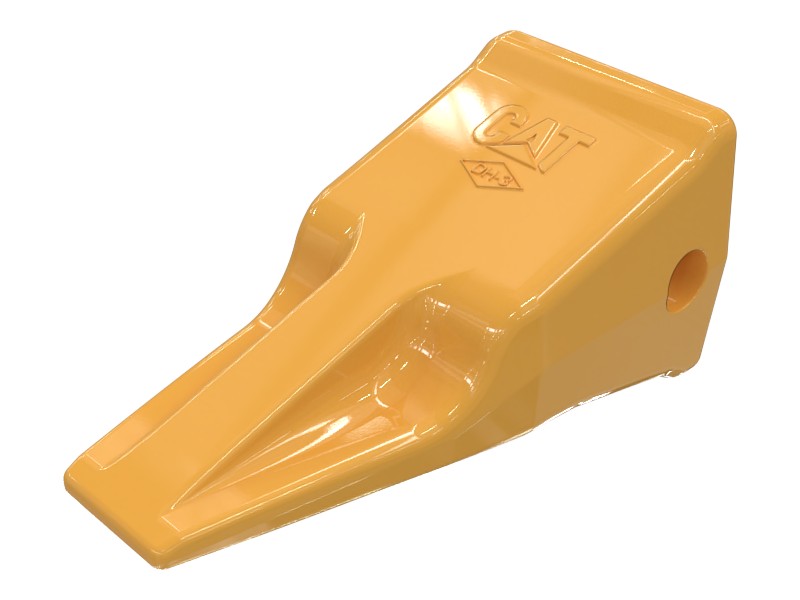

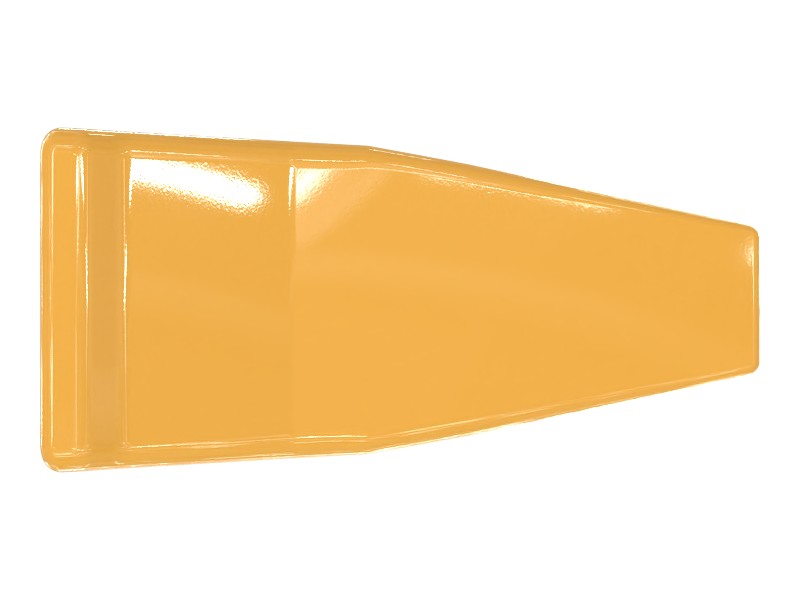

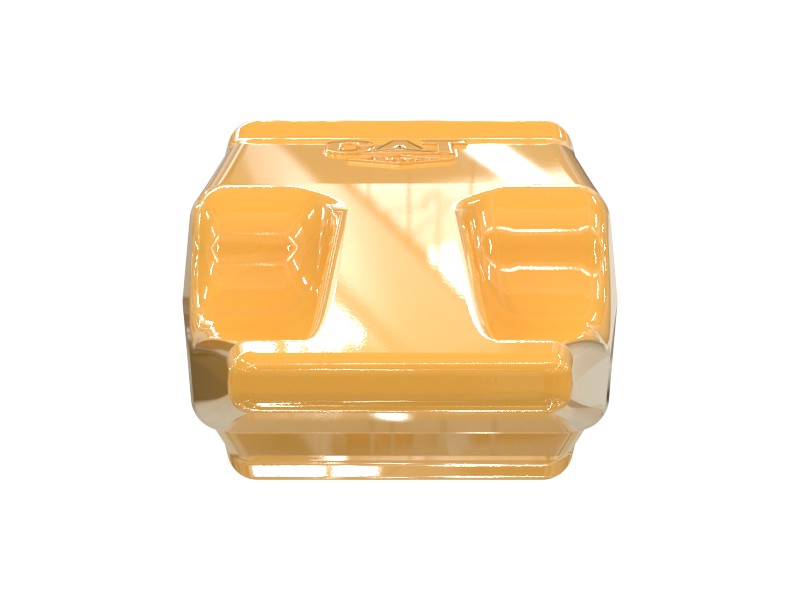

Cat® J Series tips offer unmatched manufacturing precision to protect your machine's bucket from damage. Our ground engaging tools (GET) are designed around the inherent characteristics of your Cat equipment to deliver consistent, superior protection.
With an industry-standard side-retained design, Genuine Cat bucket tips can be used in a wide variety of applications, greatly increasing equipment versatility. The standard pin and retainer system allows quick installation and removal. You can also convert to our innovative hammerless J Series CapSure™ system to make the job easier.
Penetration tips have a 60% smaller leading edge cross-sectional area, providing exceptional penetration in highly compacted material. The single center rib self-sharpens as it wears, extending wear life and reducing downtime. Penetration tips are also available with Abrasion Resistant Material (ARM). Our tips are durable and cast from steel that holds its hardness and offers long wear life, so your machine delivers the performance you need. Always choose Genuine Cat bucket protection to protect your investment.
Features
- 60% smaller leading edge cross-sectional area
- Single center rib self-sharpens as it wears
Applications
- Highly compacted material
Specifications
| Wear or Durability | Standard |
|---|---|
| End Bit Length | 388 mm |
| Shape | Penetration |
| Overall Length | 388 mm (15.276 in) |
| Rear Height | 186 mm (7.323 in) |
| Front Width | 82 mm (3.228 in) |
| Rear Width | 194 mm (7.638 in) |
| Size | J600 |
| End Bit Size | J600 |
| Series | J Series |
Compatible Equipment
- Excavators: 385B, 365C, 385C L, 385C, 365B, 365C L, 345C L, 365B L, 374D L
