Description

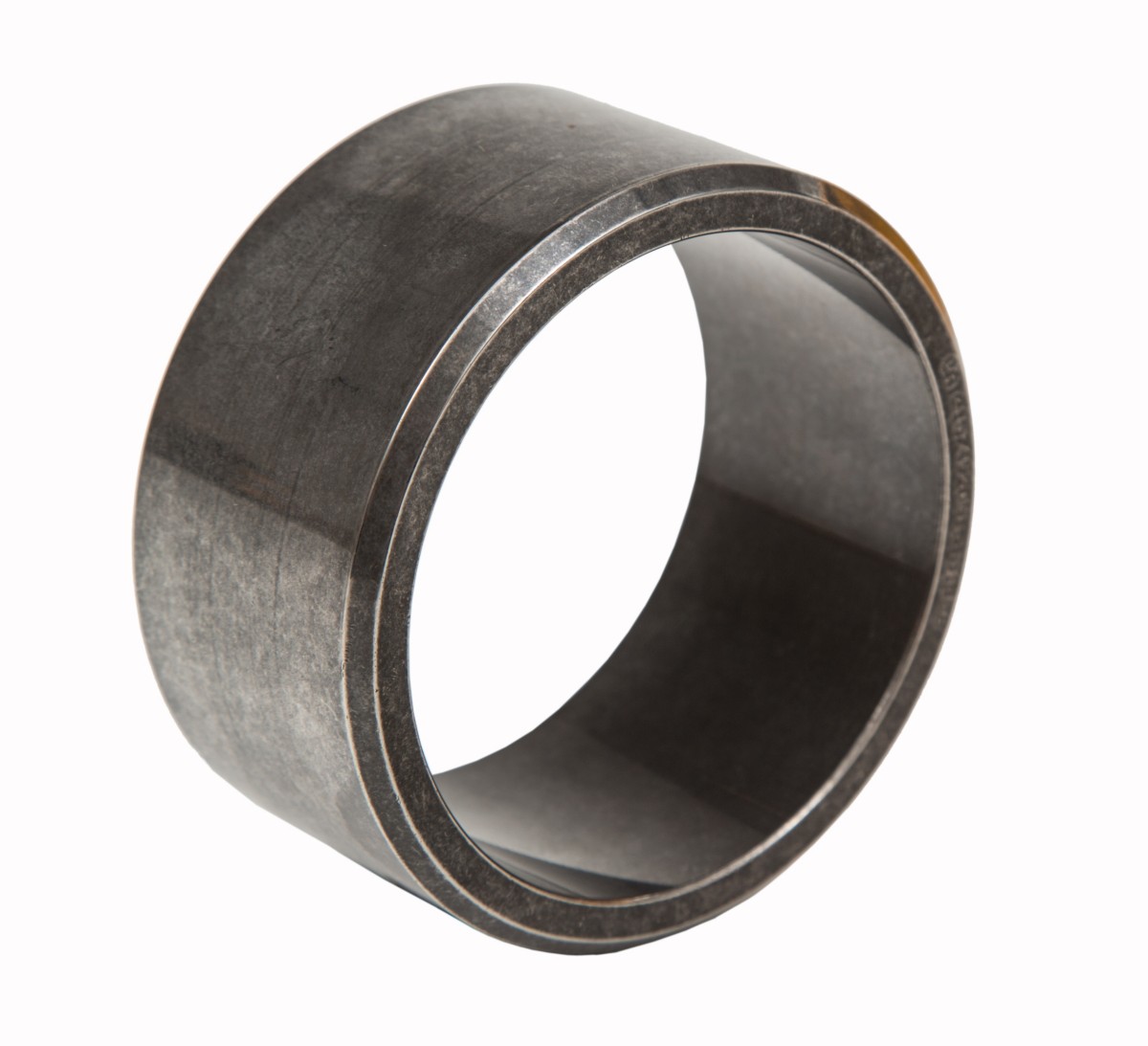

Cat® machine linkage sleeve bearings support pivoting between the frame linkage and work tools. They are most commonly used in machine booms and buckets. Genuine Cat pins and sleeve bearings are specially designed to work together as a system to deliver the performance you expect. Caterpillar design engineers match each part with the right combination of size, material, surface treatment and manufacturing process so it works effectively and wears in step with all other adjacent and dependent parts.
Features
Cat heavy-duty sleeve bearings are made from advanced steel and hardened for exceptional hardness and wear life. They work as a system on specific Cat machines and are tested and proven in the world's toughest applications. These bearings offer a lower overall cost, outstanding strength and fatigue life and superior wear resistance, while providing exceptional protection against wear, even under high-load conditions.
Recommended Applications:
Cat sleeve bearings are designed for situations that require durability and load strength to extend bearing life. Cat sleeve bearings are the first choice for maximizing performance in demanding applications. They are designed to match mating pins.
Specifications
| Length | 17.5 mm |
|---|---|
| Description | Straight Sleeve Bearing – SRK |
| Remarks | Radial Hole: No |
| Approximate Outside Diameter | 21 mm |
| Internal Groove | None |
| External Groove | None |
| Approximate Overall Length | 18 mm |
| Cross Hole | None |
| Approximate Inside Diameter | 16 mm |
| Ferrule Outside Diameter | 21.202 mm (0.835 in) |
| Unique Features | No |
| Ferrule Inside Diameter | 15.836 mm (0.623 in) |
| Inside Diameter | 16 mm (0.62 in) |
| Outside Diameter | 20 mm (0.8 in) |
| Overall Length | 17.5 mm (0.69 in) |
Compatible Equipment
- Dozers: D10N, D9R, D8L, D9N
- Excavators: 637E
- Wheel Loaders: 836, 992C, 992D, 988F
