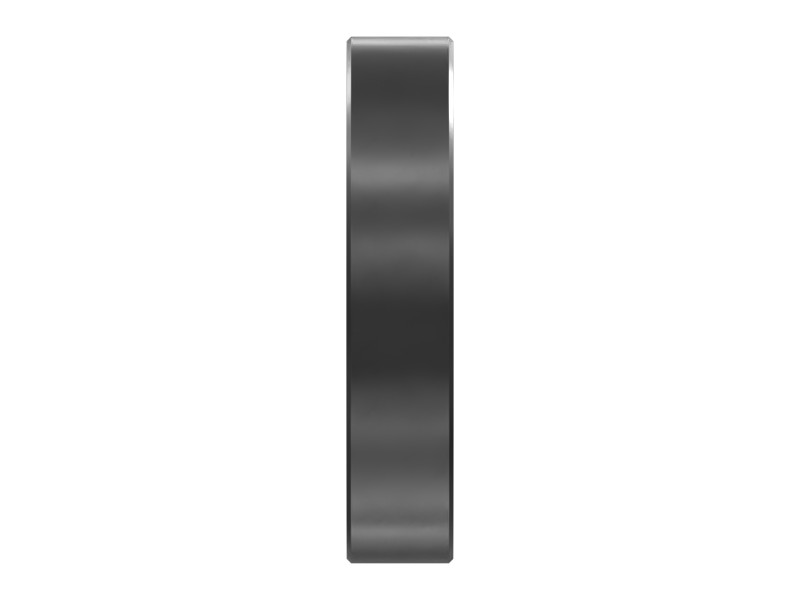

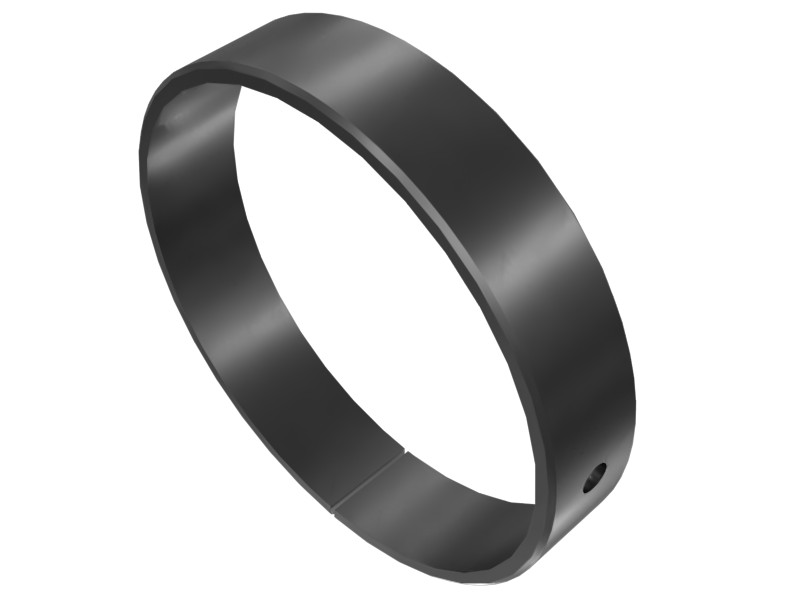

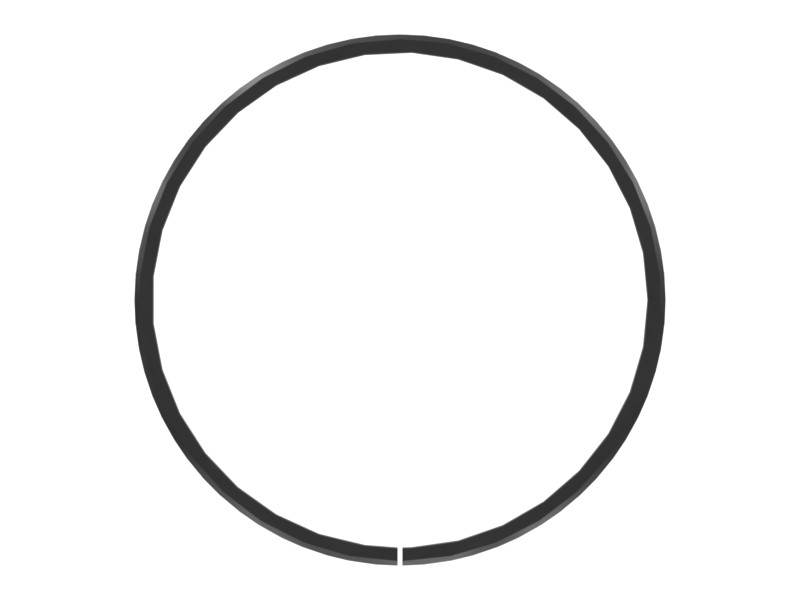

7E-6003 79.258 mm OD Sleeve Bearing
Cat® 79.258 mm OD 16 mm long sleeve bearing for fuel injection pumps
Description
Cat® sleeve bearings and bushings support rotating, oscillating and linear motion between machine systems. These bearings may include lubrication features such as internal and external grooves and cross holes for continuous, effective lubrication of components.
Specifications
| Ferrule Inside Diameter | 74.204 mm (2.921 in) |
|---|---|
| Unique Features | No |
| Ferrule Outside Diameter | 79.258 mm (3.12 in) |
| Type | Straight Sleeve |
| Material | Steel-backed Bronze |
| Inside Diameter | 74 mm (2.92 in) |
| Outside Diameter | 79 mm (3.12 in) |
| Overall Length | 16 mm (0.63 in) |
| Internal Groove | None |
| External Groove | None |
| Cross Hole | Yes |
Compatible Equipment
- Generator Sets: 3406B, 3406C
- Track Loaders: 824C, 826G, 824G
- Dozers: D8N, D8R
- Wheel Loaders: 980G
Additional information
| Machine Model | |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
