Description
Cat® spring parts come in a variety of strengths and sizes to suit specific applications. Our springs are specially designed to deliver excellent performance in a wide range of applications, achieving optimal rates and loads in the assembly. Based on internal testing and performance history under specific application conditions, you can count on Cat springs to provide consistent assembly loads for excellent machine reliability and uptime. Cat springs are manufactured to precise specifications to ensure durability, reliability and high productivity over the life of the machine. You can count on Cat springs to help you build, maintain or repair. No one else knows your equipment the way we do – trust Cat.
Features
- Springs meet or exceed current standards and material grades.
- RoHS compliant
- Performance-based
Applications
- Machine and shop applications

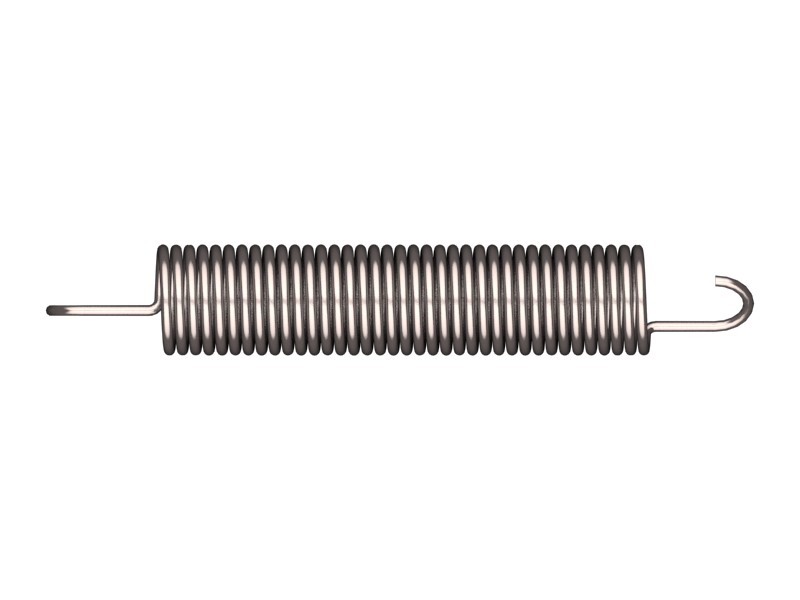

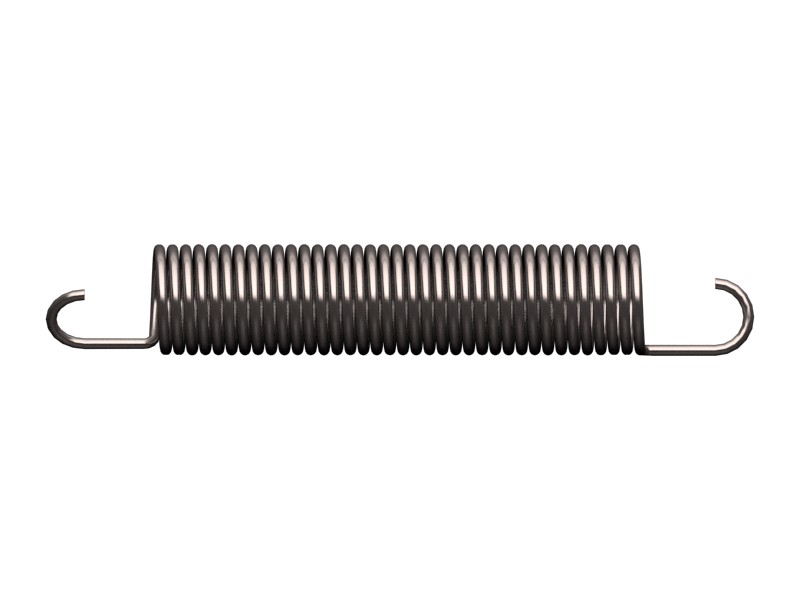

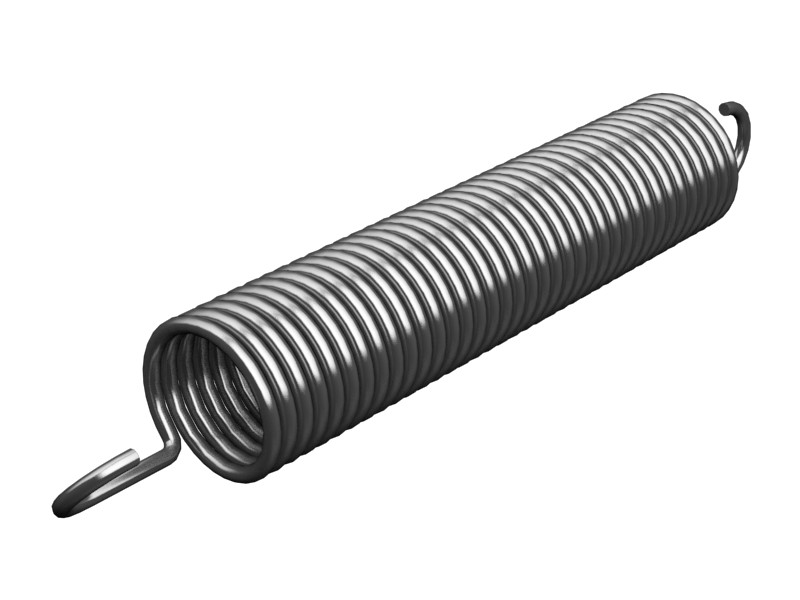

Specifications
| Material | Alloy Zinc |
|---|---|
| Length – B | 5 1/4 in |
| Spring Type | Tension Type |
| Coil Type | Machine Ring |
| Coating | Zinc Phosphate |
| Outside Diameter (OD) – A | 3/4 in |
| Remarks | Initial Tension: 24.474, Assembled Length: 158.75, Load at Assembled Length: 53.754, Spring Rate NMM: 1.153, Total Coils: 29.75 |

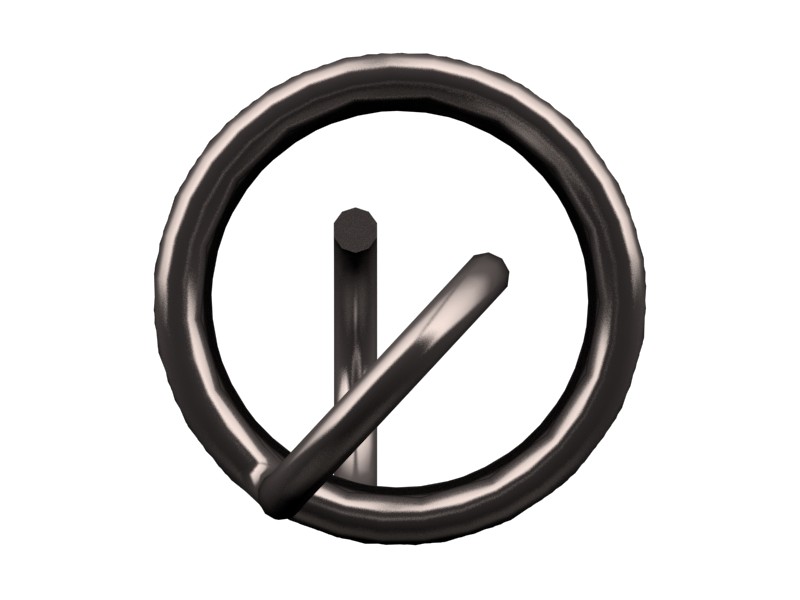

| End Orientation | 90° |
| Wire Diameter – C | 2.032 in |
| Material Description | Steel |
Compatible Equipment
- Motor Graders: 140G
- Dozers: D8L
- Wheel Loaders: 992C, R1700G
- Asphalt Pavers: AD45, AD63
Additional information
| Machine Model | |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
