Description
Cat® fastener parts are designed for specific applications based on size, strength, clamp load and past performance, information other manufacturers do not have. They are carefully selected to last until machine rebuild or end of life. Non-Cat hardware and fasteners may appear to fit your machine, but no one else knows your equipment the way we do.

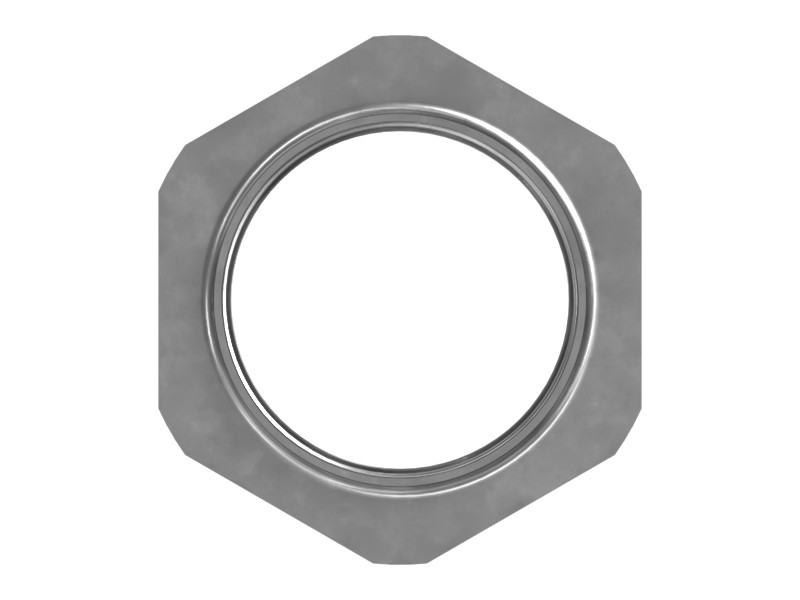

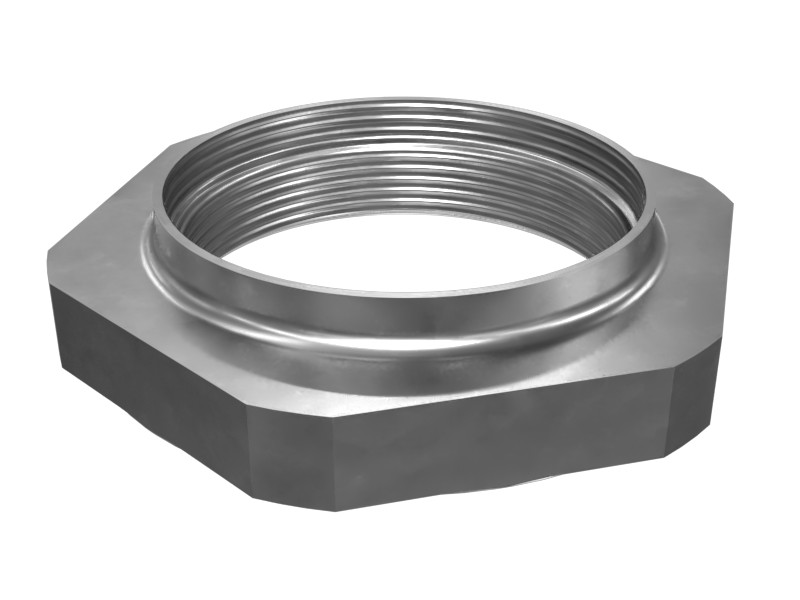

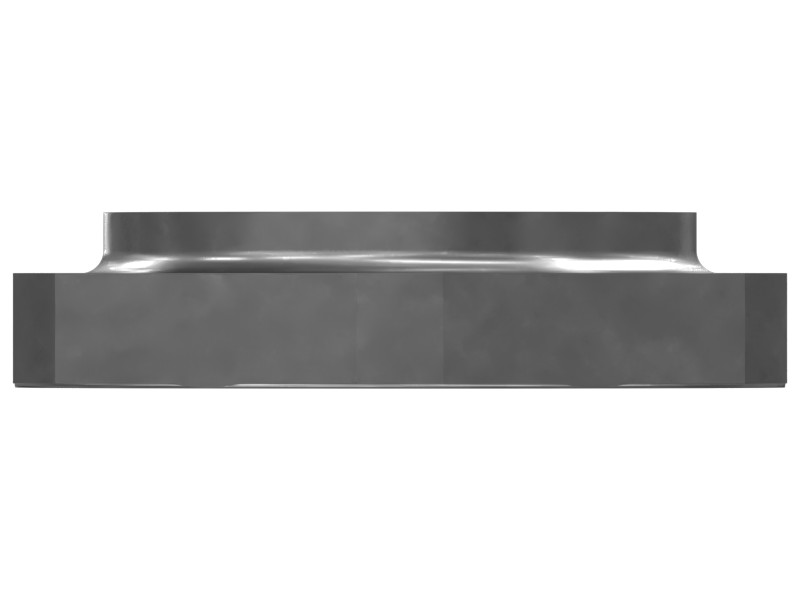

These nuts are bearing locknuts that can be locked in place so that they do not back off.
Features
- Cat fasteners are manufactured to precise specifications for durability, reliability and high efficiency
- Strength and Quality – Fasteners meet or exceed ISO, ASTM, ASME and SAE requirements.
- Cat bolts, nuts and washers are specifically designed to work together as a system to maximize clamping force.
- Coating meets the special requirements of different applications (RoHS compliant).
Applications
Cat bolts form a high-performance system with mating hardened washers and nuts to produce consistent, high clamping force. You can trust Cat fasteners to help you build, maintain or rebuild in most machine and shop applications worldwide.
Specifications
| Drive Chain | 101.25 mm (3.986 in) |
|---|---|
| Thread Size (Diameter × Pitch) | 2.933×12 mm |
| Material | Carbon Steel |
| Coating | Oil with Corrosion Inhibitor |
| Class or Grade | SAE J995 Grade 5 (120 ksi) |
| Hole Thread Pitch | 12 |
| Thread Size | 3.000 mm (0.115 in) |
| Material Description | ISO Class 8 or SAE Grade 5 Equivalent |
| Thread Direction | RH |
| Thickness | 23 mm (0.906 in) |
| Nut Model | Hex |
| Thread Size (in – TPI) | 3/1-12 in |
Compatible Equipment
- Motor Graders: 16H
- Track Loaders: 824G, 826K, 826G, 824C, 826H, 982, 972
- Compactors: 824K, 825K
- Wheel Loaders: 982M, 972M, 966M, 980M, 966 GC, 986K
- Asphalt Pavers: AD30
Additional information
| Machine Model | 16H, 824C, 824G, 824K, 825K, 826G, 826H, 826K, 966 GC, 966M, 972, 972M, 980M, 982, 982M, 986K, AD30 |
|---|---|
| Equipment Type | Wheel Loaders, Track Loaders, Motor Graders, Compactors, Asphalt Pavers |
| Part Source | Genuine OEM |
